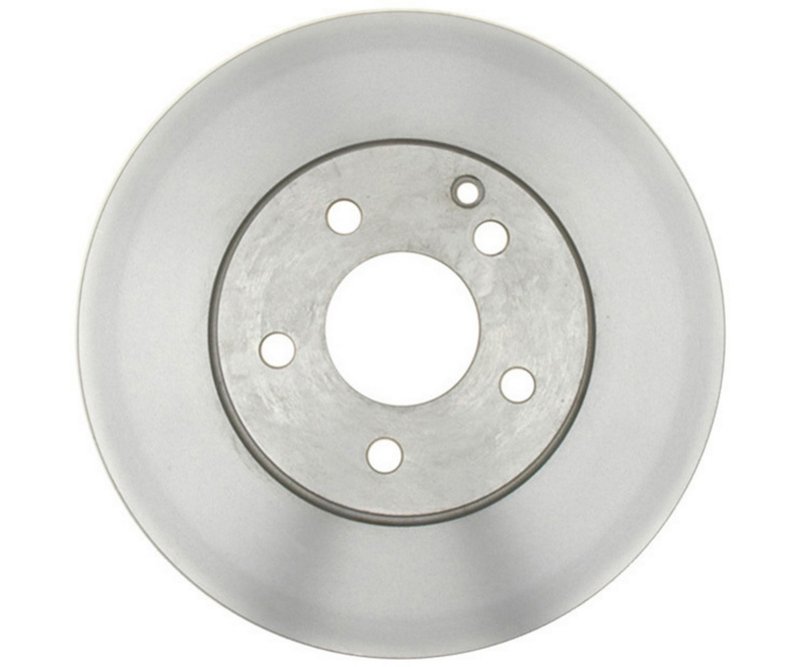

Raybestos 980222 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Street Performance Rotor

The Raybestos Specialty - Street Performance disc brake rotor 980222 is engineered for Mercedes-Benz E320, E350, and E500 models. Designed to meet specific thickness and dimension requirements, this vented rotor supports reliable braking performance under street driving conditions.

• Compatible with Mercedes-Benz E320, E350, and E500
• Part number 980222 for precise identification
• Vented disc brake rotor for improved heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm)
• Discard thickness at 1.000 inch (25.400 mm)
• Overall height of 2.146 inches (54.500 mm)
• Outside diameter measuring 11.634 inches (295.500 mm)
• Five mounting bolt holes with 112 mm bolt circle diameter
• Conventional rotor type with 5 stud/lug holes

Detailed Product Specifications

This Raybestos disc brake rotor 980222 is a vented, conventional type rotor designed specifically for Mercedes-Benz E320, E350, and E500 vehicles. The rotor features a nominal thickness of 1.102 inches (28.000 mm) and a discard thickness of 1.000 inch (25.400 mm), ensuring it meets wear limits for safe operation. Its overall height is 2.146 inches (54.500 mm), and the outside diameter is 11.634 inches (295.500 mm), matching factory specifications for proper fitment. The rotor includes five mounting bolt holes arranged on a 112 mm bolt circle diameter, compatible with the vehicle’s hub assembly. The center hole diameter is 2.638 inches (67.000 mm), allowing for accurate centering during installation.

Specialty - Street Performance Product Line

The Raybestos Specialty - Street Performance line focuses on delivering rotors that balance everyday street driving demands with enhanced performance characteristics. This product line is designed to provide consistent braking response and durability for street-driven vehicles like the Mercedes-Benz E320, E350, and E500. The vented rotor design helps dissipate heat effectively, reducing the risk of brake fade during extended use.

Applications and Problem Solving

• Replacement for worn or warped rotors on Mercedes-Benz E320, E350, and E500
• Addresses brake pulsation caused by uneven rotor thickness
• Improves heat dissipation to reduce brake fade during street driving
• Restores proper rotor thickness for safe braking performance
• Compatible with vehicles requiring a 5-bolt mounting pattern and 112 mm bolt circle diameter

Installation Notes and Tips

• Verify rotor dimensions against vehicle specifications before installation
• Ensure mounting surfaces are clean and free of debris for proper rotor seating
• Torque mounting bolts to manufacturer-recommended specifications
• Inspect brake pads and replace if worn to maintain optimal braking
• Check for proper rotor runout to avoid vibration issues

Quality Assurance and Warranty

Raybestos rotors, including part number 980222, are manufactured to meet or exceed OEM standards for fit, form, and function. The Specialty - Street Performance line undergoes rigorous quality control to ensure consistent thickness and dimensional accuracy. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or Raybestos directly for warranty terms applicable to this rotor.
