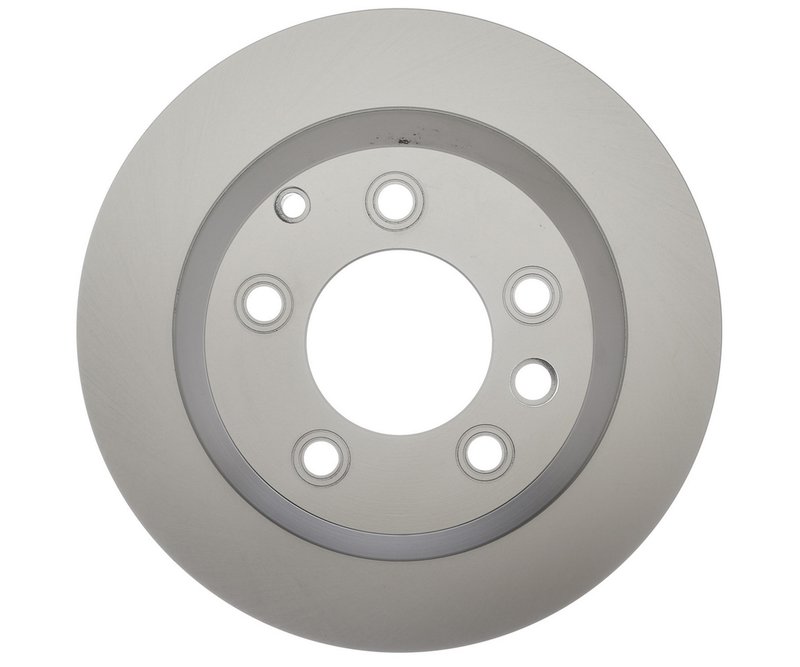

Raybestos 980230FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980230FZN is engineered for reliable braking performance on select Audi, Porsche, and Volkswagen models. Designed as a vented, drum-in-hat type rotor, it offers precise fitment for vehicles like the Audi Q7, Porsche Cayenne, and Volkswagen Touareg.

• Vented disc brake rotor with drum-in-hat design
• Overall height: 2.898 inches (73.6 mm)
• Outside diameter: 12.984 inches (329.8 mm)
• Mounting bolt hole quantity: 5 with 130 mm bolt circle diameter
• Center hole diameter: 3.347 inches (85 mm)
• Nominal thickness: 1.102 inches (28 mm)
• Discard thickness: 1.024 inches (26 mm)
• Compatible with Audi Q7, Porsche Cayenne, Volkswagen Touareg

Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line by Raybestos features rotors with a protective coating designed to resist corrosion and extend service life. This coating helps maintain rotor integrity and appearance over time, making it suitable for vehicles exposed to varying weather conditions. The 980230FZN rotor benefits from this coating, ensuring consistent braking performance and durability for premium SUVs like the Audi Q7, Porsche Cayenne, and Volkswagen Touareg.

Technical Specifications and Fitment

This disc brake rotor is vented to improve heat dissipation during braking, reducing the risk of brake fade. The drum-in-hat design integrates a parking brake drum within the rotor, compatible with vehicles requiring this configuration. With a 5-bolt mounting pattern and a 130 mm bolt circle diameter, the rotor fits securely on the specified models. The nominal thickness of 1.102 inches (28 mm) and discard thickness of 1.024 inches (26 mm) define the rotor’s usable lifespan before replacement is necessary.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Audi Q7, Porsche Cayenne, Volkswagen Touareg
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking consistency and pedal feel in vented rotor applications
• Prevents corrosion-related rotor degradation with coated surface
• Supports parking brake functionality with integrated drum-in-hat design

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.024 inches) before installation
• Clean mounting surfaces and check bolt hole alignment for proper fit
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Follow vehicle-specific service manual for parking brake adjustment if applicable

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 980230FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer rotor life. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary by region and application.
