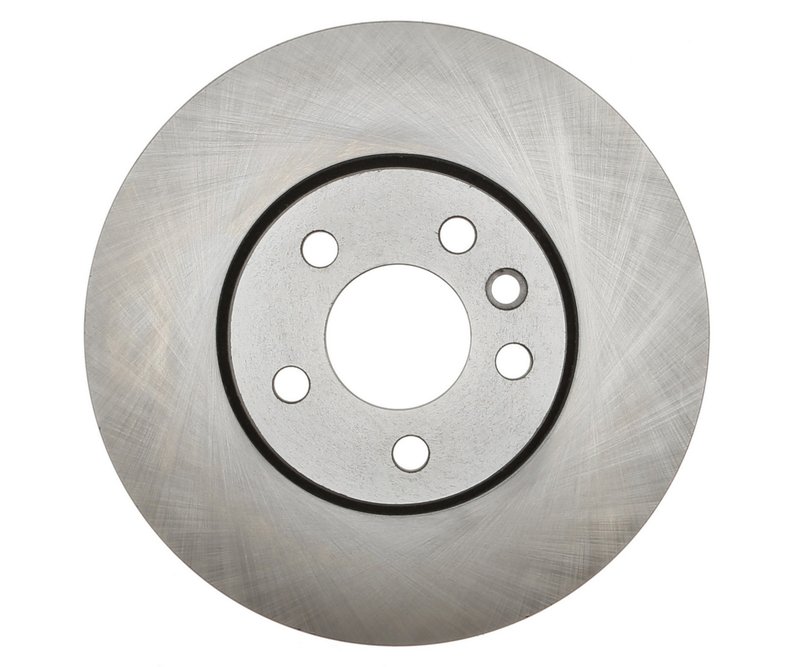

Raybestos 980267R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Raybestos R-Line

Raybestos 980267R Disc Brake Rotor - Front

Brand Raybestos 980267R
Position Front
Discard Thickness 0.866
Discard Thickness 22.000
Nominal Thickness 1.024
Nominal Thickness 26.000
Overall Height 2.213
Overall Height 56.200
Outside Diameter 12.323
Outside Diameter 313.000
Mounting Bolt Hole Quantity 5
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.683
Center Hole Diameter 68.150
Mounting Bolt Hole Circle Diameter 112.000
Mounting Bolt Hole Circle Diameter 4.409
Mounting Bolt Hole Diameter 112.000
Mounting Bolt Hole Diameter 4.409
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Raybestos R-Line
Fits Volkswagen · 11 vehicles

Vented design. Helps promote airflow for more consistent braking performance.

Conventional rotor. A straightforward disc brake replacement for everyday service.

R-Line series. Raybestos replacement line focused on dependable brake parts.

Cross-references Centric Parts 121.33074, Centric Parts 125.33074 and Centric Parts 320.33074H for the same application. See all 30.

$82.76Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $82.76
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor

The Raybestos R-Line 980267R is a front disc brake rotor built for specific Volkswagen applications that require a vented, conventional rotor design. With a 313 mm outside diameter and 26.000 mm nominal thickness, it matches the dimensional needs of the listed EuroVan and Sharan fitments for consistent brake service.

Raybestos R-Line focuses on direct-fit replacement brake components for everyday repair work. This rotor is engineered around the listed OE-style dimensions and bolt pattern, making it a practical choice for Volkswagen EuroVan and Volkswagen Sharan front brake maintenance.

Key Features

  • Part number: 980267R
  • Front disc brake rotor for listed Volkswagen applications
  • Vented rotor construction
  • Conventional rotor design
  • Outside diameter: 313.000 mm (12.323 in.)
  • Nominal thickness: 26.000 mm (1.024 in.)
  • Discard thickness: 22.000 mm (0.866 in.)
  • 5-lug / 5-bolt mounting pattern
  • Center hole diameter: 68.150 mm (2.683 in.)
  • Bolt circle diameter: 112.000 mm (4.409 in.)

Detailed Description

Raybestos 980267R is a vented front brake rotor with a 56.200 mm overall height and a 112 mm bolt circle, built to match the fitment requirements listed for 2000-2001 Volkswagen EuroVan, 2002-2003 Volkswagen EuroVan, and 2002-2008 Volkswagen Sharan. The rotor’s 313 mm diameter specification aligns with the front brake setup noted for the EuroVan 2002-2003 applications, while the 300 mm note applies to the 2000-2001 EuroVan fitment. For shoppers searching for a front brake rotor for Volkswagen EuroVan or Volkswagen Sharan, 980267R provides the dimensional details needed for a direct replacement decision.

This part cross-references Centric Parts 121.33074 for the same application.

What It Helps Address

  • Brake pulsation from a worn or uneven rotor surface
  • Reduced braking consistency during normal street driving
  • Rotor wear that has reached discard thickness
  • Front brake service on Volkswagen EuroVan and Volkswagen Sharan models
  • Replacement of a vented front rotor with the correct bolt pattern and center bore

Installation Notes and Tips

Verify rotor diameter, center hole diameter, bolt circle, and thickness against the vehicle’s existing brake setup before installation. Confirm front-position fitment for the exact year and model listed, especially on 2000-2001 and 2002-2003 Volkswagen EuroVan applications where rotor diameter notes differ. Always inspect pads, caliper condition, and hub mounting surfaces during brake service.

  • Fits 2000-2001 Volkswagen EuroVan, front
  • Fits 2002-2003 Volkswagen EuroVan, front
  • Fits 2002-2008 Volkswagen Sharan, front

Quality Assurance

Raybestos R-Line is a brake component line focused on replacement parts for listed vehicle applications. Part number 980267R is built to the dimensional specifications shown above for the confirmed Volkswagen fitments.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008VolkswagenSharanFrontReplaces 980267; Raybestos R-Line
2007VolkswagenSharanFrontReplaces 980267; Raybestos R-Line
2006VolkswagenSharanFrontReplaces 980267; Raybestos R-Line
2005VolkswagenSharanFrontReplaces 980267; Raybestos R-Line
2004VolkswagenSharanFrontReplaces 980267; Raybestos R-Line
2003VolkswagenEuroVanFrontRotor Diameter 313mm; R-Line
2003VolkswagenSharanFrontReplaces 980267; Raybestos R-Line
2002VolkswagenEuroVanFrontRotor Diameter 313mm; R-Line
2002VolkswagenSharanFrontReplaces 980267; Raybestos R-Line
2001VolkswagenEuroVanFrontRotor Diameter 300 MM; R-Line
2000VolkswagenEuroVanFrontRotor Diameter 300 MM; R-Line
Directly replaces or cross-references 30 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 121.33074Centric Parts — 125.33074Centric Parts — 320.33074HDorman - HELP — 34245Raybestos Brakes — 980267RStopTech — 127.33074L7M3615301083-2811120.33074125.33052CRY125.33074CRY126.33074SL126.33074SR127.33074CL127.33074CR127.33074R2571134245DG145531326171980267980267RGS53011408BD126104BD180009BDC5264BR34245X51571YH145531YH145531C
