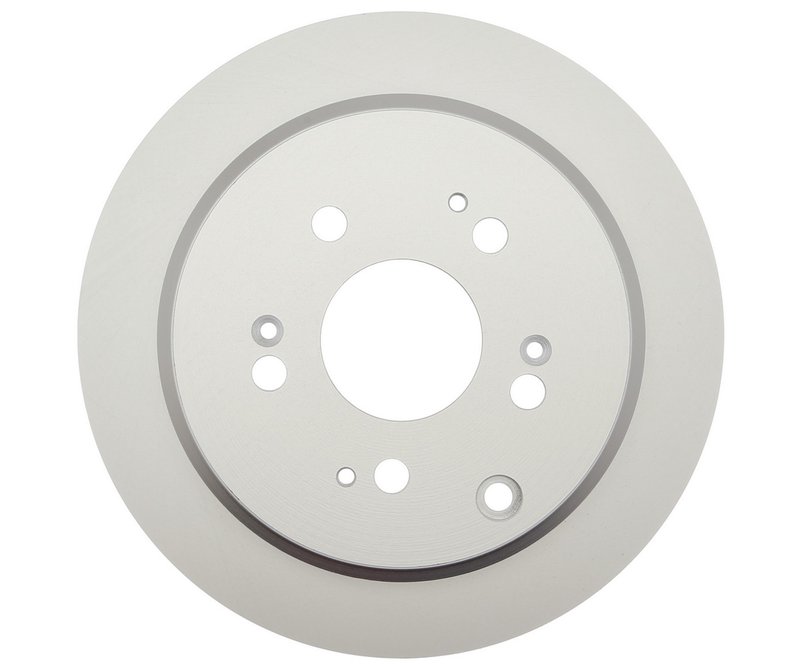

Raybestos 980291FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor for Honda Odyssey

The Raybestos Element3; Coated Rotor 980291FZN is engineered for reliable braking performance on Honda Odyssey models. This solid, drum-in-hat type disc brake rotor offers precise fitment and durability for your vehicle's braking system.

• Compatible with Honda Odyssey vehicles
• Part number 980291FZN for exact replacement
• Solid disc brake rotor with drum-in-hat design
• Coated surface for corrosion resistance
• Five mounting bolt holes and lug holes for secure installation
• Nominal thickness of 0.433 inches (11.000 mm) and discard thickness of 0.354 inches (9.000 mm)
• Overall height of 2.508 inches (63.700 mm) and outside diameter of 12.313 inches (312.750 mm)
• Center hole diameter of 2.760 inches (70.100 mm)
• Mounting bolt hole circle diameter of 4.724 inches (120.000 mm)

Raybestos Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line by Raybestos focuses on providing rotors with a protective coating to reduce corrosion and extend service life. This coating helps maintain rotor integrity and performance over time, especially in environments prone to rust. The 980291FZN rotor combines this coating with a solid, drum-in-hat design tailored for Honda Odyssey applications, ensuring compatibility and consistent braking response.

Technical Specifications and Features

This disc brake rotor features a solid construction with a drum-in-hat type, designed to integrate the parking brake drum within the rotor assembly. The rotor measures 12.313 inches (312.750 mm) in outside diameter and has an overall height of 2.508 inches (63.700 mm). It includes five mounting bolt holes and lug holes, each with a bolt hole circle diameter of 4.724 inches (120.000 mm), ensuring a secure fit on the Honda Odyssey hub. The nominal thickness is 0.433 inches (11.000 mm), with a discard thickness of 0.354 inches (9.000 mm), indicating when the rotor should be replaced to maintain safe braking performance. The center hole diameter is 2.760 inches (70.100 mm), matching the vehicle specifications for proper alignment.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Honda Odyssey models
• Addresses brake pulsation caused by uneven rotor surfaces
• Resolves noise issues related to rotor wear or corrosion
• Improves braking consistency by restoring proper rotor thickness
• Prevents premature rotor failure due to rust or surface degradation

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for safety
• Inspect brake pads and replace if worn to avoid uneven rotor wear
• Check compatibility with Honda Odyssey model year and trim for proper fit

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 980291FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer rotor life. While specific warranty details vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
