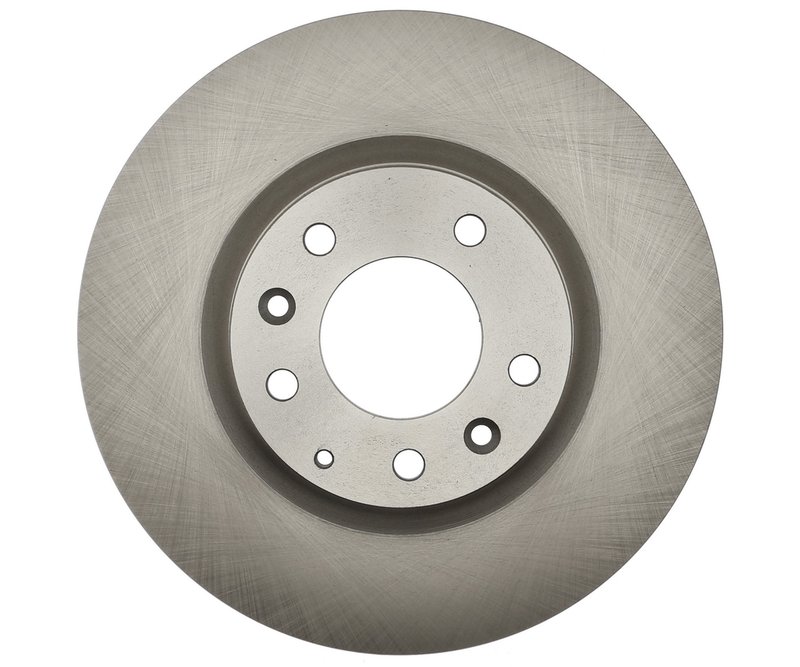

Raybestos 980292R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 980292R

The Raybestos R-Line Disc Brake Rotor 980292R is engineered for reliable braking performance on Mazda RX-8 vehicles. Designed as a vented, conventional rotor, it offers precise fitment and consistent stopping power tailored to this specific model.

• Compatible with Mazda RX-8 models
• Vented disc brake rotor design for improved heat dissipation
• Overall diameter of 11.920 inches (302.75 mm)
• Nominal thickness of 0.945 inches (24.00 mm) with discard thickness at 0.866 inches (22.00 mm)
• Five mounting bolt holes with a 4.5 inch (114.3 mm) bolt circle diameter
• Center hole diameter of 2.835 inches (72.00 mm)
• Conventional rotor type suitable for standard brake systems

Detailed Product Specifications

This Raybestos R-Line rotor, part number 980292R, features a vented design that enhances cooling during braking, reducing the risk of brake fade under demanding conditions. The rotor’s overall height measures 1.780 inches (45.20 mm), ensuring proper clearance and compatibility with the Mazda RX-8’s braking system. The five mounting bolt holes and stud/lug hole quantity of five provide secure attachment, matching the vehicle’s factory specifications. The nominal thickness of 0.945 inches (24.00 mm) and discard thickness of 0.866 inches (22.00 mm) define the rotor’s usable lifespan before replacement is necessary.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering dependable, OE-quality brake components. This line is designed to meet or exceed original equipment specifications, providing consistent performance and durability. The 980292R rotor exemplifies the R-Line’s commitment to precision engineering and fitment accuracy for vehicles like the Mazda RX-8.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing reduced braking efficiency due to rotor thickness below discard limits
• Resolving excessive brake noise linked to rotor surface irregularities
• Improving heat dissipation to prevent brake fade during aggressive driving
• Ensuring proper fitment for Mazda RX-8 brake system maintenance

Installation Notes and Tips

When installing the Raybestos R-Line 980292R rotor, ensure the rotor surface is clean and free of any protective coatings before mounting. Verify that the mounting bolt holes align correctly with the vehicle’s hub assembly. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper torque specifications should be followed for mounting bolts to avoid rotor warping.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 980292R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
