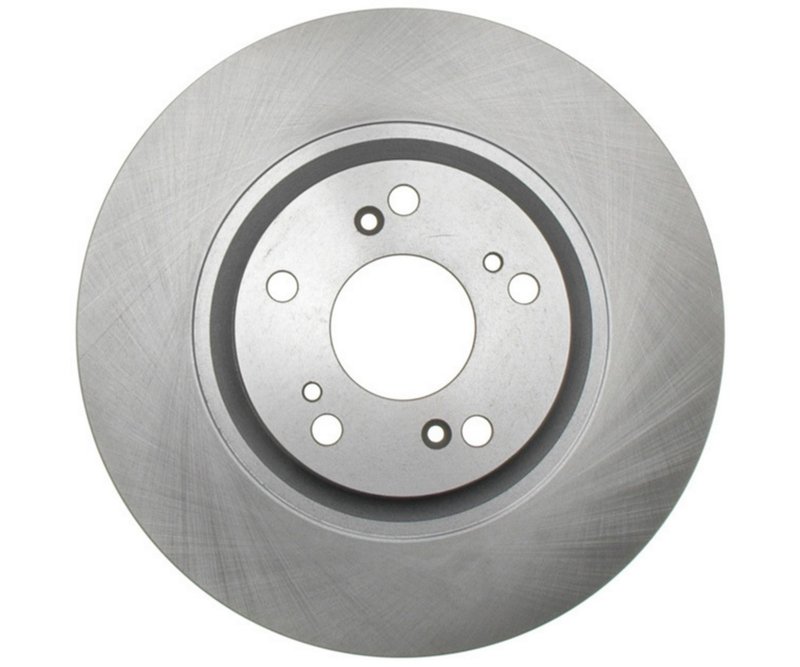

Raybestos 980317R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 980317R

The Raybestos R-Line Disc Brake Rotor 980317R is engineered for reliable braking performance on select Acura and Honda vehicles. Designed specifically for models like the Civic, CR-V, CSX, and ILX, this vented rotor meets precise specifications to maintain optimal stopping power and durability.

• Vented disc brake rotor for improved heat dissipation
• Overall height: 1.850 inches (47.000 mm)
• Outside diameter: 11.810 inches (299.950 mm)
• Nominal thickness: 0.984 inches (25.000 mm)
• Discard thickness: 0.906 inches (23.000 mm)
• 5 mounting bolt holes with 114.3 mm bolt circle diameter
• Center hole diameter: 2.524 inches (64.100 mm)
• Conventional rotor type compatible with drum-in-hat setups

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet or exceed OEM specifications. This product line emphasizes consistent quality and fitment accuracy, making it suitable for routine maintenance and brake system repairs on Acura and Honda vehicles. The 980317R rotor exemplifies the R-Line’s commitment to precise engineering and material standards.

Technical Description and Specifications

This disc brake rotor features a vented design to enhance cooling during braking, reducing the risk of brake fade under normal driving conditions. The rotor’s nominal thickness of 0.984 inches (25.000 mm) ensures structural integrity, while the discard thickness of 0.906 inches (23.000 mm) indicates the minimum safe thickness before replacement is necessary. The overall height of 1.850 inches (47.000 mm) and outside diameter of 11.810 inches (299.950 mm) are tailored to fit specific Acura and Honda models. The rotor includes five mounting bolt holes arranged on a 114.3 mm bolt circle diameter, with a center hole diameter of 2.524 inches (64.100 mm), ensuring proper alignment and secure installation.

Compatible Vehicles and Common Applications

• Replacement rotor for Acura CSX and ILX models
• Suitable for Honda Civic and CR-V brake system maintenance
• Addresses issues such as brake rotor warping and uneven wear
• Helps resolve brake noise caused by rotor surface irregularities
• Restores braking performance affected by rotor thickness below discard limits

Installation Notes and Tips

When installing the Raybestos R-Line 980317R rotor, ensure the rotor surface is clean and free of rust or debris before mounting. Verify that the mounting bolt holes and center hole align precisely with the vehicle hub. It is recommended to replace brake pads simultaneously to maintain balanced braking performance. Torque mounting bolts to manufacturer specifications and inspect the brake system for proper operation after installation.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Users should consult product documentation or contact Raybestos directly for warranty terms related to part number 980317R.
