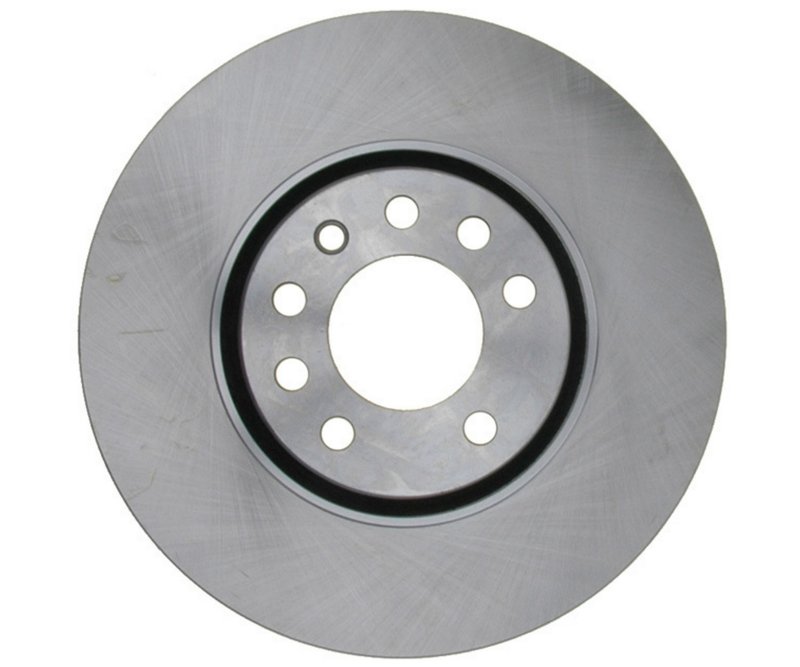

Raybestos 980328R Disc Brake Rotor - Front
Overview of Raybestos R-Line Disc Brake Rotor 980328R
The Raybestos R-Line Disc Brake Rotor 980328R is engineered for reliable braking performance on select Cadillac and Saab vehicles. Designed as a vented, conventional rotor, it offers precise fitment for models including the Saab 9-3, 9-3X, and BLS.
- Vented disc brake rotor for improved heat dissipation
- Overall height: 1.772 inches (45.000 mm)
- Outside diameter: 11.890 inches (302.000 mm)
- Nominal thickness: 1.102 inches (28.000 mm)
- Discard thickness: 0.984 inches (25.000 mm)
- Mounting bolt hole quantity: 5 with 0.546 inch (13.850 mm) diameter
- Center hole diameter: 2.756 inches (70.000 mm)
- Mounting bolt hole circle diameter: 4.331 inches (110.000 mm)
- Conventional rotor type compatible with drum-in-hat setups
Raybestos R-Line Product Line Details
The R-Line series by Raybestos focuses on delivering dependable brake components that meet or exceed OEM specifications. This product line emphasizes durability and consistent performance, making it suitable for drivers seeking reliable replacement parts for their Cadillac and Saab vehicles. The 980328R rotor maintains the quality standards expected from the R-Line, ensuring proper fit and function.
Technical Description and Specifications
This vented disc brake rotor features an overall height of 1.772 inches (45.000 mm) and an outside diameter of 11.890 inches (302.000 mm), providing adequate surface area for effective braking. The nominal thickness of 1.102 inches (28.000 mm) ensures structural integrity, while the discard thickness of 0.984 inches (25.000 mm) indicates the minimum thickness before replacement is necessary. The rotor includes five mounting bolt holes with a diameter of 0.546 inches (13.850 mm) arranged on a 4.331 inch (110.000 mm) bolt circle diameter, and a center hole diameter of 2.756 inches (70.000 mm) for precise hub alignment. This conventional rotor design is compatible with drum-in-hat configurations commonly found on the specified vehicle models.
Compatible Vehicles and Applications
- Cadillac models requiring a 5-lug vented rotor
- Saab 9-3 and 9-3X models
- Saab BLS model brake system maintenance
- Replacement for worn or warped rotors causing brake pulsation
- Upgrading rotors to restore braking efficiency and safety
Installation Notes and Tips
Ensure the rotor surface is clean and free of rust or debris before installation. Verify the mounting bolt hole pattern and center hole diameter match the vehicle hub. Use proper torque specifications for mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Check rotor thickness regularly and replace when thickness reaches discard limits.
Quality Assurance and Warranty
Raybestos R-Line rotors are manufactured to meet OEM standards for fit, form, and function. The 980328R part number undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
| Brand | Raybestos |
|---|---|
| Part Number | 980328R |
| Position | R-Line, Front |
| Center Hole Diameter | 2.756 |
| Center Hole Diameter | 70.000 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.984 |
| Discard Thickness | 25.000 |
| Mounting Bolt Hole Circle Diameter | 4.331 |
| Mounting Bolt Hole Circle Diameter | 110.000 |
| Mounting Bolt Hole Diameter | 0.546 |
| Mounting Bolt Hole Diameter | 13.850 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 |
| Nominal Thickness | 28.000 |
| Outside Diameter | 11.890 |
| Outside Diameter | 302.000 |
| Overall Height | 1.772 |
| Overall Height | 45.000 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2011 | Saab | 9-3X | Front | 302mm Front Disc; Raybestos R-Line | ||
| 2010 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2010 | Saab | 9-3X | Front | Rotor Diameter 302 MM; R-Line | ||
| 2009 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2008 | Cadillac | BLS | Front | 302mm Front Disc; Raybestos R-Line | ||
| 2008 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2007 | Cadillac | BLS | Front | 302mm Front Disc; Raybestos R-Line | ||
| 2007 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2006 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2005 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2004 | Saab | 9-3 | Front | Rotor Diameter 302 MM; R-Line | ||
| 2003 | Saab | 9-3 | Sedan | 4 Door | Front | Rotor Diameter 302 MM; R-Line |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
