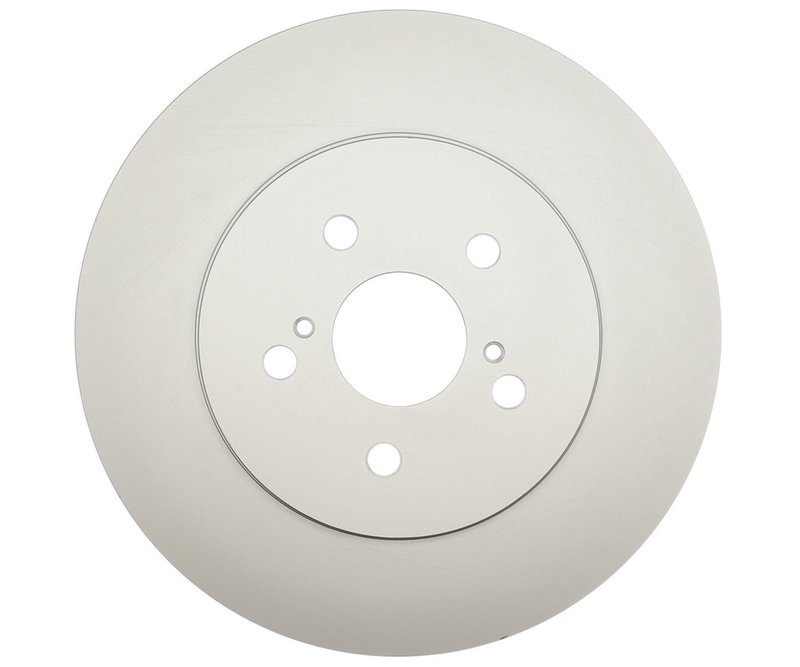

Raybestos 980341FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Lexus and Toyota Vehicles

The Raybestos Element3; Coated Rotor 980341FZN is engineered to provide consistent braking performance for select Lexus and Toyota models. Designed as a vented, conventional disc brake rotor, it offers durability and heat dissipation suited for daily driving conditions.

• Compatible with Lexus Highlander, RX330, RX350, and RX400h
• Vented disc brake rotor design for improved heat management
• Overall height: 1.930 inches (49.000 mm)
• Outside diameter: 12.560 inches (319.000 mm)
• Mounting bolt hole quantity: 5 with 114.3 mm bolt circle diameter
• Nominal thickness: 1.102 inches (28.000 mm); discard thickness: 1.024 inches (26.000 mm)
• Center hole diameter: 2.443 inches (62.050 mm)

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line from Raybestos focuses on providing rotors with a protective coating that helps resist corrosion and extends rotor life. This coating reduces the risk of rust buildup, which can affect braking efficiency and rotor longevity. The 980341FZN rotor benefits from this coating, making it a practical choice for Lexus Highlander and Toyota RX series vehicles operating in various environments.

Technical Specifications and Features

This disc brake rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The rotor's nominal thickness of 1.102 inches (28.000 mm) ensures structural integrity, while the discard thickness of 1.024 inches (26.000 mm) indicates when replacement is necessary to maintain safe braking performance. The rotor measures 12.560 inches (319.000 mm) in outside diameter and has an overall height of 1.930 inches (49.000 mm), fitting precisely on vehicles with a 5-bolt mounting pattern and a 114.3 mm bolt circle diameter.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Lexus Highlander and Toyota RX330, RX350, RX400h
• Addresses brake noise caused by rotor surface irregularities
• Improves braking performance by restoring proper rotor thickness
• Helps reduce brake fade during extended or heavy braking
• Prevents corrosion-related rotor damage with protective coating

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the mounting bolt pattern matches the vehicle specifications (5 bolts, 114.3 mm bolt circle). It is recommended to replace brake pads simultaneously to ensure even wear and optimal braking performance. Use proper torque specifications for mounting bolts to avoid rotor warping.

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 980341FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating enhances durability against rust and corrosion. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region.
