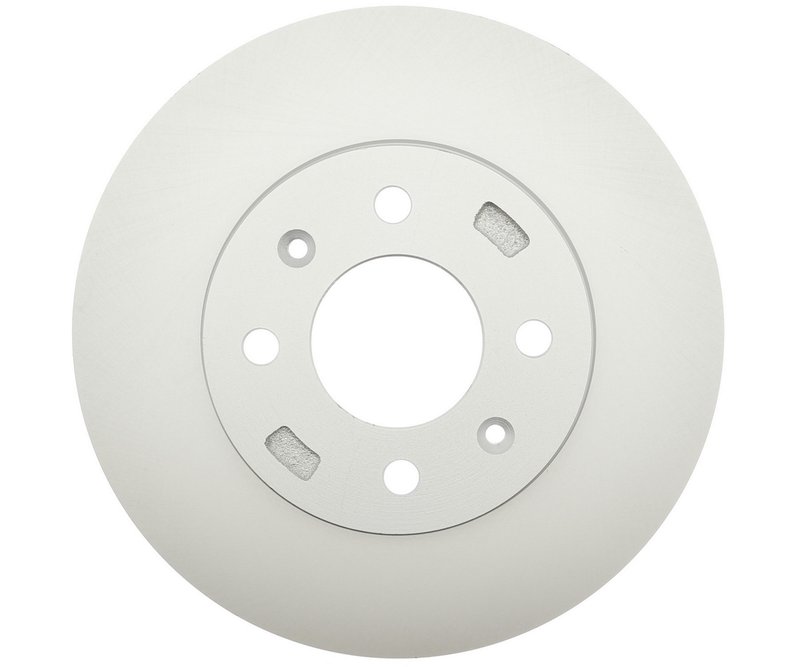

Raybestos 980452FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980452FZN is engineered for reliable braking performance on select Dodge, Hyundai, and Kia vehicles. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for models like the Hyundai Accent, Kia Rio, and Dodge Attitude.

• Vented disc brake rotor design for improved cooling
• Nominal thickness of 0.870 inches (22.1 mm) ensuring structural integrity
• Discard thickness at 0.787 inches (20.0 mm) for safe replacement guidelines
• Overall height of 1.836 inches (46.65 mm) for precise fitment
• Outside diameter of 10.078 inches (256 mm) compatible with specified vehicles
• Four mounting bolt holes with a 100 mm (3.937 inch) bolt circle diameter
• Conventional rotor type suitable for standard braking systems

Details on the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos focuses on corrosion resistance and extended rotor life through a protective coating. This coating helps reduce rust formation on the braking surface and rotor hat, which is particularly beneficial for vehicles exposed to moisture and road salt. The 980452FZN rotor maintains the balance between performance and longevity, making it a practical choice for Dodge, Hyundai, and Kia models requiring vented rotors.

Technical Specifications and Compatibility

This disc brake rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The nominal thickness of 0.870 inches (22.1 mm) ensures the rotor maintains structural strength under normal operating conditions, while the discard thickness of 0.787 inches (20.0 mm) provides a clear threshold for rotor replacement to maintain safety. The rotor’s overall height of 1.836 inches (46.65 mm) and outside diameter of 10.078 inches (256 mm) are engineered to fit vehicles such as the Hyundai Accent, Kia Rio and Rio5, and Dodge Attitude. The four mounting bolt holes with a 100 mm (3.937 inch) bolt circle diameter align with the factory specifications for these models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and surface rust that affects braking efficiency
• Upgrading to a vented rotor to improve heat dissipation and reduce brake fade
• Restoring proper rotor thickness to maintain braking performance and safety
• Ensuring compatibility with factory mounting specifications for Dodge, Hyundai, and Kia vehicles

Installation Notes and Tips

When installing the Raybestos 980452FZN rotor, ensure the mounting surface is clean and free of debris to prevent rotor runout. Verify the rotor thickness before installation and replace if below the discard thickness of 0.787 inches (20.0 mm). Use proper torque specifications on the four mounting bolts with a 100 mm bolt circle diameter to secure the rotor. It is recommended to inspect brake pads and hardware during installation to ensure optimal braking system performance.

Quality Assurance and Warranty

Raybestos Element3; Coated Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating helps extend rotor life by reducing corrosion. While specific warranty details for part number 980452FZN should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
