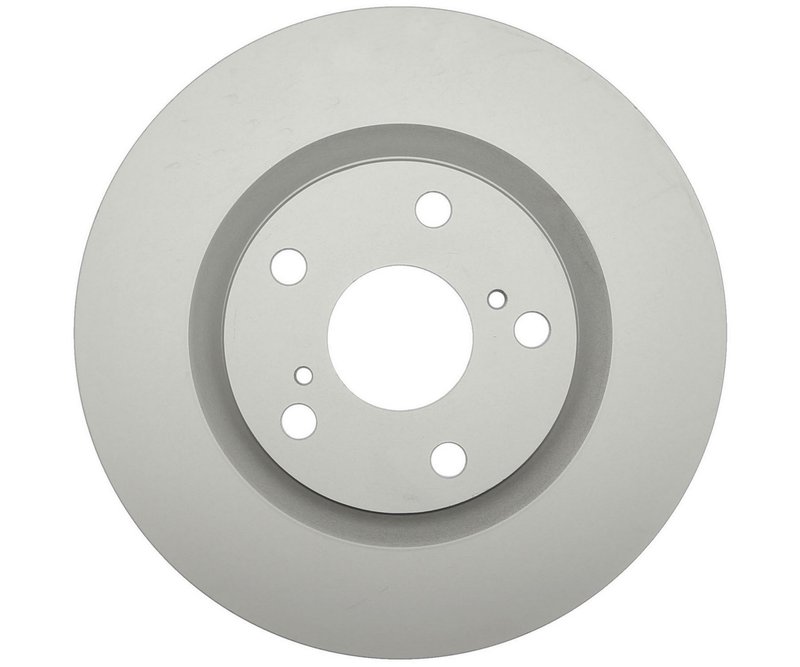

Raybestos 980470FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Rotor 980470FZN

The Raybestos Element3; Coated Rotor 980470FZN is engineered for reliable braking performance on select Lexus, Pontiac, Scion, and Toyota vehicles. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for models like the Toyota Camry, Avalon, and RAV4.

• Vented disc brake rotor design for improved cooling
• Nominal thickness of 1.101 inches (27.950 mm) with discard thickness at 0.984 inches (25.000 mm)
• Overall height of 1.935 inches (49.150 mm)
• Outside diameter measuring 11.650 inches (295.900 mm)
• Five mounting bolt holes with a 4.500 inch (114.300 mm) bolt circle diameter
• Conventional rotor type compatible with drum-in-hat systems

Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line by Raybestos focuses on corrosion resistance and extended rotor life through a proprietary coating process. This coating helps protect the rotor surface from rust and environmental damage, which is particularly beneficial for vehicles exposed to moisture and road salt. The 980470FZN rotor maintains structural integrity while providing consistent braking performance across its service life.

Technical Specifications and Compatibility

This disc brake rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The nominal thickness of 1.101 inches (27.950 mm) ensures sufficient material for resurfacing if needed, while the discard thickness of 0.984 inches (25.000 mm) indicates the minimum safe thickness before replacement is required. The rotor’s overall height of 1.935 inches (49.150 mm) and outside diameter of 11.650 inches (295.900 mm) are engineered to fit specific brake assemblies.

With five mounting bolt holes arranged on a 4.500 inch (114.300 mm) bolt circle diameter, this rotor is compatible with various models including the Lexus ES350, Pontiac Vibe, Scion tC, and Toyota Corolla iM. The conventional rotor type is designed for vehicles using drum-in-hat brake systems.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and surface rust that affect braking efficiency
• Improving heat dissipation to reduce brake fade during extended use
• Restoring proper rotor thickness to maintain safe braking performance
• Ensuring compatibility with specific Lexus, Pontiac, Scion, and Toyota models

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern match vehicle specifications before installation
• Inspect brake pads and hardware for wear and replace as necessary during rotor installation
• Clean mounting surfaces to ensure proper rotor seating and prevent vibration
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Perform a bed-in procedure after installation to optimize braking performance

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor 980470FZN to meet or exceed OEM standards for fit, form, and function. The coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
