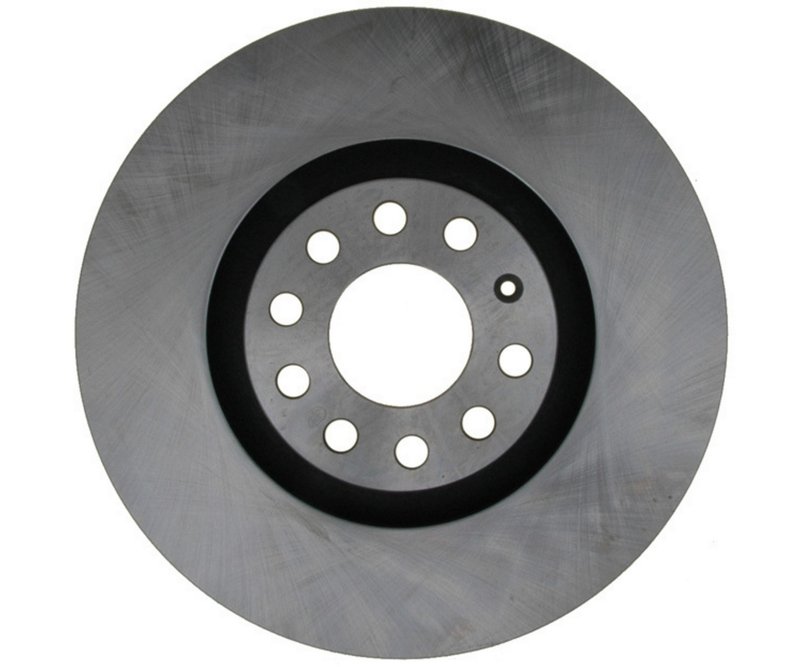

Raybestos 980499R Disc Brake Rotor - Front
Overview of Raybestos R-Line Disc Brake Rotor 980499R
The Raybestos R-Line Disc Brake Rotor 980499R is engineered for reliable braking performance on select Audi models. Designed as a vented, conventional rotor, it offers consistent heat dissipation and durability for vehicles like the Audi A4, A6, and S4 series.
- Vented disc brake rotor for improved cooling
- Overall height: 1.815 inches (46.1 mm)
- Outside diameter: 12.598 inches (320 mm)
- Mounting bolt hole quantity: 5 with 112 mm bolt circle diameter
- Center hole diameter: 2.682 inches (68.1 mm)
- Nominal thickness: 1.181 inches (30 mm)
- Discard thickness: 1.102 inches (28 mm)
- Compatible with multiple Audi models including A4, A4 Quattro, A6, A6 Quattro, Allroad Quattro, and S4
Raybestos R-Line Product Line Details
The R-Line by Raybestos focuses on delivering dependable brake components that meet or exceed OEM specifications. This product line emphasizes quality materials and precise manufacturing to ensure consistent rotor thickness and proper fitment. The 980499R rotor exemplifies these standards with its vented design and exacting dimensions tailored for Audi vehicles.
Technical Specifications and Features
This disc brake rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The rotor’s nominal thickness of 1.181 inches (30 mm) and discard thickness of 1.102 inches (28 mm) provide a clear service life indicator to maintain safe braking performance. With an outside diameter of 12.598 inches (320 mm) and a mounting bolt pattern of 5 holes on a 112 mm circle, it ensures precise fitment on compatible Audi models. The center hole diameter of 2.682 inches (68.1 mm) aligns with OEM specifications for secure installation.
Compatible Audi Models and Applications
- Audi A4 and A4 Quattro
- Audi A6 and A6 Quattro
- Audi Allroad Quattro
- Audi S4
This rotor is designed specifically for these models, providing reliable braking performance and maintaining vehicle safety standards.
Common Issues Addressed by Raybestos 980499R Rotor
- Brake rotor warping due to heat buildup
- Reduced braking efficiency from worn or thin rotors
- Brake noise caused by uneven rotor surfaces
- Vibration or pulsation during braking
- Corrosion and surface damage affecting rotor lifespan
Installation Notes and Tips
Ensure the rotor surface is clean and free of debris before installation. Verify the mounting bolt pattern and center hole diameter match the vehicle specifications. It is recommended to replace brake pads simultaneously to optimize braking performance. Proper torque specifications should be followed when securing the rotor to avoid distortion. After installation, perform a brake bed-in procedure to ensure optimal rotor and pad contact.
Quality Assurance and Warranty
Raybestos R-Line rotors are manufactured to meet strict quality control standards, ensuring consistent thickness and material integrity. The 980499R rotor is designed to meet OEM fit and function requirements for Audi vehicles. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
| Brand | Raybestos |
|---|---|
| Part Number | 980499R |
| Position | R-Line, Front |
| Center Hole Diameter | 2.682 |
| Center Hole Diameter | 68.100 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 |
| Discard Thickness | 28.000 |
| Mounting Bolt Hole Circle Diameter | 4.409 |
| Mounting Bolt Hole Circle Diameter | 112.000 |
| Mounting Bolt Hole Diameter | 4.409 |
| Mounting Bolt Hole Diameter | 112.000 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 |
| Nominal Thickness | 30.000 |
| Outside Diameter | 12.598 |
| Outside Diameter | 320.000 |
| Overall Height | 1.815 |
| Overall Height | 46.100 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
This part fits 37 vehicles. Search below:
| Year | Make | Model | Body Type | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Audi | A4 | Convertible | Front | R-Line | |||
| 2009 | Audi | A4 Quattro | Convertible | 2 Door | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||
| 2008 | Audi | A4 | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2008 | Audi | A4 Quattro | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2007 | Audi | A4 | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2007 | Audi | A4 Quattro | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2006 | Audi | A4 | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2006 | Audi | A4 Quattro | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2005 | Audi | A4 | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2005 | Audi | A4 Quattro | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2005 | Audi | Allroad Quattro | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2004 | Audi | A4 | Front | 320mm Front Disc; Raybestos R-Line | ||||
| 2004 | Audi | A6 | Front | Raybestos R-Line | ||||
| 2004 | Audi | A6 Quattro | Front | Raybestos R-Line | ||||
| 2004 | Audi | Allroad Quattro | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2003 | Audi | A4 | Front | 320mm Front Disc; Raybestos R-Line | ||||
| 2003 | Audi | A6 | Front | Raybestos R-Line | ||||
| 2003 | Audi | A6 Quattro | Front | Raybestos R-Line | ||||
| 2003 | Audi | Allroad Quattro | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2002 | Audi | A4 | Front | 320mm Front Disc; Raybestos R-Line | ||||
| 2002 | Audi | A6 | Front | Raybestos R-Line | ||||
| 2002 | Audi | A6 Quattro | Front | Raybestos R-Line | ||||
| 2002 | Audi | Allroad Quattro | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2002 | Audi | S4 | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2001 | Audi | A4 | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2001 | Audi | A4 Quattro | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2001 | Audi | A6 | Front | 320mm Front Disc; Raybestos R-Line | ||||
| 2001 | Audi | A6 Quattro | 2.7L | V6 | Front | Raybestos R-Line | ||
| 2001 | Audi | Allroad Quattro | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2001 | Audi | S4 | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2000 | Audi | A4 | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2000 | Audi | A4 Quattro | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2000 | Audi | A6 | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 2000 | Audi | A6 Quattro | Front | Disc Brake Rotor - 320mm Diameter; R-Line | ||||
| 2000 | Audi | S4 | Front | Rotor Diameter 320mm; Raybestos R-Line | ||||
| 1999 | Audi | A6 | Front | 320mm Front Disc; Raybestos R-Line | ||||
| 1998 | Audi | A6 | Front | 320mm Front Disc; Raybestos R-Line |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
