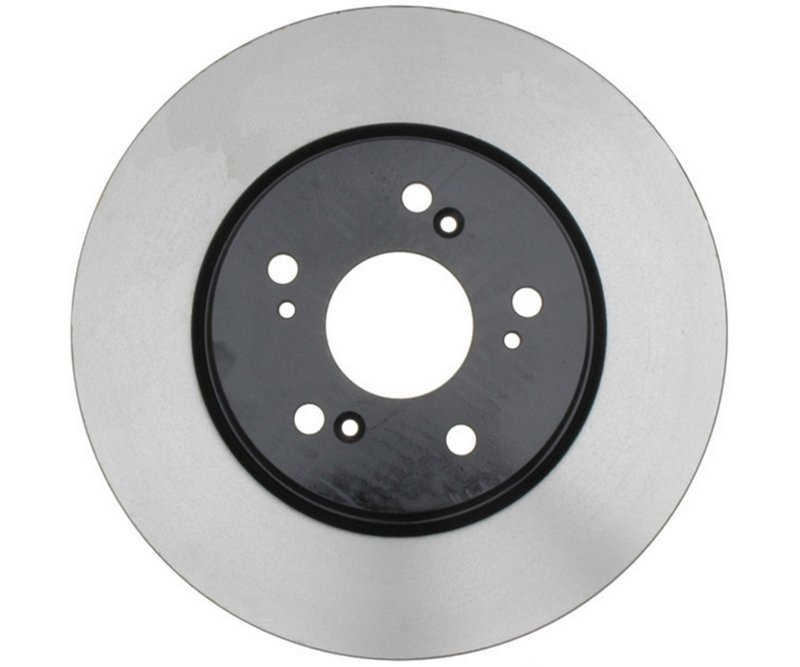

Raybestos 980515 Disc Brake Rotor - Front
| Brand | Raybestos 980515 |
|---|---|
| Position | Front |
| Discard Thickness | 1.024 |
| Discard Thickness | 26.000 |
| Nominal Thickness | 1.102 |
| Nominal Thickness | 28.000 |
| Overall Height | 1.858 |
| Overall Height | 47.200 |
| Outside Diameter | 11.654 |
| Outside Diameter | 296.000 |
| Mounting Bolt Hole Quantity | 5 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.524 |
| Center Hole Diameter | 64.100 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Mounting Bolt Hole Diameter | 114.300 |
| Mounting Bolt Hole Diameter | 4.500 |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Product line | Specialty - Street Performance |
| Fits | Acura and Honda · 22 vehicles |
Vented rotor. Helps move air through the disc for more consistent braking performance.
Conventional design. A straightforward brake rotor layout for familiar service and replacement.
Street Performance line. Built for Raybestos Specialty applications with a performance-focused approach.
Cross-references Bosch 26010792, Centric Parts 120.40073 and Centric Parts 121.40073 for the same application. See all 65.
Front Vented Rotor for Honda and Acura Applications
Raybestos Specialty - Street Performance rotor 980515 is a front disc brake rotor built for specific Honda and Acura applications. It features a vented, conventional design with a 11.654-inch outside diameter, 1.102-inch nominal thickness, and 5-lug fitment for a direct replacement on listed vehicles.
Compatible With 2007-2016 Honda CR-V, front; 2012-2015 Honda Crosstour, front; 2007-2012 Acura RDX, front; and 2010-2011 Honda Accord Crosstour, front. This part cross-references Bosch 26010792 and DuraGo BR900388 for the same application.
Key Features
- Raybestos Specialty - Street Performance rotor for front brake service
- Vented, conventional rotor construction
- Outside diameter: 11.654 in. / 296.0 mm
- Nominal thickness: 1.102 in. / 28.0 mm
- Discard thickness: 1.024 in. / 26.0 mm
- Overall height: 1.858 in. / 47.2 mm
- Center hole diameter: 2.524 in. / 64.1 mm
- 5 mounting bolt holes and 5 stud/lug holes
- Bolt circle diameter: 4.500 in. / 114.3 mm
Detailed Description
The Raybestos 980515 front brake rotor is engineered for vehicles that use a vented, conventional rotor layout and a 5-lug hub pattern. Its dimensions are matched to the listed Honda CR-V, Honda Crosstour, Honda Accord Crosstour, and Acura RDX applications, making it a direct-fit option for front brake rotor replacement. The Specialty - Street Performance line is positioned for drivers who want a rotor built around precise fitment and consistent brake system geometry.
Use this rotor when servicing front brake wear on 2007-2016 Honda CR-V, 2012-2015 Honda Crosstour, 2007-2012 Acura RDX, and 2010-2011 Honda Accord Crosstour models. The Raybestos 980515 part number is also referenced by multiple aftermarket catalogs, including Bosch 26010792 and DuraGo BR900388.
Common Problems This Rotor Addresses
- Front brake pulsation from rotor wear or thickness variation
- Brake noise caused by worn or heat-stressed rotors
- Reduced braking consistency from a rotor at or near discard thickness
- Service replacement for a damaged or warped front rotor
- Fitment issues when replacing the original front rotor on listed Honda and Acura models
Installation Notes and Tips
Confirm rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s bedding procedure for the brake pads and verify smooth rotor rotation before returning the vehicle to service.
Quality Assurance
Raybestos is a long-established brake brand with a dedicated Specialty - Street Performance product line for application-specific brake components. Part number 980515 is built to the listed dimensional and fitment requirements for the confirmed Honda and Acura front applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Honda | CR-V | AWD | Front | Specialty - Street Performance |
| 2015 | Honda | CR-V | AWD | Front | Specialty - Street Performance |
| 2015 | Honda | Crosstour | — | Front | Specialty - Street Performance |
| 2014 | Honda | CR-V | AWD | Front | Specialty - Street Performance |
| 2014 | Honda | Crosstour | — | Front | Specialty - Street Performance |
| 2013 | Honda | CR-V | AWD | Front | Specialty - Street Performance |
| 2013 | Honda | Crosstour | — | Front | Specialty - Street Performance |
| 2012 | Acura | RDX | — | Front | Specialty - Street Performance |
| 2012 | Honda | CR-V | AWD | Front | Specialty - Street Performance |
| 2012 | Honda | Crosstour | — | Front | Specialty - Street Performance |
| 2011 | Acura | RDX | — | Front | Specialty - Street Performance |
| 2011 | Honda | Accord Crosstour | — | Front | Specialty - Street Performance |
| 2011 | Honda | CR-V | — | Front | Specialty - Street Performance |
| 2010 | Acura | RDX | — | Front | Specialty - Street Performance |
| 2010 | Honda | Accord Crosstour | — | Front | Specialty - Street Performance |
| 2010 | Honda | CR-V | — | Front | Specialty - Street Performance |
| 2009 | Acura | RDX | — | Front | Specialty - Street Performance |
| 2009 | Honda | CR-V | — | Front | Specialty - Street Performance |
| 2008 | Acura | RDX | — | Front | Specialty - Street Performance |
| 2008 | Honda | CR-V | — | Front | Specialty - Street Performance |
| 2007 | Acura | RDX | — | Front | Specialty - Street Performance |
| 2007 | Honda | CR-V | — | Front | Specialty - Street Performance |
| No rows match your filter. | |||||
