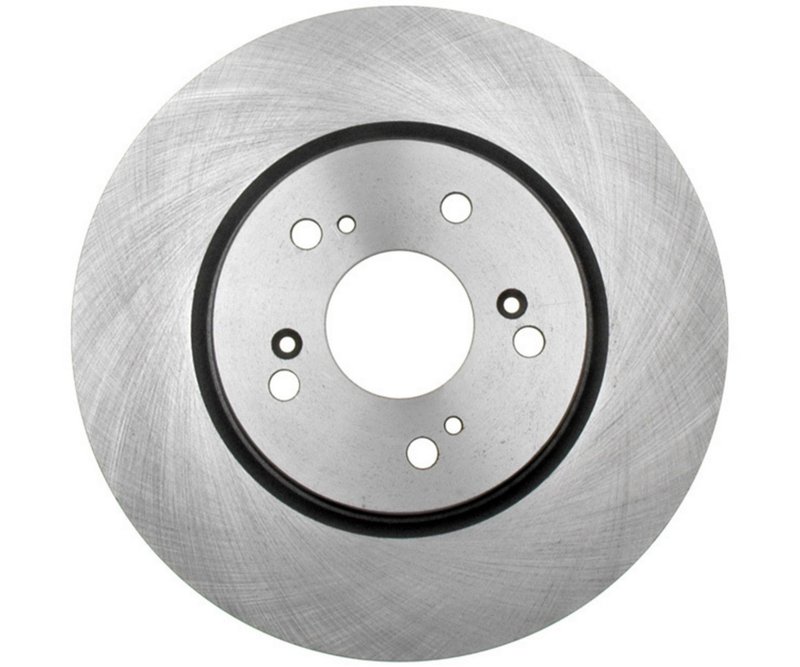

Raybestos 980515R Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Acura and Honda Vehicles

The Raybestos R-Line 980515R disc brake rotor is engineered to meet the braking demands of Acura and Honda models including the Accord Crosstour, CR-V, Crosstour, and RDX. Designed with precision, this vented rotor ensures consistent performance and durability under various driving conditions.

• Vented disc brake rotor for improved heat dissipation
• Overall diameter of 11.654 inches (296 mm) for optimal fit
• Nominal thickness of 1.102 inches (28 mm) with discard thickness at 1.024 inches (26 mm)
• Five mounting bolt holes with a 4.5 inch (114.3 mm) bolt circle diameter
• Center hole diameter of 2.524 inches (64.1 mm) for precise hub alignment
• Conventional rotor design compatible with drum-in-hat systems

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable braking components that meet or exceed OEM specifications. This line emphasizes quality materials and manufacturing processes to provide rotors that maintain consistent thickness and structural integrity. The 980515R rotor benefits from this approach, offering a vented design that helps reduce brake fade and improve overall braking efficiency for Acura and Honda vehicles.

Technical Details and Specifications

This disc brake rotor features a vented design to enhance cooling during braking, which helps maintain performance and extends rotor life. The nominal thickness of 1.102 inches (28 mm) ensures a solid braking surface, while the discard thickness of 1.024 inches (26 mm) indicates the minimum safe thickness before replacement is necessary. The rotor’s overall height measures 1.858 inches (47.2 mm), and it includes five mounting bolt holes arranged on a 4.5 inch (114.3 mm) bolt circle diameter, compatible with the specified Acura and Honda models. The center hole diameter of 2.524 inches (64.1 mm) ensures proper fitment on the vehicle hub.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Acura Accord Crosstour and Honda CR-V
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking performance in vehicles experiencing fade due to overheating
• Restores proper rotor thickness for safe and effective braking
• Compatible upgrade for Crosstour and RDX models requiring vented rotors

Installation Notes and Tips

Ensure the rotor surface and hub are clean and free of rust before installation to promote proper seating. Verify the rotor thickness with a micrometer to confirm it meets the nominal specifications. Use the correct torque specifications for the five mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to ensure even wear and optimal braking performance.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent thickness and structural integrity. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or manufacturer for exact warranty terms.
