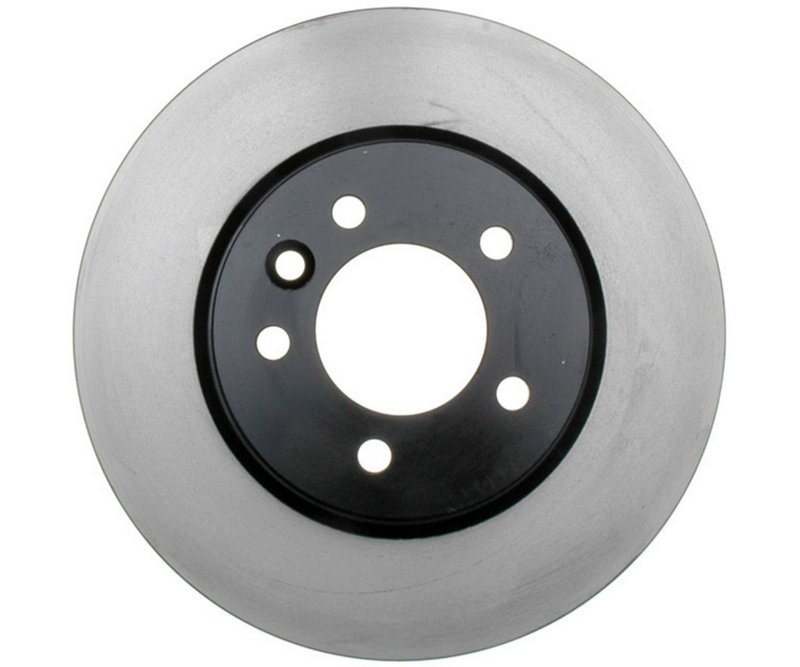

Raybestos 980529 Disc Brake Rotor - Front

Raybestos Specialty - Truck Disc Brake Rotor Overview

The Raybestos Specialty - Truck disc brake rotor, part number 980529, is engineered for reliable braking performance on Land Rover LR3 vehicles. Designed with precision, this vented rotor supports effective heat dissipation and consistent stopping power under demanding conditions.

• Compatible with Land Rover LR3 models
• Vented disc brake rotor for improved cooling
• Overall height: 2.441 inches (62.000 mm)
• Outside diameter: 12.480 inches (317.000 mm)
• Mounting bolt hole quantity: 5 with 0.585 inch (14.850 mm) diameter holes
• Center hole diameter: 3.110 inches (79.000 mm)
• Nominal thickness: 1.181 inches (30.000 mm)
• Discard thickness: 1.063 inches (27.000 mm)
• Conventional rotor type with drum-in-hat design

Detailed Product Description

The Raybestos Specialty - Truck line focuses on heavy-duty and specialty vehicle applications, providing components built to meet the rigorous demands of truck and SUV braking systems. This disc brake rotor, part number 980529, features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The rotor’s nominal thickness of 1.181 inches (30.000 mm) ensures durability and longevity, while the discard thickness of 1.063 inches (27.000 mm) indicates the minimum safe thickness before replacement is necessary. With an outside diameter of 12.480 inches (317.000 mm) and a mounting bolt hole circle diameter of 4.724 inches (120.000 mm), this rotor fits securely on Land Rover LR3 models requiring a 5-bolt mounting pattern.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Land Rover LR3
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves braking performance under heavy load or towing conditions
• Reduces overheating and brake fade during extended braking
• Restores proper rotor thickness for safe braking operation

Installation Notes and Tips

• Verify compatibility with Land Rover LR3 before installation
• Inspect mounting bolts and hardware for wear or damage
• Ensure rotor surface is clean and free of debris before mounting
• Torque mounting bolts to manufacturer specifications
• Check brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Raybestos Specialty - Truck rotors are manufactured to meet strict quality standards for durability and performance. The vented rotor design supports consistent braking under demanding conditions. While specific warranty details for part number 980529 should be confirmed with the supplier, Raybestos products typically come with a limited warranty against defects in materials and workmanship.
