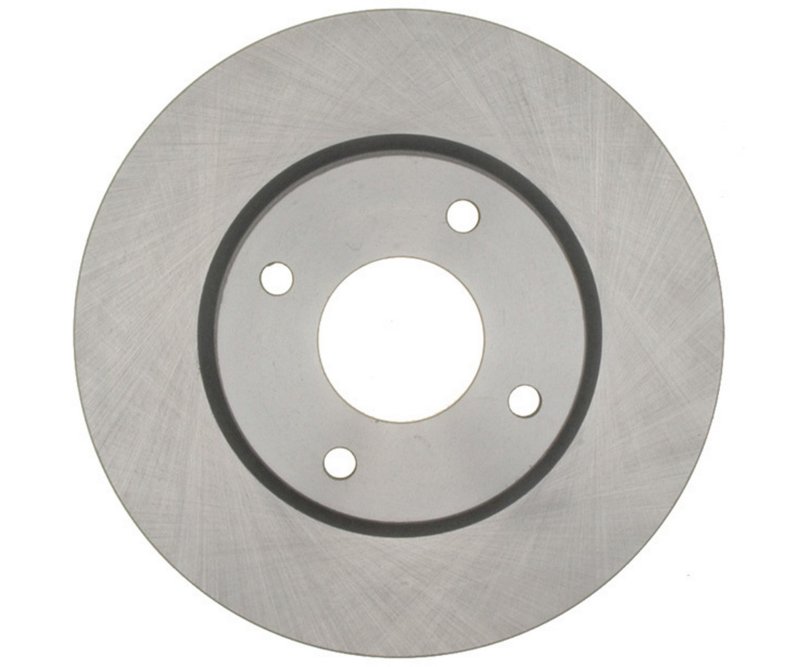

Raybestos 980561R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 980561R

The Raybestos R-Line Disc Brake Rotor 980561R is engineered for reliable braking performance on select Nissan models. Designed specifically for Nissan Cube, Sentra, and Versa vehicles, this vented rotor ensures effective heat dissipation and consistent stopping power.

• Compatible with Nissan Cube, Sentra, and Versa
• Vented disc brake rotor for improved cooling
• Overall height: 1.730 inches (43.950 mm)
• Outside diameter: 11.017 inches (279.850 mm)
• Mounting bolt hole quantity: 4 with 4.500 inch (114.300 mm) bolt circle diameter
• Nominal thickness: 0.945 inches (24.000 mm)
• Discard thickness: 0.866 inches (22.000 mm)
• Conventional rotor type with 4 stud/lug holes

Detailed Product Specifications

This Raybestos R-Line rotor (part number 980561R) features a vented design that helps reduce heat buildup during braking, which is critical for maintaining brake performance and rotor longevity. The rotor’s nominal thickness of 0.945 inches (24.000 mm) provides a solid braking surface, while the discard thickness of 0.866 inches (22.000 mm) indicates the minimum safe thickness before replacement is necessary. The overall height of 1.730 inches (43.950 mm) and outside diameter of 11.017 inches (279.850 mm) are engineered to match the original equipment specifications for Nissan Cube, Sentra, and Versa models. The rotor mounts with four bolts on a 4.500 inch (114.300 mm) bolt circle diameter, ensuring proper fitment and secure installation.

Raybestos R-Line Product Line Information

The R-Line by Raybestos is a product line focused on delivering reliable, OE-quality brake components designed to meet the demands of daily driving. This line balances performance and durability, making it suitable for drivers who require dependable braking without extensive modifications. The 980561R rotor exemplifies the R-Line’s commitment to quality and fitment accuracy for Nissan vehicles.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Nissan Cube, Sentra, and Versa
• Improves braking consistency and reduces brake fade
• Addresses rotor thickness below manufacturer discard limits
• Restores proper rotor dimensions for safe brake pad contact
• Helps eliminate brake noise and vibration caused by damaged rotors

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it meets minimum discard thickness
• Clean mounting surface to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to ensure optimal braking performance
• Perform a bed-in procedure after installation to maximize rotor and pad life

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 980561R rotor undergoes rigorous quality control to ensure consistent performance and durability. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship, providing confidence in the product’s reliability for Nissan Cube, Sentra, and Versa owners.
