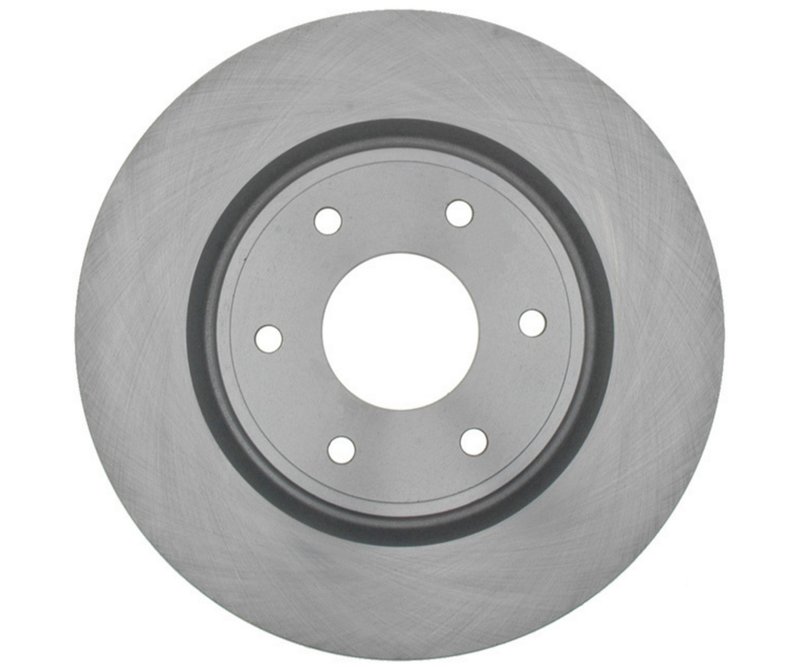

Raybestos 980563R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 980563R Disc Brake Rotor - Front

Brand Raybestos 980563R
Position Front
Discard Thickness 1.122
Discard Thickness 28.500
Nominal Thickness 1.182
Nominal Thickness 30.000
Overall Height 1.698
Overall Height 43.150
Outside Diameter 13.771
Outside Diameter 349.800
Mounting Bolt Hole Quantity 6
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 139.700
Mounting Bolt Hole Circle Diameter 5.500
Mounting Bolt Hole Diameter 139.700
Mounting Bolt Hole Diameter 5.500
Stud/Lug Hole Quantity 6
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line R-Line
Fits INFINITI and Nissan · 5 vehicles

Vented design. Promotes better airflow through the rotor for more consistent braking performance.

Conventional rotor. A straightforward disc brake rotor built for standard replacement use.

R-Line series. Raybestos line focused on dependable brake components for everyday service.

Cross-references Bosch 40011488, Centric Parts 120.42094 and Centric Parts 121.42094 for the same application. See all 33.

$71.07Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $71.07
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor

The Raybestos R-Line 980563R is a vented front disc brake rotor built for select Infiniti QX56 and Nissan Armada applications. With a 13.771-inch outside diameter, 6-lug mounting pattern, and conventional rotor design, it matches the dimensional requirements for listed front brake setups.

Key Features

  • Part number: 980563R
  • Raybestos R-Line brake rotor for front axle applications
  • Vented rotor design for improved heat management
  • Outside diameter: 13.771 in. / 349.800 mm
  • Nominal thickness: 1.182 in. / 30.000 mm
  • Discard thickness: 1.122 in. / 28.500 mm
  • Overall height: 1.698 in. / 43.150 mm
  • 6 mounting bolt holes with a 5.500 in. / 139.700 mm bolt circle
  • Conventional drum-in-hat style: no

Detailed Description

Raybestos R-Line 980563R is a front disc brake rotor engineered to match the fitment and dimensions required by select full-size SUV brake systems. It is listed for 2005 Infiniti QX56 front, 2006 Infiniti QX56 front, 2007 Infiniti QX56 front, 2006 Nissan Armada front, and 2007 Nissan Armada front. This rotor cross-references Raybestos Brakes 980563 and 980563R for the same application.

The R-Line product line focuses on direct-fit brake service parts with OE-style dimensions and application-specific coverage. For buyers searching for a front brake rotor for 2006 Nissan Armada or a 2007 Infiniti QX56 front rotor, 980563R provides the specified vented construction, 6-lug fitment, and rotor sizing needed for the listed vehicles.

What This Rotor Helps Address

  • Brake pulsation caused by rotor wear beyond discard thickness
  • Reduced braking consistency from heat buildup in a worn rotor
  • Rotor replacement needs during front brake service
  • Fitment issues when replacing a rotor with the wrong bolt pattern or diameter
  • Service requirements on Infiniti QX56 and Nissan Armada front brake systems

Installation Notes and Tips

Verify rotor diameter, bolt circle, and hub fitment before installation. This rotor is listed for front position use only and should be matched to the vehicle build notes shown in the fitment data, including the 2005 Infiniti QX56 from 10/05, the 2006 Infiniti QX56 with 13.75-inch diameter rotor, and the 2007 Infiniti QX56 through 03/2007. Always inspect pads, caliper condition, and hub surfaces during brake service.

Quality Assurance

Raybestos R-Line parts are cataloged as application-specific brake service components with published dimensional specifications and vehicle fitment data for direct replacement selection.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2007INFINITIQX56Frontwith 13.75 IN Diameter Rotor; Thru 03/2007; R-Line
2007NissanArmadaFrontR-Line
2006INFINITIQX56Frontwith 13.75 IN Diameter Rotor; R-Line
2006NissanArmadaFrontFrom 03/2006; R-Line
2005INFINITIQX56FrontFr 10/05; Raybestos R-Line
Directly replaces or cross-references 33 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 40011488Centric Parts — 120.42094Centric Parts — 121.42094Centric Parts — 320.42094DuraGo — BR900418Promax — 14-31465Raybestos Brakes — 980563Raybestos Brakes — 980563RStopTech — 126.42094SLStopTech — 126.42094SRStopTech — 127.42094R120.42094CRY126.42094CSL126.42094CSR127.42094L128.42094CL128.42094CR128.42094L128.42094R3146540206ZC60A44593145724326367980563RGS6620744AX900418BR31465PRT5724QBRR572YH145724YH145724CYH145735
