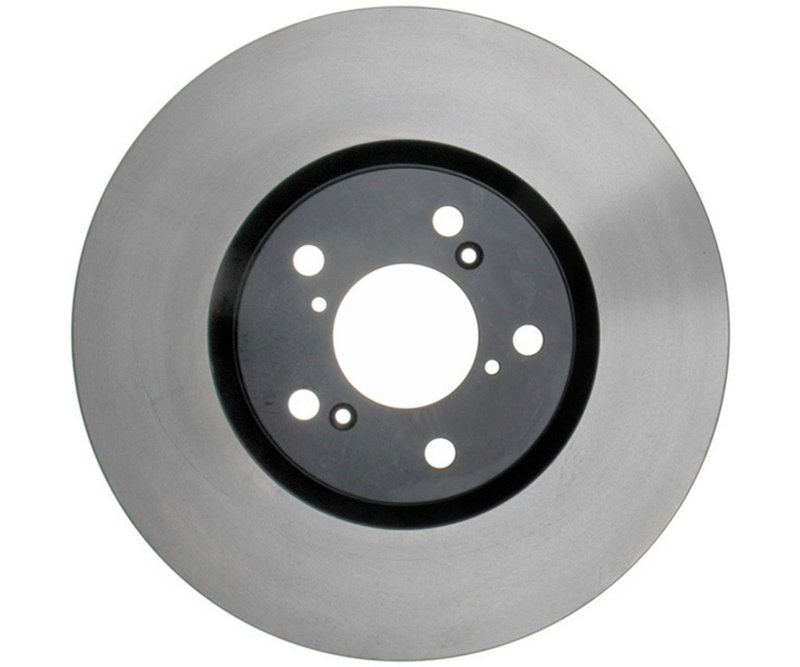

Raybestos 980566 Disc Brake Rotor - Front

Raybestos 980566 Front Vented Brake Rotor

Raybestos 980566 is a front disc brake rotor for select Acura and Honda applications, including the Acura MDX, Acura RLX, Acura ZDX, and Honda Pilot. Built as a conventional vented rotor, it is sized for direct replacement service where correct braking surface dimensions and hub fitment matter.

Key Features

• Part number: 980566
• Brand: Raybestos Specialty - Truck
• Front disc brake rotor for select Acura and Honda vehicles
• Vented rotor design for front axle brake service
• Outside diameter: 12.984 in. / 329.800 mm
• Nominal thickness: 1.102 in. / 28.000 mm
• Discard thickness: 1.024 in. / 26.000 mm
• Overall height: 1.858 in. / 47.200 mm
• Center hole diameter: 2.760 in. / 70.100 mm
• 5-lug pattern with 5 mounting bolt holes
• Bolt circle diameter: 4.724 in. / 120.000 mm
• Conventional drum-in-hat style rotor construction

Product Details

Raybestos 980566 is engineered for front brake applications that require a vented rotor with the correct diameter, thickness, and hub dimensions. The rotor measures 12.984 inches in outside diameter, 1.102 inches nominal thickness, and 1.858 inches overall height, with a 70.100 mm center hole and 120.000 mm bolt circle. Those dimensions are important for maintaining proper rotor alignment, pad contact, and brake system fitment on the vehicle.

This part fits 2007-2013 Acura MDX, front; 2014-2020 Acura RLX, front; 2010-2013 Acura ZDX, front; and 2009-2015 Honda Pilot, front. It is a direct-fit brake rotor for front axle service on these models, and the Raybestos 980566 part number is also referenced in aftermarket catalogs for the same application.

This part cross-references Bosch 26011445 for the same application.

Common Brake Issues This Rotor Can Address

• Front brake pulsation caused by rotor wear or thickness variation
• Brake noise related to worn or heat-affected rotor surfaces
• Reduced braking consistency from a rotor below discard thickness
• Uneven pad contact on a damaged or warped front rotor
• Service replacement needs on Acura MDX, Acura RLX, Acura ZDX, or Honda Pilot front brakes

Installation Notes

Verify rotor dimensions, bolt pattern, and hub center diameter before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. Always confirm front-position fitment for the specific vehicle year and trim before ordering or installing Raybestos 980566.

Quality Assurance

Raybestos Specialty - Truck brake components are cataloged for application-specific fitment and dimensional accuracy. This rotor is listed with multiple interchange references, including Raybestos Brakes 980566, 980566FZN, and 980566R, to support parts lookup and replacement matching.
