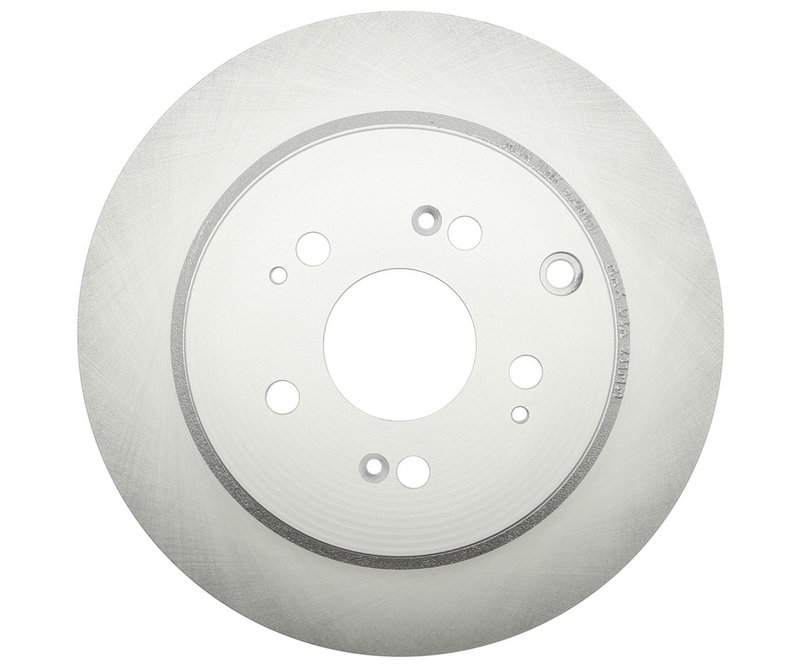

Raybestos 980567FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980567FZN is engineered for reliable braking performance on select Acura and Honda models. Designed as a solid, drum-in-hat type disc brake rotor, it offers precise fitment and durability for vehicles like the Acura MDX, Honda Odyssey, Pilot, and ZDX.

• Compatible with Acura MDX, Honda Odyssey, Pilot, and ZDX
• Part number 980567FZN for exact replacement
• Solid disc brake rotor with drum-in-hat design
• Coated surface for corrosion resistance
• 5 mounting bolt holes with 120 mm bolt circle diameter
• Nominal thickness of 0.433 inches (11.000 mm) and discard thickness of 0.354 inches (9.000 mm)
• Outside diameter of 13.142 inches (333.800 mm)
• Overall height of 2.510 inches (63.750 mm)
• Center hole diameter of 2.764 inches (70.200 mm)

Detailed Product Description

This Raybestos disc brake rotor, part number 980567FZN, is a solid rotor featuring a drum-in-hat design, which integrates the parking brake drum into the rotor itself. The rotor measures 13.142 inches (333.8 mm) in outside diameter and has a nominal thickness of 0.433 inches (11.000 mm), with a discard thickness of 0.354 inches (9.000 mm), ensuring it meets precise wear limits for safe operation. The overall height is 2.510 inches (63.75 mm), and it includes five mounting bolt holes arranged on a 120 mm bolt circle diameter, with each hole measuring 0.573 inches (14.55 mm) in diameter. The center hole diameter is 2.764 inches (70.2 mm), designed for exact hub fitment. This rotor is coated to resist corrosion, extending its service life and maintaining braking efficiency over time.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos focuses on providing rotors with a protective coating that helps prevent rust and corrosion, which can degrade braking performance and rotor lifespan. This coating is especially beneficial for vehicles exposed to moisture and road salt. The 980567FZN rotor combines this coating with a solid, drum-in-hat design, making it suitable for Acura and Honda models requiring integrated parking brake functionality.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Acura MDX, Honda Odyssey, Pilot, and ZDX
• Addresses brake pulsation caused by uneven rotor thickness
• Solves noise issues related to rotor surface corrosion
• Restores proper parking brake operation with drum-in-hat design
• Improves braking consistency and safety on compatible vehicles

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.354 inches) before installation
• Clean mounting surfaces to prevent rotor runout
• Torque mounting bolts to manufacturer specifications for Acura and Honda models
• Check compatibility with vehicle’s parking brake system due to drum-in-hat design
• Inspect brake pads and hardware during rotor replacement for optimal performance

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 980567FZN, are manufactured to meet or exceed OEM specifications for fit, form, and function. The coating provides additional protection against corrosion, contributing to longer rotor life. Warranty coverage details should be confirmed with the point of purchase or Raybestos directly, as it may vary by region and application.
