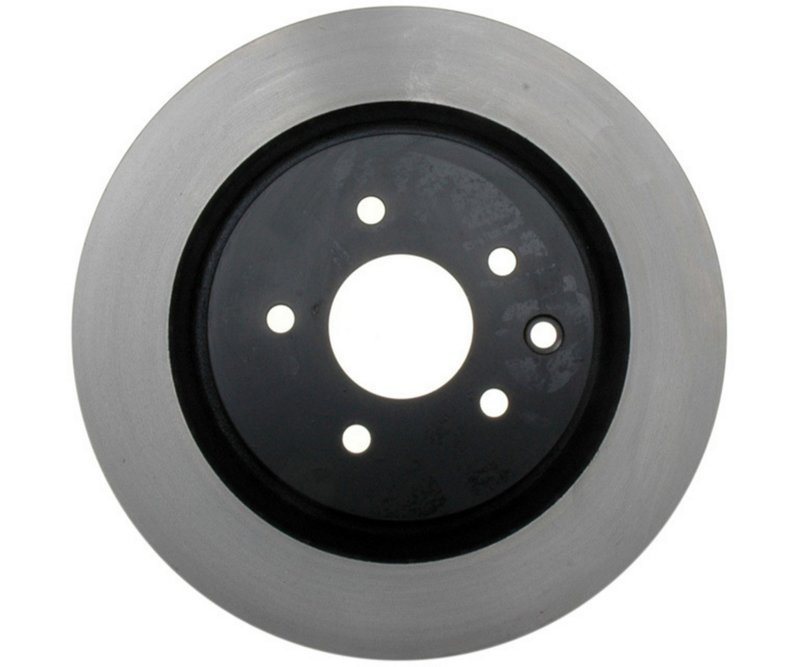

Raybestos 980568 Disc Brake Rotor - Rear

Overview of Raybestos Specialty - Street Performance Rotor 980568

The Raybestos Specialty - Street Performance disc brake rotor 980568 is engineered for reliable braking performance on select Infiniti models. Designed as a vented, drum-in-hat type rotor, it offers consistent heat dissipation and durability for street driving conditions.

• Compatible with Infiniti G35, G37, and Q60 models
• Vented disc brake rotor with drum-in-hat design
• Outside diameter: 12.984 inches (329.8 mm)
• Nominal thickness: 0.630 inches (16.0 mm)
• Discard thickness: 0.591 inches (15.0 mm)
• Overall height: 2.441 inches (62.0 mm)
• Mounting bolt hole quantity: 5 with 0.507 inch (12.9 mm) diameter
• Center hole diameter: 2.677 inches (68.0 mm)
• Mounting bolt hole circle diameter: 4.5 inches (114.3 mm)
• Stud/lug hole quantity: 5

Detailed Product Description

This Raybestos disc brake rotor, part number 980568, is specifically designed for Infiniti G35, G37, and Q60 vehicles. The rotor features a vented design that improves heat dissipation during braking, reducing the risk of brake fade under normal street driving conditions. The drum-in-hat configuration integrates a parking brake drum within the rotor, providing a compact and efficient braking solution. With an outside diameter of nearly 13 inches and a nominal thickness of 0.630 inches, this rotor meets OEM specifications for fit and function.

The mounting bolt pattern includes five holes with a 4.5-inch bolt circle diameter, ensuring proper alignment and secure installation. The center hole diameter of 2.677 inches allows for precise hub centering. The discard thickness of 0.591 inches indicates the minimum safe thickness before replacement is necessary, helping maintain braking safety and performance.

Applications and Problem Solving

• Replacement rotor for worn or warped rotors on Infiniti G35, G37, and Q60
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves heat management to reduce brake fade during street driving
• Restores proper parking brake function with integrated drum-in-hat design
• Ensures consistent braking performance and safety

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern compatibility with your specific Infiniti model and year
• Inspect hub surface for cleanliness and damage before installation
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Check brake pads for wear and replace if necessary when installing new rotors
• Follow proper bedding-in procedures after installation for optimal braking performance

Quality Assurance and Warranty

Raybestos Specialty - Street Performance rotors are manufactured to meet or exceed OEM standards for durability and performance. The vented design and precise machining ensure consistent braking under typical street conditions. While specific warranty details are not provided here, Raybestos products generally come with a limited warranty against defects in materials and workmanship. Consult product documentation or Raybestos directly for warranty terms related to part number 980568.
