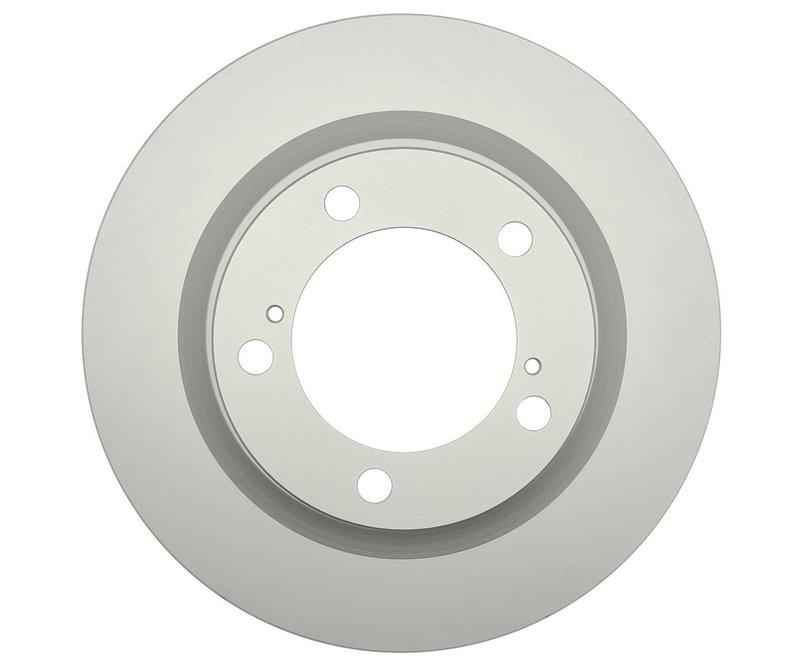

Raybestos 980583FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980583FZN is engineered for reliable braking performance on select Lexus and Toyota models. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for vehicles like the Lexus LX570 and Toyota Tundra.

• Compatible with Lexus Land Cruiser, LX570, Toyota Sequoia, and Tundra
• Vented disc brake rotor design for improved cooling
• Overall height: 3.278 inches (83.250 mm)
• Outside diameter: 13.937 inches (354.000 mm)
• Mounting bolt hole quantity: 5 with 0.645 inch (16.400 mm) diameter
• Center hole diameter: 4.409 inches (112.000 mm)
• Nominal thickness: 1.260 inches (32.000 mm), discard thickness: 1.142 inches (29.000 mm)
• Conventional rotor type with 5 stud/lug holes

Detailed Product Description

This Raybestos disc brake rotor, part number 980583FZN, is a vented rotor designed to maintain optimal braking performance under demanding conditions. The vented design enhances airflow to reduce heat buildup, which helps prevent brake fade during extended use. With a nominal thickness of 1.260 inches and a discard thickness of 1.142 inches, this rotor ensures a precise fit and long service life. The overall height of 3.278 inches and outside diameter of nearly 14 inches provide compatibility with the braking systems of Lexus Land Cruiser, LX570, Toyota Sequoia, and Tundra models. The rotor features five mounting bolt holes and stud/lug holes, each sized to fit factory specifications, ensuring straightforward installation.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line from Raybestos focuses on corrosion resistance and durability. The coating applied to this rotor helps protect against rust and environmental wear, extending the rotor’s lifespan and maintaining consistent braking performance. This product line is designed to meet or exceed OEM specifications, making it a suitable replacement for original equipment on compatible Lexus and Toyota vehicles.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Improves braking consistency on Lexus LX570 and Toyota Tundra
• Addresses rotor corrosion and surface rust issues
• Restores proper rotor thickness for safe braking performance
• Suitable for vehicles experiencing brake noise due to rotor wear

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 1.142 inches
• Ensure mounting surfaces and bolt holes are clean and free of debris
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Test brakes after installation to confirm proper operation

Quality Assurance and Warranty

Raybestos disc brake rotors, including part number 980583FZN, are manufactured to meet strict quality standards. The Element3; Coated Rotor line is designed to provide reliable performance and corrosion resistance. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
