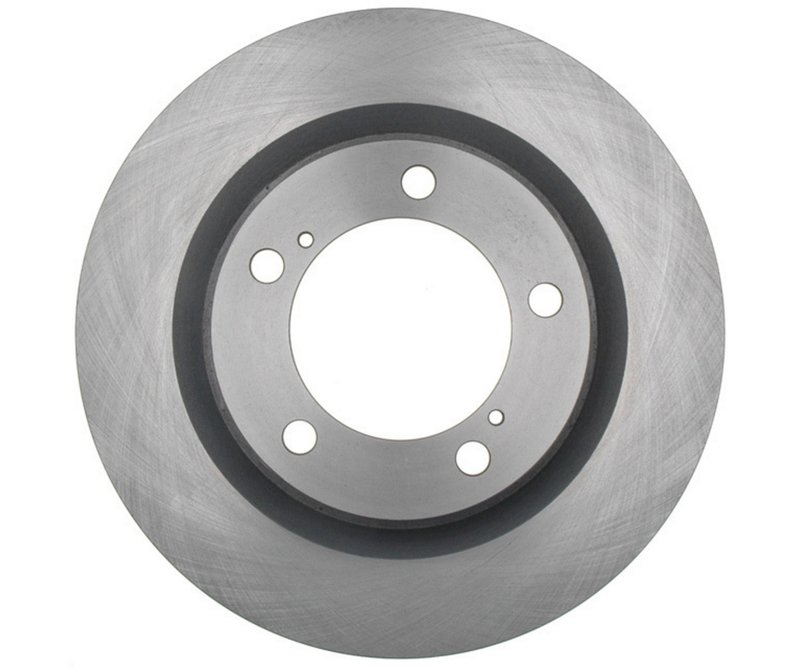

Raybestos 980583R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 980583R Disc Brake Rotor - Front

Brand Raybestos 980583R
Position Front
Center Hole Diameter 4.409
Center Hole Diameter 112.000
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.142
Discard Thickness 29.000
Mounting Bolt Hole Circle Diameter 5.906
Mounting Bolt Hole Circle Diameter 150.000
Mounting Bolt Hole Diameter 0.645
Mounting Bolt Hole Diameter 16.400
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.260
Nominal Thickness 32.000
Outside Diameter 13.937
Outside Diameter 354.000
Overall Height 3.278
Overall Height 83.250
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Product line R-Line
Fits Toyota and Lexus · 42 vehicles

Vented design. Promotes efficient airflow for more consistent braking performance.

Conventional rotor. A straightforward disc brake replacement with a familiar fit and function.

R-Line series. Raybestos line focused on dependable everyday braking parts.

Cross-references BENDIX FLEET METLOK SDR5718, Bosch 50011319 and Centric Parts 120.44156 for the same application. See all 50.

$80.50Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $80.50
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor for Toyota and Lexus

The Raybestos R-Line 980583R is a front disc brake rotor built for select Toyota and Lexus full-size SUVs and trucks. It is a vented, conventional rotor with the dimensions needed for direct replacement service on applications such as the Toyota Tundra, Toyota Sequoia, Toyota Land Cruiser, and Lexus LX570.

Key Features

  • Raybestos R-Line replacement rotor, part number 980583R
  • Front position disc brake rotor for select Toyota and Lexus applications
  • Vented, conventional rotor design for front axle brake service
  • Outside diameter: 13.937 in. / 354.000 mm
  • Nominal thickness: 1.260 in. / 32.000 mm
  • Discard thickness: 1.142 in. / 29.000 mm
  • Overall height: 3.278 in. / 83.250 mm
  • 5 lug / 5 bolt hole configuration with 5.906 in. / 150.000 mm bolt circle
  • Center hole diameter: 4.409 in. / 112.000 mm

Product Details

Raybestos R-Line focuses on direct-fit brake service parts for everyday repair work, and the 980583R follows that approach with OE-style dimensions and a conventional vented rotor layout. This rotor is specified for front brake applications on 2007-2021 Toyota Tundra, 2008-2022 Toyota Sequoia, 2016-2021 Toyota Land Cruiser, and 2016-2021 Lexus LX570. This part cross-references Bosch 50011319 and DuraGo BR900336 for the same application.

Common Brake Issues This Rotor Can Address

  • Front brake pulsation caused by rotor wear or thickness variation
  • Brake noise related to worn or heat-affected rotor surfaces
  • Reduced braking consistency from a rotor that has reached discard thickness
  • Service replacement for a damaged or heavily worn front disc brake rotor
  • Brake pedal vibration during stops on Toyota Tundra, Sequoia, Land Cruiser, or Lexus LX570 front axle service

Installation Notes and Fitment

Compatible With 2007-2021 Toyota Tundra, front. Compatible With 2008-2022 Toyota Sequoia, front. Compatible With 2016-2021 Lexus LX570, front. Compatible With 2016-2021 Toyota Land Cruiser, front. Verify hub condition, clean mating surfaces, and confirm rotor thickness and bolt pattern before installation. Always follow the vehicle manufacturer’s brake service procedure and torque specifications.

Quality Assurance

Raybestos is a long-established brake parts brand, and the R-Line is positioned as a service replacement line for routine brake maintenance. The 980583R is built to match the listed fitment and dimensional requirements for the specified Toyota and Lexus front brake applications.

Related reading

This part fits 42 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2022ToyotaSequoiaFrontR-Line
2021LexusLX570FrontR-Line
2021ToyotaLand CruiserFrontR-Line
2021ToyotaSequoiaFrontR-Line
2021ToyotaTundraFrontR-Line
2020LexusLX570FrontR-Line
2020ToyotaLand CruiserFrontR-Line
2020ToyotaSequoiaFrontR-Line
2020ToyotaTundraFrontR-Line
2019LexusLX570FrontR-Line
2019ToyotaLand CruiserFrontR-Line
2019ToyotaSequoiaFrontR-Line
2019ToyotaTundraFrontR-Line
2018LexusLX570FrontR-Line
2018ToyotaLand CruiserFrontR-Line
2018ToyotaSequoiaFrontR-Line
2018ToyotaTundraFrontR-Line
2017LexusLX570FrontR-Line
2017ToyotaLand CruiserFrontR-Line
2017ToyotaSequoiaFrontR-Line
2017ToyotaTundraFrontR-Line
2016LexusLX570FrontR-Line
2016ToyotaLand CruiserFrontR-Line
2016ToyotaSequoiaFrontR-Line
2016ToyotaTundraFrontR-Line
2015ToyotaSequoiaFrontR-Line
2015ToyotaTundraFrontR-Line
2014ToyotaSequoiaFrontR-Line
2014ToyotaTundraFrontR-Line
2013ToyotaSequoiaFrontR-Line
2013ToyotaTundraFrontR-Line
2012ToyotaSequoiaFrontR-Line
2012ToyotaTundraFrontR-Line
2011ToyotaSequoiaFrontR-Line
2011ToyotaTundraFrontR-Line
2010ToyotaSequoiaFrontR-Line
2010ToyotaTundraFrontR-Line
2009ToyotaSequoiaFrontR-Line
2009ToyotaTundraFrontR-Line
2008ToyotaSequoiaFrontR-Line
2008ToyotaTundraFrontR-Line
2007ToyotaTundraFrontR-Line
Directly replaces or cross-references 50 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BENDIX FLEET METLOK — SDR5718Bosch — 50011319Centric Parts — 120.44156Centric Parts — 121.44156Centric Parts — 320.44156DuraGo — BR900336Dynamic Friction Company — 604-76136Febi-Bilstein — 31482Parts Authority — PRT5718PowerStop — JBR1309EVCPromax — 14-31482Raybestos Brakes — 980583Raybestos Brakes — 980583FZNRaybestos Brakes — 980583PERRaybestos Brakes — 980583RStopTech — 126.44156SLStopTech — 126.44156SRStopTech — 127.44156CRStopTech — 127.44156LStopTech — 127.44156RStopTech — 128.44156CLStopTech — 128.44156CRStopTech — 128.44156LStopTech — 128.44156RStopTech — 227.44156LStopTech — 227.44156RWagner Brake — BD126490E120.44156CRY126.44156CSL126.44156CSR127.44156CL321.441564458744587DG326372435120C020479655980583RGS203148266207474351260210AX900336BD126490BR31482BR90033602DL44587PS126490YH145718YH145718CYH145718P
