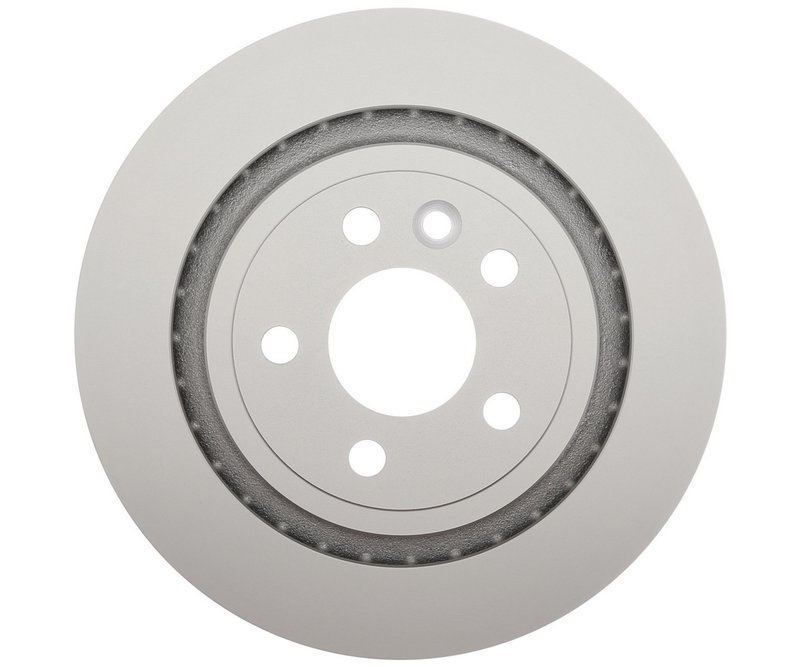

Raybestos 980609FZN Disc Brake Rotor - Rear
Overview of Raybestos Element3 Coated Disc Brake Rotor
The Raybestos Element3; Coated Rotor 980609FZN is engineered for reliable braking performance on select Volvo models. Designed as a vented, conventional disc brake rotor, it offers precise fitment and durability for vehicles like the Volvo S60, S80, V60, V70, and XC70.
- Part Number: 980609FZN
- Brand: Raybestos, Element3; Coated Rotor line
- Type: Vented, conventional disc brake rotor
- Mounting Bolt Holes: 5 holes with 0.62 inch diameter
- Outside Diameter: 11.89 inches (302 mm)
- Nominal Thickness: 0.866 inches (22 mm)
- Discard Thickness: 0.787 inches (20 mm)
- Center Hole Diameter: 2.504 inches (63.6 mm)
- Surface Type: Smooth, coated finish for corrosion resistance
- Compatible with Volvo S60, S80, V60, V70, XC70
Raybestos Element3; Coated Rotor Product Line Details
The Element3; Coated Rotor line from Raybestos focuses on providing rotors with a protective coating that helps resist rust and corrosion, extending the rotor's service life. This coating also maintains a smooth braking surface, which contributes to consistent brake pad contact and performance. The 980609FZN rotor benefits from this coating, making it suitable for drivers seeking durability and reliable stopping power on their Volvo vehicles.
Technical Specifications and Features
This disc brake rotor features a vented design to improve heat dissipation during braking, reducing the risk of brake fade. The rotor's overall height is 1.604 inches (40.75 mm), with a mounting bolt hole circle diameter of 4.252 inches (108 mm), ensuring precise alignment and fitment. The smooth surface type supports even pad wear and quiet operation. With 5 mounting bolt holes and stud/lug holes, this rotor is designed for secure installation on compatible Volvo models.
Applications and Problem Solving
- Replacement for worn or warped rotors on Volvo S60, S80, V60, V70, and XC70
- Addresses brake noise caused by uneven rotor surfaces
- Improves braking performance by restoring proper rotor thickness
- Helps prevent rust and corrosion-related rotor damage
- Reduces brake fade through vented rotor design
Installation Notes and Tips
- Ensure rotor thickness is above discard thickness (0.787 inches) before installation
- Clean mounting surfaces to prevent uneven rotor seating
- Torque mounting bolts to manufacturer specifications for secure fitment
- Inspect brake pads and replace if worn to maintain optimal braking
- Check for proper rotor alignment and runout during installation
Quality Assurance and Warranty
Raybestos rotors, including the Element3; Coated Rotor 980609FZN, are manufactured to meet or exceed OEM specifications for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer rotor life. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Always refer to the product documentation or manufacturer for exact warranty terms.
| Brand | Raybestos |
|---|---|
| Part Number | 980609FZN |
| Position | Element3; Coated Rotor, Rear |
| Center Hole Diameter | 2.504 |
| Center Hole Diameter | 63.600 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 |
| Discard Thickness | 20.000 |
| Inside Diameter | 8.386 |
| Inside Diameter | 213.000 |
| Mounting Bolt Hole Circle Diameter | 4.252 |
| Mounting Bolt Hole Circle Diameter | 108.000 |
| Mounting Bolt Hole Diameter | 0.620 |
| Mounting Bolt Hole Diameter | 15.750 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.866 |
| Nominal Thickness | 22.000 |
| Outside Diameter | 11.890 |
| Outside Diameter | 302.000 |
| Overall Height | 1.604 |
| Overall Height | 40.750 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
This part fits 36 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Volvo | S60 | T6 R-Design Platinum | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2018 | Volvo | S60 | T5 Inscription Platinum | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2018 | Volvo | S60 | T5 Inscription | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2018 | Volvo | S60 | T5 Dynamic | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2018 | Volvo | V60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2017 | Volvo | S60 | T6 R-Design Platinum | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2017 | Volvo | S60 | T5 Inscription | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2017 | Volvo | S60 | T5 Dynamic | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2017 | Volvo | S60 | Polestar | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | ||
| 2017 | Volvo | V60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2016 | Volvo | S60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2016 | Volvo | S80 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2016 | Volvo | V60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2016 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2015 | Volvo | S60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2015 | Volvo | S80 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2015 | Volvo | V60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2015 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2014 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2013 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2012 | Volvo | S60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2012 | Volvo | S80 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2012 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2011 | Volvo | S60 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2011 | Volvo | S80 | Rear | Vented; Element3; Coated Rotor | |||
| 2011 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2010 | Volvo | S80 | Rear | Vented; Element3; Coated Rotor | |||
| 2010 | Volvo | V70 | Rear | Vented; Element3; Coated Rotor | |||
| 2010 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2009 | Volvo | S80 | T6 | Rear | Vented; Element3; Coated Rotor | ||
| 2009 | Volvo | S80 | V8 | Rear | Vented; Element3; Coated Rotor | ||
| 2009 | Volvo | XC70 | Rear | Only compatible with vented rotors.; Element3; Coated Rotor | |||
| 2008 | Volvo | S80 | 4.4L | V8 | Rear | Vented; Element3; Coated Rotor | |
| 2008 | Volvo | S80 | 3.0L | L6 | Rear | Vented; Element3; Coated Rotor | |
| 2008 | Volvo | XC70 | Rear | Electric Parking Brake; with Vented Rotors; Element3; Coated Rotor | |||
| 2007 | Volvo | S80 | 4.4L | V8 | Rear | Vented; Element3; Coated Rotor |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
