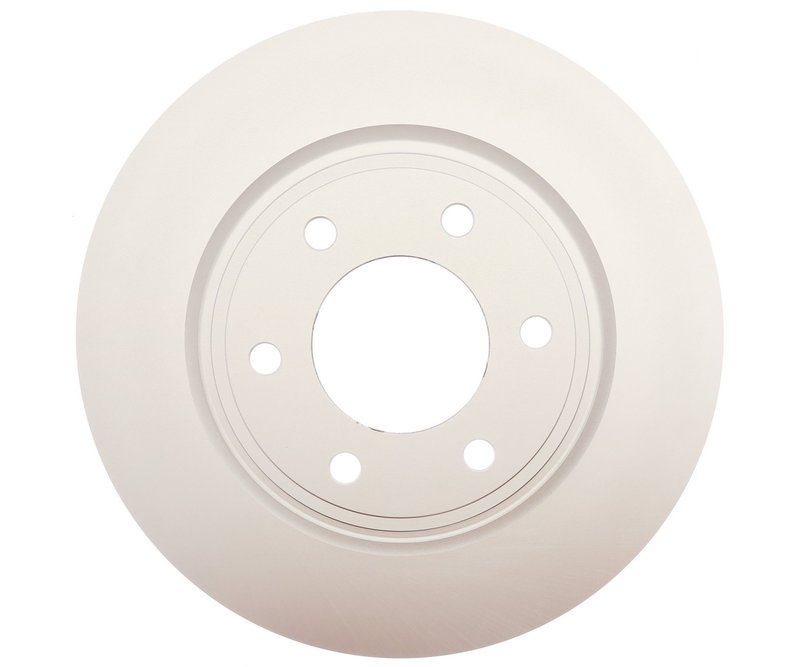

Raybestos 980630FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980630FZN is engineered for reliable braking performance on select Nissan and INFINITI vehicles. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for models like the Nissan TITAN and INFINITI QX80.

• Part Number: 980630FZN
• Brand Line: Element3; Coated Rotor
• Type: Vented Disc Brake Rotor
• Mounting Bolt Hole Quantity: 6
• Outside Diameter: 349.8 mm (13.772 in)
• Nominal Thickness: 30.0 mm (1.181 in)
• Discard Thickness: 28.5 mm (1.122 in)
• Inside Diameter: 228.7 mm (9.004 in)
• Center Hole Diameter: 90.1 mm (3.547 in)
• Surface Type: Smooth

Detailed Product Description and Specifications

This Raybestos disc brake rotor features a vented design that improves heat dissipation during braking, reducing the risk of brake fade on heavy-duty vehicles such as the Nissan Armada and INFINITI QX56. The rotor has a smooth surface type, which helps maintain consistent pad contact and braking efficiency. With an outside diameter of 349.8 mm and a nominal thickness of 30.0 mm, this rotor meets OEM specifications for the listed vehicles. The mounting bolt hole circle diameter is 139.7 mm with six mounting bolt holes, ensuring proper fitment and secure installation.

The Element3; Coated Rotor line from Raybestos is designed to provide corrosion resistance and extended rotor life through a protective coating. This coating helps prevent rust buildup, which can affect braking performance and rotor longevity. The conventional rotor design is compatible with drum-in-hat brake systems commonly found on the Nissan TITAN XD and similar models.

Compatible Vehicles and Applications

• INFINITI Armada, QX56, QX80
• Nissan TITAN, TITAN XD

This rotor is intended for use in disc brake systems on these specific models, providing replacement or upgrade options for worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake rotor warping due to heat buildup
• Corrosion and rust on rotor surfaces
• Reduced braking efficiency from worn rotors
• Brake noise caused by uneven rotor surfaces
• Vibration or pulsation during braking

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (28.5 mm) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications
• Inspect brake pads for wear and replace if necessary
• Perform a bed-in procedure after installation for optimal braking performance

Quality Assurance and Warranty

Raybestos Element3; Coated Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer service life. Warranty coverage details should be confirmed with the product documentation or manufacturer, as it may vary by application and region.
