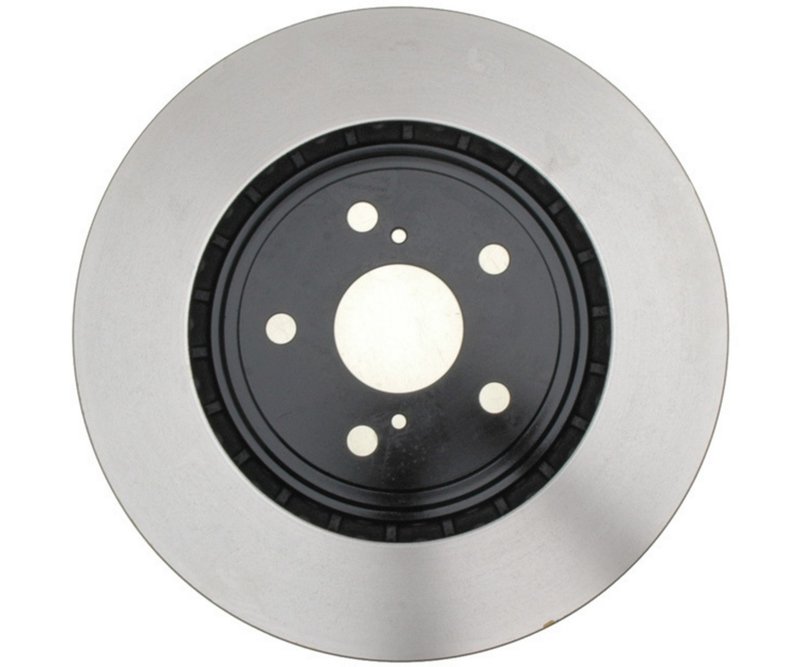

Raybestos 980636 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Specialty - Street Performance

Raybestos 980636 Disc Brake Rotor - Front

Brand Raybestos 980636
Position Front
Discard Thickness 0.980
Discard Thickness 24.900
Nominal Thickness 1.100
Nominal Thickness 27.950
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Diameter 114.300
Mounting Bolt Hole Diameter 4.500
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Specialty - Street Performance
Fits Lexus and Toyota · 48 vehicles

Street performance line. Built for spirited braking with a conventional disc brake rotor design.

Conventional rotor design. A straightforward replacement for dependable braking performance.

Cross-references Bosch 50011479, Centric Parts 120.44158 and Centric Parts 121.44158 for the same application. See all 50.

$108.76Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $108.76
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos 980636 Front Disc Brake Rotor

Raybestos 980636 is a front conventional disc brake rotor for select Lexus and Toyota applications, including Highlander, Sienna, RX350, RX450h, NX200t, NX300, and NX300h models. Built for the Raybestos Specialty - Street Performance line, it is sized for direct-fit front brake service where consistent rotor thickness and OE-style mounting dimensions matter.

Key Features

  • Front conventional disc brake rotor for street performance brake service
  • Nominal thickness: 1.100 in. / 27.950 mm
  • Discard thickness: 0.980 in. / 24.900 mm
  • Mounting bolt hole circle diameter: 4.500 in. / 114.300 mm
  • Conventional rotor design for straightforward front brake replacement
  • Raybestos part number 980636 for catalog and cross-reference lookup

Product Details

Raybestos 980636 is engineered as a conventional front rotor for vehicles that use a 4.500-inch bolt circle diameter. The rotor’s nominal and discard thickness specifications help buyers verify service limits during brake inspection and replacement. As part of the Specialty - Street Performance line, this rotor is positioned for drivers who want a front brake rotor that matches the application requirements of Lexus RX350 front brake service, Toyota Highlander front brake replacement, and Toyota Sienna front rotor applications.

This part cross-references Bosch 50011479 and Wagner Brake BD126565E for the same application. The Raybestos 980636 part number is also useful when matching interchange listings across aftermarket catalogs.

Common Uses

  • Front brake rotor replacement for worn or below-spec rotors
  • Correction of brake pulsation caused by rotor thickness variation
  • Service for front brake noise related to rotor wear or scoring
  • Restoration of proper braking surface on Lexus and Toyota front axle applications
  • Maintenance for vehicles requiring a conventional front disc brake rotor

Installation Notes

Verify rotor thickness, bolt circle diameter, and front position before installation. Confirm vehicle-specific fitment for 2010-2015 Lexus RX350 front, 2010-2015 Lexus RX450h front, 2015-2017 Lexus NX200t front, 2018-2021 Lexus NX300 front, 2015-2021 Lexus NX300h front, 2008-2019 Toyota Highlander front, and 2011-2020 Toyota Sienna front. Clean the hub mounting surface and inspect pads, calipers, and hardware condition before completing brake service.

Quality Assurance

Raybestos manufactures this rotor under its Specialty - Street Performance product line, with published dimensional specifications to support accurate brake part selection and fitment verification.

Related reading

This part fits 48 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2021LexusNX300FrontSpecialty - Street Performance
2021LexusNX300hFrontSpecialty - Street Performance
2020LexusNX300FrontSpecialty - Street Performance
2020LexusNX300hFrontSpecialty - Street Performance
2020ToyotaSiennaFrontSpecialty - Street Performance
2019LexusNX300FrontSpecialty - Street Performance
2019LexusNX300hFrontSpecialty - Street Performance
2019ToyotaHighlanderFrontSpecialty - Street Performance
2019ToyotaSiennaFrontSpecialty - Street Performance
2018LexusNX300FrontSpecialty - Street Performance
2018LexusNX300hFrontSpecialty - Street Performance
2018ToyotaHighlanderFrontSpecialty - Street Performance
2018ToyotaSiennaFrontSpecialty - Street Performance
2017LexusNX200tFrontSpecialty - Street Performance
2017LexusNX300hFrontSpecialty - Street Performance
2017ToyotaHighlanderFrontSpecialty - Street Performance
2017ToyotaSiennaFrontSpecialty - Street Performance
2016LexusNX200tFrontSpecialty - Street Performance
2016LexusNX300hFrontSpecialty - Street Performance
2016ToyotaHighlanderFrontSpecialty - Street Performance
2016ToyotaSiennaFrontSpecialty - Street Performance
2015LexusNX200tFrontSpecialty - Street Performance
2015LexusNX300hFrontSpecialty - Street Performance
2015LexusRX350FrontSpecialty - Street Performance
2015LexusRX450hFrontSpecialty - Street Performance
2015ToyotaHighlanderFrontSpecialty - Street Performance
2015ToyotaSiennaFrontSpecialty - Street Performance
2014LexusRX350FrontSpecialty - Street Performance
2014LexusRX450hFrontSpecialty - Street Performance
2014ToyotaHighlanderFrontSpecialty - Street Performance
2014ToyotaSiennaFrontSpecialty - Street Performance
2013LexusRX350FrontSpecialty - Street Performance
2013LexusRX450hFrontSpecialty - Street Performance
2013ToyotaHighlanderFrontSpecialty - Street Performance
2013ToyotaSiennaFrontSpecialty - Street Performance
2012LexusRX350FrontSpecialty - Street Performance
2012LexusRX450hFrontSpecialty - Street Performance
2012ToyotaHighlanderFrontSpecialty - Street Performance
2012ToyotaSiennaFrontSpecialty - Street Performance
2011LexusRX350FrontSpecialty - Street Performance
2011LexusRX450hFrontSpecialty - Street Performance
2011ToyotaHighlanderFrontSpecialty - Street Performance
2011ToyotaSiennaFrontSpecialty - Street Performance
2010LexusRX350FrontSpecialty - Street Performance
2010LexusRX450hFrontSpecialty - Street Performance
2010ToyotaHighlanderFrontSpecialty - Street Performance
2009ToyotaHighlanderFrontSpecialty - Street Performance
2008ToyotaHighlanderFrontSpecialty - Street Performance
Directly replaces or cross-references 50 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 50011479Centric Parts — 120.44158Centric Parts — 121.44158DuraGo — BR900566Dynamic Friction Company — 604-76138Gates — 31511Parts Authority — PRT5798PowerStop — JBR1310EVCPromax — 14-31511Raybestos Brakes — 980636Raybestos Brakes — 980636FZNRaybestos Brakes — 980636RStopTech — 126.44158CSLStopTech — 126.44158CSRStopTech — 126.44158SLStopTech — 126.44158SRStopTech — 127.44158LStopTech — 127.44158RStopTech — 128.44158CLStopTech — 128.44158CRStopTech — 128.44158LStopTech — 128.44158RStopTech — 227.44158LStopTech — 227.44158RValeo — 44607Wagner Brake — BD126565E20-31511120.44158CRY128.44158L1128.44158R1320.44158321.441583151044607DG200469326407435120E030579715980636RGS66209524351248110AX900566BD126565BR31511BR90056602PS126565YH145457YH200469YH200469CYH200469P
