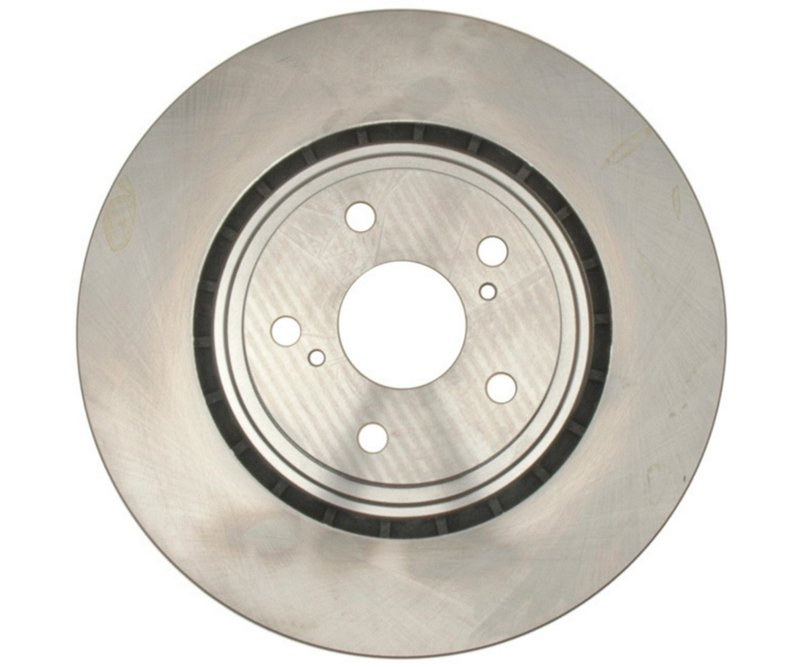

Raybestos 980636R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 980636R Disc Brake Rotor - Front

Brand Raybestos 980636R
Position Front
Discard Thickness 0.980
Discard Thickness 24.900
Nominal Thickness 1.100
Nominal Thickness 27.950
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Diameter 114.300
Mounting Bolt Hole Diameter 4.500
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line R-Line
Fits Lexus and Toyota · 48 vehicles

Conventional rotor. A straightforward disc brake rotor design for standard replacement needs.

Nominal thickness of 1.100 in. provides the proper braking surface profile.

Raybestos R-Line delivers a dependable brake component from a trusted brand line.

Cross-references Bosch 50011479, Centric Parts 120.44158 and Centric Parts 121.44158 for the same application. See all 50.

$79.69Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $79.69
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Disc Brake Rotor 980636R

Raybestos R-Line 980636R is a front disc brake rotor built for select Lexus and Toyota applications. It is a conventional rotor with a 1.100 in. nominal thickness and a 0.980 in. discard thickness, giving you the key dimensions needed for brake service and rotor replacement.

Compatible with front brake service on the Toyota Sienna, Toyota Highlander, Lexus RX350, Lexus RX450h, Lexus NX200t, Lexus NX300, and Lexus NX300h, this rotor is sized for vehicles using a 4.500 in. bolt circle diameter. The Raybestos 980636R is also cross-referenced to Bosch 50011479 for the same application.

Key Features

  • Part number: 980636R
  • Raybestos R-Line brake rotor for front axle applications
  • Conventional rotor design, not drum-in-hat type
  • Nominal thickness: 1.100 in. / 27.950 mm
  • Discard thickness: 0.980 in. / 24.900 mm
  • Mounting bolt hole circle diameter: 4.500 in. / 114.300 mm
  • Direct-fit replacement for select Lexus and Toyota front brake systems

Product Details

The Raybestos R-Line is positioned as a practical brake service line for everyday repair work, with dimensions and fitment coverage that matter during rotor replacement. This front disc brake rotor is listed for 2008-2019 Toyota Highlander, 2010-2015 Lexus RX350, 2010-2015 Lexus RX450h, 2011-2020 Toyota Sienna, 2015-2017 Lexus NX200t, 2015-2021 Lexus NX300h, and 2018-2021 Lexus NX300. If you are sourcing a Raybestos 980636R rotor for a Toyota Sienna or Lexus RX front brake job, the listed specifications help confirm the correct application before installation.

What It Helps Address

  • Rotor wear that has reached discard thickness
  • Brake pulsation caused by an out-of-spec front rotor
  • Uneven braking feel during routine brake service
  • Replacement needs after scoring, heat checking, or corrosion
  • Front brake maintenance on listed Lexus and Toyota models

Installation Notes and Tips

Verify rotor thickness, bolt circle diameter, and vehicle application before installation. This rotor is for front position use only and is listed as a conventional rotor. Always inspect pads, calipers, and hub surfaces during brake service, and confirm the rotor meets the vehicle’s required dimensions before returning the vehicle to service.

Quality Assurance

Raybestos is a recognized brake parts brand with broad aftermarket coverage, and the R-Line is built for service replacement applications. This part cross-references Bosch 50011479 for the same application.

Related reading

This part fits 48 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2021LexusNX300FrontR-Line
2021LexusNX300hFrontR-Line
2020LexusNX300FrontR-Line
2020LexusNX300hFrontR-Line
2020ToyotaSiennaFrontR-Line
2019LexusNX300FrontR-Line
2019LexusNX300hFrontR-Line
2019ToyotaHighlanderFrontR-Line
2019ToyotaSiennaFrontR-Line
2018LexusNX300FrontR-Line
2018LexusNX300hFrontR-Line
2018ToyotaHighlanderFrontR-Line
2018ToyotaSiennaFrontR-Line
2017LexusNX200tFrontR-Line
2017LexusNX300hFrontR-Line
2017ToyotaHighlanderFrontR-Line
2017ToyotaSiennaFrontR-Line
2016LexusNX200tFrontR-Line
2016LexusNX300hFrontR-Line
2016ToyotaHighlanderFrontR-Line
2016ToyotaSiennaFrontR-Line
2015LexusNX200tFrontR-Line
2015LexusNX300hFrontR-Line
2015LexusRX350FrontR-Line
2015LexusRX450hFrontR-Line
2015ToyotaHighlanderFrontR-Line
2015ToyotaSiennaFrontR-Line
2014LexusRX350FrontR-Line
2014LexusRX450hFrontR-Line
2014ToyotaHighlanderFrontR-Line
2014ToyotaSiennaFrontR-Line
2013LexusRX350FrontR-Line
2013LexusRX450hFrontR-Line
2013ToyotaHighlanderFrontR-Line
2013ToyotaSiennaFrontR-Line
2012LexusRX350FrontR-Line
2012LexusRX450hFrontR-Line
2012ToyotaHighlanderFrontR-Line
2012ToyotaSiennaFrontR-Line
2011LexusRX350FrontR-Line
2011LexusRX450hFrontR-Line
2011ToyotaHighlanderFrontR-Line
2011ToyotaSiennaFrontR-Line
2010LexusRX350FrontR-Line
2010LexusRX450hFrontR-Line
2010ToyotaHighlanderFrontR-Line
2009ToyotaHighlanderFrontR-Line
2008ToyotaHighlanderFrontR-Line
Directly replaces or cross-references 50 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 50011479Centric Parts — 120.44158Centric Parts — 121.44158DuraGo — BR900566Dynamic Friction Company — 604-76138Gates — 31511Parts Authority — PRT5798PowerStop — JBR1310EVCPromax — 14-31511Raybestos Brakes — 980636Raybestos Brakes — 980636FZNRaybestos Brakes — 980636RStopTech — 126.44158CSLStopTech — 126.44158CSRStopTech — 126.44158SLStopTech — 126.44158SRStopTech — 127.44158LStopTech — 127.44158RStopTech — 128.44158CLStopTech — 128.44158CRStopTech — 128.44158LStopTech — 128.44158RStopTech — 227.44158LStopTech — 227.44158RValeo — 44607Wagner Brake — BD126565E20-31511120.44158CRY128.44158L1128.44158R1320.44158321.441583151044607DG200469326407435120E030579715980636RGS66209524351248110AX900566BD126565BR31511BR90056602PS126565YH145457YH200469YH200469CYH200469P
