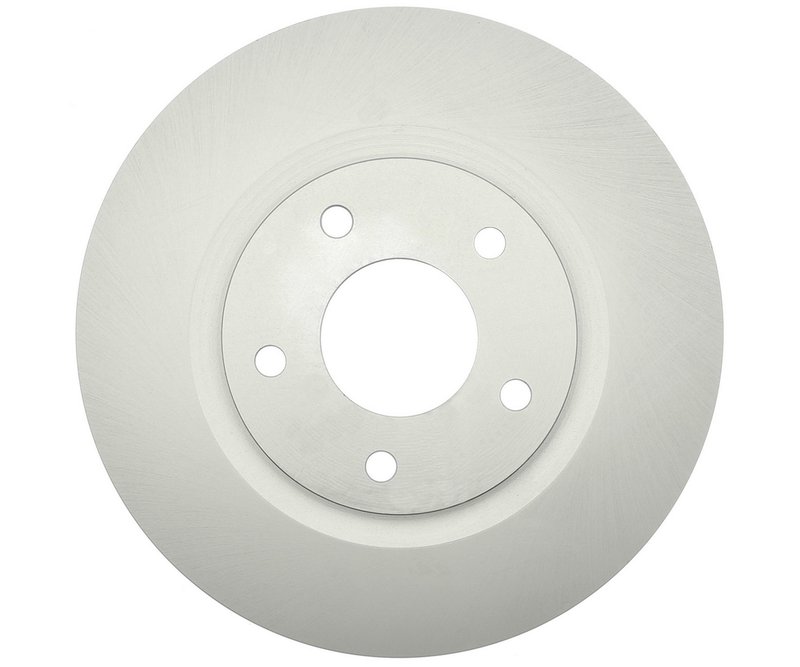

Raybestos 980637FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980637FZN is engineered for reliable braking performance on Nissan vehicles including the Rogue, Rogue Select, Sentra, and X-Trail. This vented disc brake rotor is designed to meet OEM specifications and provide consistent stopping power under various driving conditions.

• Part Number: 980637FZN
• Compatible with Nissan Rogue, Rogue Select, Sentra, and X-Trail
• Vented disc brake rotor with smooth surface finish
• Full cast construction for durability
• Nominal thickness of 1.024 inches (26.000 mm) and discard thickness of 0.945 inches (24.000 mm)
• Five mounting bolt holes with 0.495 inch (12.550 mm) diameter
• Center hole diameter of 2.677 inches (68.000 mm)
• Conventional rotor type with no ABS tone ring included

Raybestos Element3; Coated Rotor Product Line

The Element3; Coated Rotor line from Raybestos focuses on providing rotors with a protective coating that helps resist corrosion and extends rotor life. This coating also aids in maintaining a clean surface for optimal brake pad contact. The 980637FZN rotor benefits from this coating, ensuring consistent performance and durability for Nissan vehicles requiring vented, conventional rotors.

Technical Specifications and Features

This disc brake rotor features a full cast construction that enhances strength and heat dissipation. The vented design improves airflow to reduce brake fade during extended use. With a smooth surface type, it ensures even pad wear and quiet braking. The rotor measures 11.646 inches (295.800 mm) in outside diameter and 7.520 inches (191.000 mm) inside diameter, fitting precisely on compatible Nissan models. The mounting bolt hole circle diameter is 4.500 inches (114.300 mm), accommodating five lug holes with a diameter of 0.495 inches (12.550 mm).

Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan Rogue, Rogue Select, Sentra, and X-Trail
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking performance by restoring proper rotor thickness
• Helps reduce brake fade during heavy or prolonged braking
• Prevents corrosion-related rotor damage with protective coating

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.945 inches / 24.000 mm) before installation
• Clean mounting surfaces to prevent rotor runout and vibration
• Torque lug nuts to manufacturer specifications for secure fitment
• Check compatibility with vehicle ABS system; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The Element3; Coated Rotor 980637FZN undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details vary, Raybestos typically offers limited warranties covering defects in materials and workmanship.
