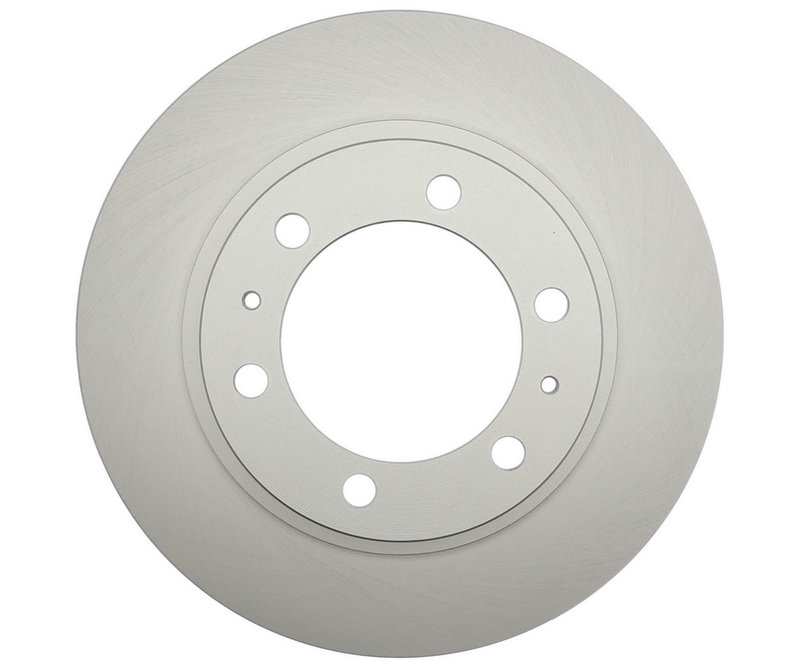

Raybestos 980670FZN Disc Brake Rotor - Front

Raybestos Element3 Front Rotor for Tacoma and 4Runner

The Raybestos 980670FZN is a front disc brake rotor built for Toyota truck and SUV applications that call for a conventional rotor design. As part of the Raybestos Element3; Coated Rotor line, it is made for drivers looking for a direct-fit replacement for select Toyota Tacoma, FJ Cruiser, and 4Runner models.

Key Features

• Part number: 980670FZN
• Front disc brake rotor with conventional construction
• Element3; Coated Rotor product line
• Nominal thickness: 1.100 in. / 27.950 mm
• Discard thickness: 1.020 in. / 25.900 mm
• Overall height: 2.646 in. / 67.200 mm
• Center hole diameter: 5.500 in. / 139.700 mm
• Mounting bolt hole circle diameter: 5.500 in. / 139.700 mm
• Cross-references Bosch 50011243 and Wagner Brake BD180819E

Element3 Coated Rotor Details

Raybestos Element3 coated rotors are positioned for everyday braking service where consistent fit and corrosion-resistant rotor surfaces matter. This rotor is specified for front axle use on 2003-2023 Toyota Tacoma, 2003-2009 Toyota 4Runner, and 2007-2014 Toyota FJ Cruiser applications listed below. The 980670FZN matches common OE-style dimensions for Toyota front brake service and is a direct replacement option for vehicles with the listed rotor configuration.

Vehicle Fitment

• Fits 2023 Toyota Tacoma, front
• Fits 2021-2022 Toyota Tacoma, front
• Fits 2008-2020 Toyota Tacoma, front, 6 lug wheels fitment
• Fits 2005-2007 Toyota Tacoma, front, 6 lug
• Fits 2008-2014 Toyota FJ Cruiser, front
• Fits 2007 Toyota FJ Cruiser, front
• Fits 2008-2009 Toyota 4Runner, front, with 12.5" front rotor
• Fits 2003-2007 Toyota 4Runner, front, 319mm front disc

Common Problems This Rotor Addresses

• Front rotor wear that has reached discard thickness
• Brake pulsation from rotor thickness variation or surface wear
• Corrosion on the braking surface or rotor hat area
• Reduced braking consistency during daily driving and stop-and-go use
• Noise or vibration caused by an uneven or worn front rotor

Installation Notes

Verify rotor diameter, thickness, center hole diameter, and bolt circle before installation. This rotor is for front position use only and should be matched to the vehicle’s brake package, including the 6-lug Tacoma applications and the 319mm or 12.5" front rotor configurations listed above. Always inspect pads, calipers, and hub surfaces during brake service to help ensure proper rotor seating and even braking performance.

Quality Assurance

Raybestos is a recognized brake parts brand with OE-style replacement coverage across a wide range of passenger and light truck applications. The Element3 line combines coated rotor construction with application-specific fitment for Toyota Tacoma, Toyota 4Runner, and Toyota FJ Cruiser front brake service.
