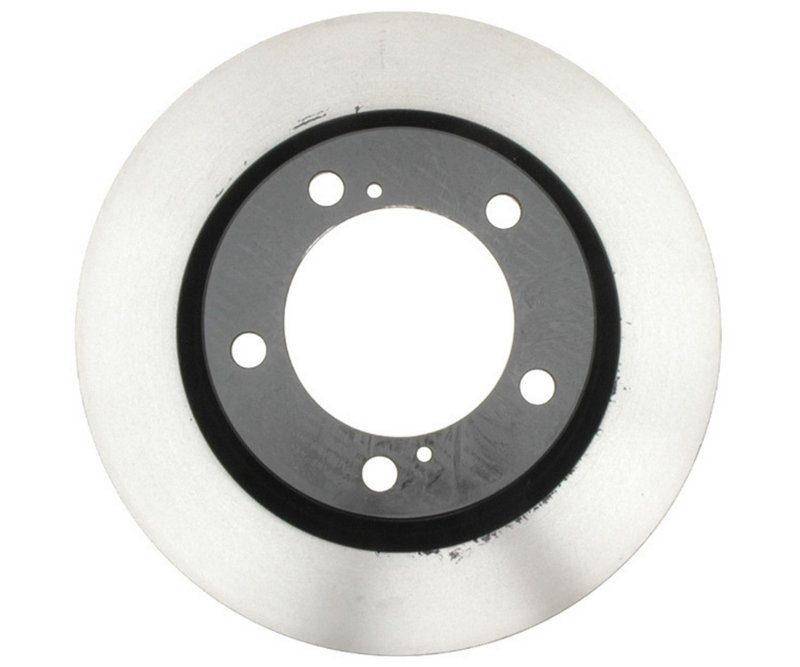

Raybestos 980671 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Specialty - Truck

Raybestos 980671 Disc Brake Rotor - Front

Brand Raybestos 980671
Position Front
Discard Thickness 1.142
Discard Thickness 29.000
Nominal Thickness 1.260
Nominal Thickness 32.000
Inside Diameter 231.500
Inside Diameter 9.114
Overall Height 3.278
Overall Height 83.250
Outside Diameter 13.386
Outside Diameter 340.000
Mounting Bolt Hole Quantity 5
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 112.000
Center Hole Diameter 4.409
Mounting Bolt Hole Circle Diameter 150.000
Mounting Bolt Hole Circle Diameter 5.906
Mounting Bolt Hole Diameter 0.645
Mounting Bolt Hole Diameter 16.400
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Specialty - Truck
Fits Lexus and Toyota · 20 vehicles

Vented rotor. Helps dissipate heat for more consistent braking performance.

Smooth surface. Provides a clean contact area for dependable pad engagement.

Truck specialty line. Built for demanding brake applications with Raybestos engineering.

Cross-references Bosch 50011498, Centric Parts 120.44162 and Centric Parts 121.44162 for the same application. See all 35.

$109.92Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $109.92
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Front Disc Brake Rotor for Land Cruiser and LX570

Raybestos Specialty - Truck rotor 980671 is a front vented disc brake rotor built for select Toyota Land Cruiser and Lexus LX570 applications. With a 340 mm outside diameter and smooth surface type, it matches the specified truck-duty fitment for 2008-2020 front brake service.

Key Features

  • Part number 980671 from Raybestos Specialty - Truck
  • Front position disc brake rotor
  • Vented rotor design with smooth surface
  • Outside diameter: 340.000 mm / 13.386 in
  • Nominal thickness: 32.000 mm / 1.260 in
  • Discard thickness: 29.000 mm / 1.142 in
  • Center hole diameter: 112.000 mm / 4.409 in
  • Mounting bolt hole quantity: 5
  • Mounting bolt hole circle diameter: 150.000 mm / 5.906 in
  • Mounting bolt hole diameter: 16.400 mm / 0.645 in
  • Overall height: 83.250 mm / 3.278 in
  • Conventional rotor design

Product Details

Raybestos 980671 is a Specialty - Truck brake rotor engineered around the listed OE-style dimensions for front axle service on the Toyota Land Cruiser and Lexus LX570. The vented construction supports heat management during repeated braking, while the smooth rotor surface provides the correct foundation for pad contact and brake system maintenance. This part cross-references Bosch 50011498 for the same application.

Common Brake Issues This Rotor Can Address

  • Front brake pulsation caused by rotor wear or thickness variation
  • Brake noise related to uneven rotor surfaces
  • Reduced braking consistency from a worn front rotor
  • Rotor replacement needs after reaching discard thickness
  • Service requirements on Toyota Land Cruiser and Lexus LX570 front brake systems

Installation Notes and Fitment

Fits 2016-2020 Toyota Land Cruiser, front. Fits 2013-2015 Toyota Land Cruiser, front. Fits 2008-2011 Toyota Land Cruiser, front. Fits 2016 Lexus LX570, front. Fits 2013-2015 Lexus LX570, front. Fits 2008-2011 Lexus LX570, front. Verify rotor diameter, bolt pattern, and hub dimensions against the vehicle before installation. Clean the hub mounting surface and confirm pad and caliper condition during brake service. Raybestos 980671 is listed for front use only.

Quality Assurance

Raybestos Specialty - Truck parts are cataloged with application-specific dimensions and fitment data to support accurate brake service selection for the Toyota Land Cruiser and Lexus LX570 platform.

Related reading

This part fits 20 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2020ToyotaLand CruiserFrontRotor Diameter 340 MM; Specialty - Truck
2019ToyotaLand CruiserFrontRotor Diameter 340 MM; Specialty - Truck
2018ToyotaLand CruiserFrontRotor Diameter 340 MM; Specialty - Truck
2017ToyotaLand CruiserFrontRotor Diameter 340 MM; Specialty - Truck
2016LexusLX570FrontRaybestos Specialty - Truck
2016ToyotaLand CruiserFrontRotor Diameter 340 MM; Specialty - Truck
2015LexusLX570FrontSpecialty - Truck
2015ToyotaLand CruiserFrontSpecialty - Truck
2014LexusLX570FrontSpecialty - Truck
2014ToyotaLand CruiserFrontSpecialty - Truck
2013LexusLX570FrontSpecialty - Truck
2013ToyotaLand CruiserFrontSpecialty - Truck
2011LexusLX570FrontSpecialty - Truck
2011ToyotaLand CruiserFrontSpecialty - Truck
2010LexusLX570FrontSpecialty - Truck
2010ToyotaLand CruiserFrontSpecialty - Truck
2009LexusLX570FrontSpecialty - Truck
2009ToyotaLand CruiserFrontSpecialty - Truck
2008LexusLX570FrontSpecialty - Truck
2008ToyotaLand CruiserFrontSpecialty - Truck
Directly replaces or cross-references 35 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 50011498Centric Parts — 120.44162Centric Parts — 121.44162Centric Parts — 320.44162DuraGo — BR900572Febi-Bilstein — 31521Parts Authority — PRT5908PowerStop — JBR1312EVCPromax — 14-31521Raybestos Brakes — 980671Raybestos Brakes — 980671FZNStopTech — 120.44162CRYStopTech — 126.44162SLStopTech — 126.44162SRStopTech — 127.44162CLStopTech — 127.44162CRStopTech — 127.44162LStopTech — 127.44162RStopTech — 128.44162LStopTech — 128.44162RStopTech — 227.44162LStopTech — 227.44162R126.44162CSL126.44162CSR128.44162CL128.44162CR44651DG66210464351260180BD126570BD126570EBR31521TSR9722YH248402YH248402P
