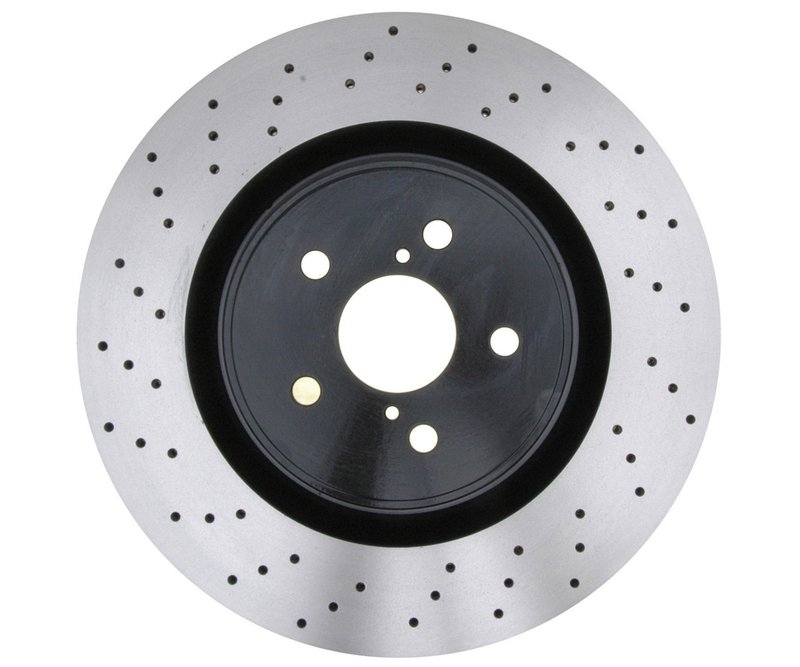

Raybestos 980675 Disc Brake Rotor - Front
| Brand | Raybestos 980675 |
|---|---|
| Position | Front |
| Discard Thickness | 1.102 |
| Discard Thickness | 28.000 |
| Nominal Thickness | 1.181 |
| Nominal Thickness | 30.000 |
| Inside Diameter | 238.000 |
| Inside Diameter | 9.370 |
| Overall Height | 2.382 |
| Overall Height | 60.500 |
| Outside Diameter | 14.173 |
| Outside Diameter | 360.000 |
| Mounting Bolt Hole Quantity | 5 |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.441 |
| Center Hole Diameter | 62.000 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Mounting Bolt Hole Diameter | 0.566 |
| Mounting Bolt Hole Diameter | 14.400 |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Product line | Specialty - Street Performance |
| Fits | Lexus · 7 vehicles |
Vented rotor. Promotes airflow for more consistent braking performance.
Smooth surface. Provides even pad contact for quiet, predictable stops.
Street Performance line. Built for Raybestos performance-focused brake applications.
Cross-references Centric Parts 128.44164, Centric Parts 228.44164 and Gates 31525 for the same application. See all 18.
Raybestos 980675 Front Brake Rotor for Lexus IS F
The Raybestos 980675 is a vented front disc brake rotor for 2008-2014 Lexus IS F applications. Built in the Specialty - Street Performance line, it focuses on consistent braking feel, smooth rotor surface contact, and the dimensional accuracy needed for performance-oriented street use.
Key Features
- Fits 2008-2014 Lexus IS F, front
- Raybestos Specialty - Street Performance rotor line
- Vented, conventional disc brake rotor design
- Smooth surface type for even pad contact
- Outside diameter: 14.173 in. / 360.000 mm
- Nominal thickness: 1.181 in. / 30.000 mm
- Discard thickness: 1.102 in. / 28.000 mm
- 5-lug mounting pattern with 114.300 mm bolt circle
- Center hole diameter: 2.441 in. / 62.000 mm
Product Details
Raybestos 980675 is a front brake rotor engineered for the Lexus IS F platform from 2008 through 2014. The vented construction helps manage heat during repeated stops, while the smooth friction surface supports stable pad engagement. With a 360 mm outside diameter, 30 mm nominal thickness, and 60.500 mm overall height, this rotor matches the dimensional requirements of the listed front brake application. This part cross-references Centric Parts 128.44164 for the same application.
Common Reasons to Replace
- Brake pulsation or steering wheel shake during braking
- Rotor wear approaching discard thickness
- Uneven pad contact or surface scoring
- Heat-related braking fade from repeated street use
- Noise or vibration traced to rotor condition
Installation Notes and Tips
Verify rotor dimensions, hub fit, and bolt pattern before installation on the Lexus IS F. Inspect brake pads, caliper condition, and hub surfaces at the same time to help ensure proper rotor seating and even contact. Clean the friction surfaces before service and confirm the rotor is installed at the front position specified for the vehicle.
Quality Assurance
Raybestos Specialty - Street Performance parts are built for street-focused braking applications where fit, thickness, and rotor geometry matter. Part number 980675 is specified for the front axle on 2008-2014 Lexus IS F models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Lexus | IS F | Front | Specialty - Street Performance |
| 2013 | Lexus | IS F | Front | Specialty - Street Performance |
| 2012 | Lexus | IS F | Front | Specialty - Street Performance |
| 2011 | Lexus | IS F | Front | Specialty - Street Performance |
| 2010 | Lexus | IS F | Front | Specialty - Street Performance |
| 2009 | Lexus | IS F | Front | Specialty - Street Performance |
| 2008 | Lexus | IS F | Front | Specialty - Street Performance |
| No rows match your filter. | ||||
