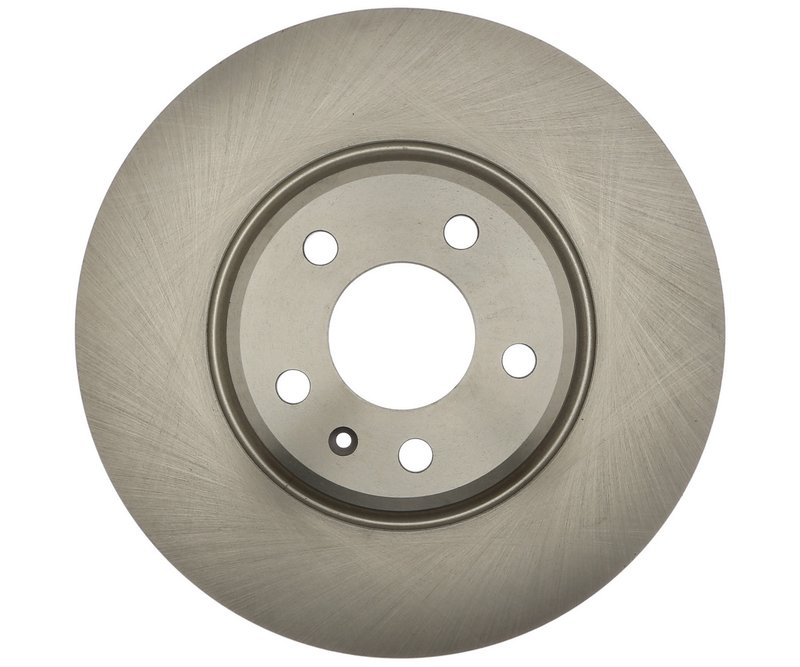

Raybestos 980697R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 980697R

The Raybestos R-Line Disc Brake Rotor 980697R is engineered for reliable braking performance on select Audi models. Designed specifically for vehicles like the Audi A4, A4 allroad, A4 Quattro, A5, A5 Quattro, and Q5, this vented rotor ensures consistent heat dissipation and smooth braking under various driving conditions.

• Compatible with Audi A4, A4 allroad, A4 Quattro, A5, A5 Quattro, and Q5
• Part number 980697R for precise identification
• Vented disc brake rotor design for improved cooling
• Overall height of 2.047 inches (52.000 mm) and outside diameter of 12.591 inches (319.800 mm)
• Mounting bolt hole quantity: 5 with a 4.409 inch (112.000 mm) bolt circle diameter
• Smooth surface type for consistent pad contact
• Nominal thickness of 1.177 inches (29.900 mm) with discard thickness at 1.102 inches (28.000 mm)

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable braking components that meet or exceed OEM specifications. This product line emphasizes durability and performance, making it suitable for drivers who require consistent stopping power. The 980697R rotor benefits from the R-Line's engineering standards, providing a vented rotor design that helps maintain optimal operating temperatures during braking.

Technical Specifications and Features

This conventional vented disc brake rotor features a smooth surface type that promotes even pad wear and reliable braking response. The rotor's inside diameter measures 7.440 inches (189.000 mm), with a center hole diameter of 2.677 inches (68.000 mm). It includes five mounting bolt holes, each with a diameter of 0.595 inches (15.100 mm), arranged on a 4.409 inch (112.000 mm) bolt circle diameter. The nominal thickness of 1.177 inches (29.900 mm) ensures structural integrity, while the discard thickness of 1.102 inches (28.000 mm) indicates when replacement is necessary to maintain safety and performance.

Applications and Problem Solving

• Replacement for worn or warped rotors on Audi A4 and A5 models
• Improves braking performance on Audi Q5 vehicles experiencing heat fade
• Addresses rotor thickness below manufacturer specifications
• Resolves issues with uneven brake pad wear due to rotor surface imperfections
• Enhances cooling efficiency to reduce brake fade during extended use

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Perform a bed-in procedure after installation to maximize braking efficiency

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 980697R should be confirmed with the supplier, Raybestos typically offers coverage against defects in materials and workmanship. This rotor is designed to provide reliable service life when installed and maintained according to manufacturer guidelines.
