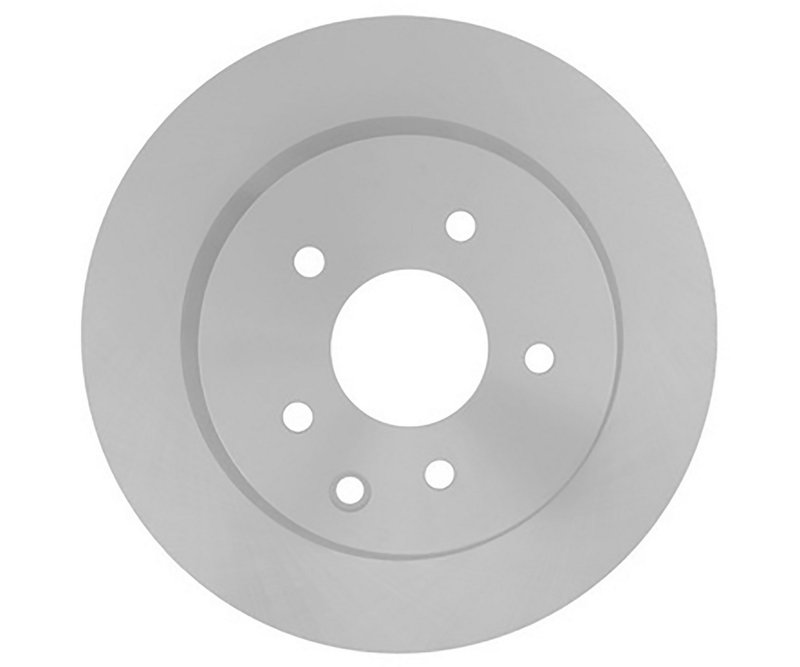

Raybestos 980710FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor 980710FZN

The Raybestos Element3; Coated Rotor 980710FZN is engineered for reliable braking performance on Nissan Maxima models. This vented disc brake rotor features a durable coating designed to resist corrosion and extend rotor life under typical driving conditions.

• Compatible with Nissan Maxima vehicles
• Part number 980710FZN for precise identification
• Vented disc brake rotor with drum-in-hat design
• Coated surface to reduce rust and corrosion
• Mounting bolt hole quantity: 5 for secure fitment
• Nominal thickness: 0.631 inches (16.050 mm)
• Discard thickness: 0.551 inches (14.000 mm)
• Outside diameter: 12.117 inches (307.750 mm)
• Inside diameter: 8.376 inches (212.750 mm)
• Overall height: 2.439 inches (61.950 mm)

Detailed Product Description

This Raybestos disc brake rotor is designed specifically for Nissan Maxima models, ensuring proper fit and function. The rotor features a vented design that helps dissipate heat more effectively during braking, reducing the risk of brake fade. The drum-in-hat type rotor integrates a parking brake drum, combining two functions into one component. The smooth surface type provides consistent contact with brake pads for reliable stopping power.

The rotor's nominal thickness of 0.631 inches (16.050 mm) and discard thickness of 0.551 inches (14.000 mm) define the usable lifespan before replacement is necessary. The 5 mounting bolt holes and 5 stud/lug holes with a bolt circle diameter of 4.500 inches (114.300 mm) ensure secure installation on compatible Nissan Maxima models. The coated finish helps protect the rotor from rust and corrosion, maintaining performance and appearance over time.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos focuses on providing rotors with a protective coating that resists rust and corrosion, which is especially beneficial in regions with harsh weather or road salt exposure. This coating extends the rotor's service life while maintaining consistent braking performance. The 980710FZN part is a representative example of this line, combining vented rotor technology with a durable finish tailored for Nissan Maxima vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan Maxima
• Addresses brake noise caused by uneven rotor surfaces
• Helps reduce brake fade from overheating during extended use
• Prevents rust buildup that can impair braking efficiency
• Restores proper parking brake function with integrated drum-in-hat design

Installation Notes and Tips

• Verify compatibility with your Nissan Maxima model year before installation
• Inspect mounting hardware and replace if worn or damaged
• Ensure rotor thickness is above discard thickness before reuse
• Follow manufacturer torque specifications for mounting bolts
• Perform a brake system bleed after installation to maintain brake responsiveness

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor 980710FZN to meet or exceed OEM specifications for Nissan Maxima vehicles. The rotor undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or Raybestos directly for exact warranty terms.
