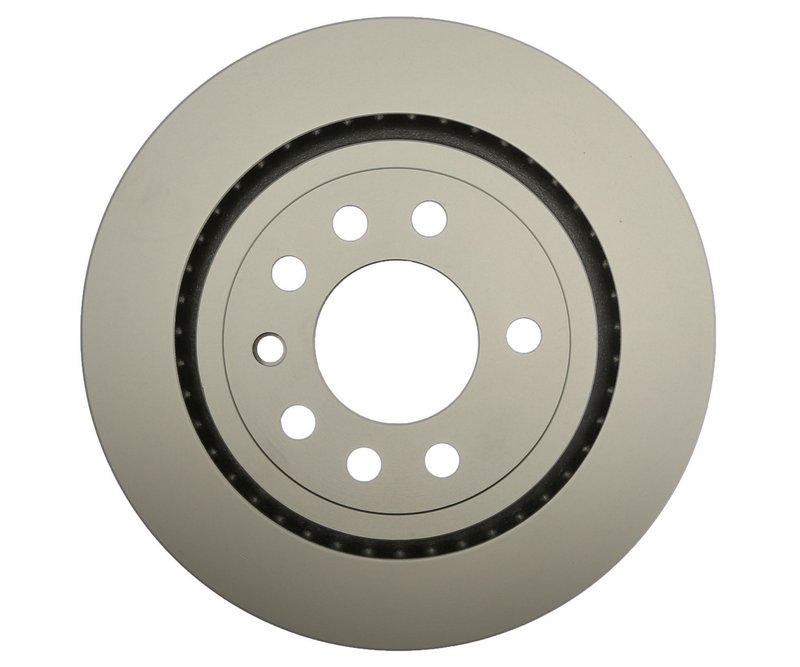

Raybestos 980740FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor 980740FZN

The Raybestos Element3; Coated Rotor 980740FZN is engineered for reliable braking performance on Saab 9-3 and 9-3X models. This disc brake rotor features a vented design and a smooth surface to ensure consistent heat dissipation and braking efficiency.

• Compatible with Saab 9-3 and 9-3X vehicles
• Part number 980740FZN for precise identification
• Vented disc brake rotor with smooth surface finish
• Drum-in-hat rotor type with 5 mounting bolt holes
• Nominal thickness of 0.787 inches (20.000 mm) and discard thickness of 0.709 inches (18.000 mm)
• Outside diameter of 11.484 inches (291.700 mm) and inside diameter of 8.012 inches (203.500 mm)
• Overall height of 1.717 inches (43.600 mm)
• Center hole diameter of 2.756 inches (70.000 mm)

Detailed Product Specifications

This Raybestos disc brake rotor is designed with a vented construction to improve heat dissipation during braking, reducing the risk of brake fade. The smooth surface type ensures even pad contact and consistent braking performance. The rotor features a drum-in-hat design, integrating the drum brake surface within the rotor assembly, which is common for certain Saab 9-3 and 9-3X rear brake configurations.

With a nominal thickness of 0.787 inches (20.000 mm) and a discard thickness of 0.709 inches (18.000 mm), this rotor meets the necessary specifications for safe operation and replacement intervals. The rotor's outside diameter measures 11.484 inches (291.700 mm), while the inside diameter is 8.012 inches (203.500 mm), ensuring proper fitment on compatible Saab models. The mounting bolt hole quantity is 5, with a bolt circle diameter of 4.331 inches (110.000 mm) and bolt hole diameter of 0.557 inches (14.150 mm), matching factory specifications.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line from Raybestos is designed to provide enhanced corrosion resistance and durability through a specialized coating process. This coating helps protect the rotor surface from rust and environmental damage, extending the service life of the rotor. The 980740FZN rotor benefits from this coating, making it suitable for Saab 9-3 and 9-3X owners seeking a reliable replacement part that maintains performance over time.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Saab 9-3 and 9-3X
• Addresses brake pulsation caused by uneven rotor surfaces
• Resolves noise issues related to rotor surface imperfections
• Improves braking consistency by restoring proper rotor thickness
• Prevents premature rotor corrosion with coated surface technology

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.709 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to maintain optimal braking
• Check for proper alignment of the drum-in-hat assembly during installation

Quality Assurance and Warranty

Raybestos disc brake rotors, including the Element3; Coated Rotor 980740FZN, are manufactured to meet or exceed OEM standards. The coating process enhances corrosion resistance, contributing to long-term durability. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Always refer to the product packaging or manufacturer documentation for exact warranty terms.
