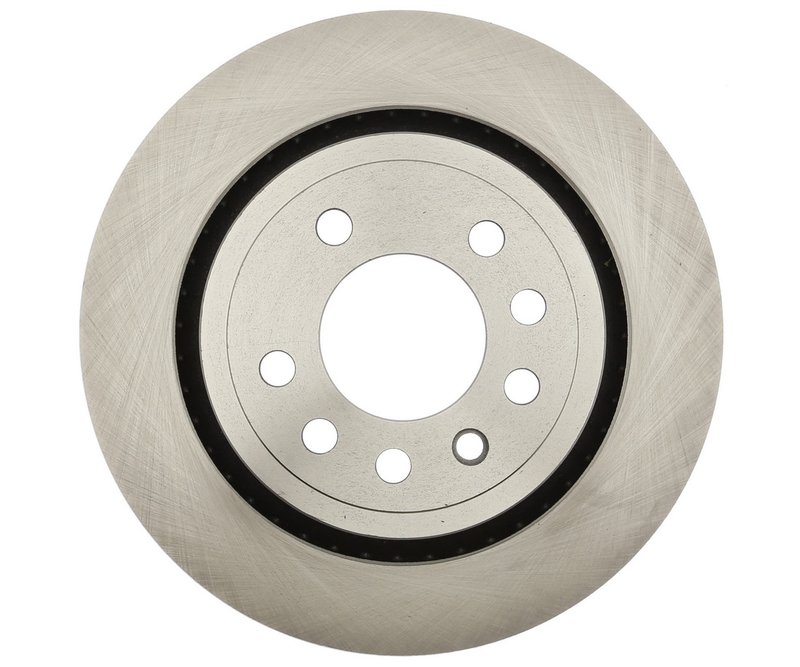

Raybestos 980740R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 980740R

The Raybestos R-Line 980740R disc brake rotor is engineered for reliable braking performance on Saab 9-3 and 9-3X models. Designed as a vented, drum-in-hat rotor, it offers efficient heat dissipation and durability for consistent stopping power.

• Compatible with Saab 9-3 and 9-3X vehicles
• Vented disc brake rotor with drum-in-hat design
• Overall diameter: 291.7 mm (11.484 inches)
• Nominal thickness: 20.0 mm (0.787 inches)
• Discard thickness: 18.0 mm (0.709 inches)
• Mounting bolt hole quantity: 5 with 110 mm (4.331 inches) bolt circle diameter
• Center hole diameter: 70.0 mm (2.756 inches)
• Smooth surface type for consistent pad contact

Detailed Product Description

The Raybestos R-Line 980740R rotor is a vented disc brake rotor featuring a drum-in-hat design, which integrates the parking brake drum within the rotor assembly. This design is specific to certain Saab 9-3 and 9-3X models, providing both braking and parking brake functions in one component. The rotor has a smooth surface finish to ensure even brake pad wear and reliable friction. Its vented construction improves heat dissipation during braking, reducing the risk of brake fade under demanding conditions.

Key dimensions include an outside diameter of 291.7 mm (11.484 inches), an inside diameter of 203.5 mm (8.012 inches), and an overall height of 43.6 mm (1.717 inches). The nominal thickness is 20.0 mm (0.787 inches), with a discard thickness of 18.0 mm (0.709 inches), indicating when the rotor should be replaced to maintain safe braking performance. The rotor mounts with five bolts on a 110 mm (4.331 inches) bolt circle diameter, matching the factory specifications for the Saab 9-3 and 9-3X.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OE-quality brake components designed to meet the specific requirements of various vehicle applications. The R-Line rotors are engineered to provide consistent performance and durability, making them suitable for drivers who require dependable braking without extensive modifications. The 980740R rotor exemplifies this approach by combining vented rotor technology with a drum-in-hat design tailored for Saab models.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Saab 9-3 and 9-3X
• Resolves brake pulsation caused by uneven rotor thickness
• Addresses reduced braking efficiency due to rotor overheating
• Restores proper parking brake function integrated in the rotor
• Eliminates noise and vibration from damaged or scored rotors

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (18.0 mm) before installation
• Clean mounting surfaces to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Check compatibility with Saab 9-3 and 9-3X models before installation

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 980740R rotor undergoes rigorous quality control to ensure consistent thickness, balance, and material integrity. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship, providing confidence in the product's durability and performance.
