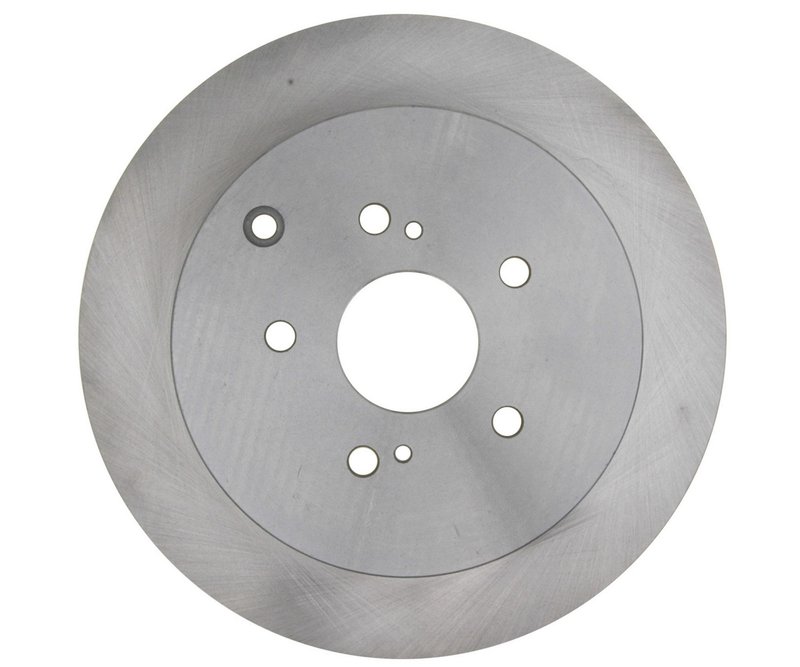

Raybestos 980747R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 980747R

The Raybestos R-Line Disc Brake Rotor 980747R is engineered for reliable braking performance on Suzuki Grand Vitara models. This vented, drum-in-hat type rotor is designed to meet precise fitment specifications, ensuring compatibility and durability for your vehicle's braking system.

• Compatible with Suzuki Grand Vitara
• Part Number: 980747R
• Vented disc brake rotor with drum-in-hat design
• 5 mounting bolt holes and 5 stud/lug holes
• Nominal thickness: 0.634 inches (16.1 mm)
• Discard thickness: 0.551 inches (14.0 mm)
• Outside diameter: 12.126 inches (308.0 mm)
• Inside diameter: 8.890 inches (225.8 mm)
• Overall height: 2.249 inches (57.1 mm)
• Smooth surface type for consistent braking
• Center hole diameter: 2.440 inches (62.0 mm)
• Mounting bolt hole circle diameter: 4.500 inches (114.3 mm)

Detailed Product Description

The Raybestos R-Line 980747R disc brake rotor is specifically designed for Suzuki Grand Vitara vehicles requiring a vented rotor with a drum-in-hat configuration. This rotor features a smooth surface type that promotes even pad wear and consistent braking performance. The vented design helps dissipate heat effectively, reducing the risk of brake fade during extended use. With a nominal thickness of 0.634 inches and a discard thickness of 0.551 inches, this rotor maintains structural integrity and safety standards throughout its service life.

The rotor's dimensions include an outside diameter of 12.126 inches and an inside diameter of 8.890 inches, ensuring proper fitment with the vehicle's braking components. The 5 mounting bolt holes and stud/lug holes, along with a mounting bolt hole circle diameter of 4.500 inches, align precisely with the Suzuki Grand Vitara's hub assembly. The overall height of 2.249 inches accommodates the drum-in-hat design, integrating the parking brake drum within the rotor for a compact and efficient braking system.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OE-quality brake components designed to meet or exceed original equipment specifications. The R-Line disc brake rotors are engineered for consistent performance and durability, making them suitable for drivers who require dependable braking solutions without extensive modifications. The 980747R rotor exemplifies the R-Line's commitment to precise fitment and functional design tailored to specific vehicle applications like the Suzuki Grand Vitara.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Restores braking efficiency lost due to rotor thickness below discard limits
• Addresses noise and vibration issues from uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during heavy use
• Compatible upgrade for maintaining parking brake functionality with drum-in-hat design

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below 0.551 inches
• Ensure mounting surfaces and hub are clean and free of debris
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads for wear and replace if necessary during rotor installation
• Check compatibility with Suzuki Grand Vitara model year and trim for proper fitment

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 980747R may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. It is recommended to consult product documentation or authorized sources for exact warranty terms related to this disc brake rotor.
