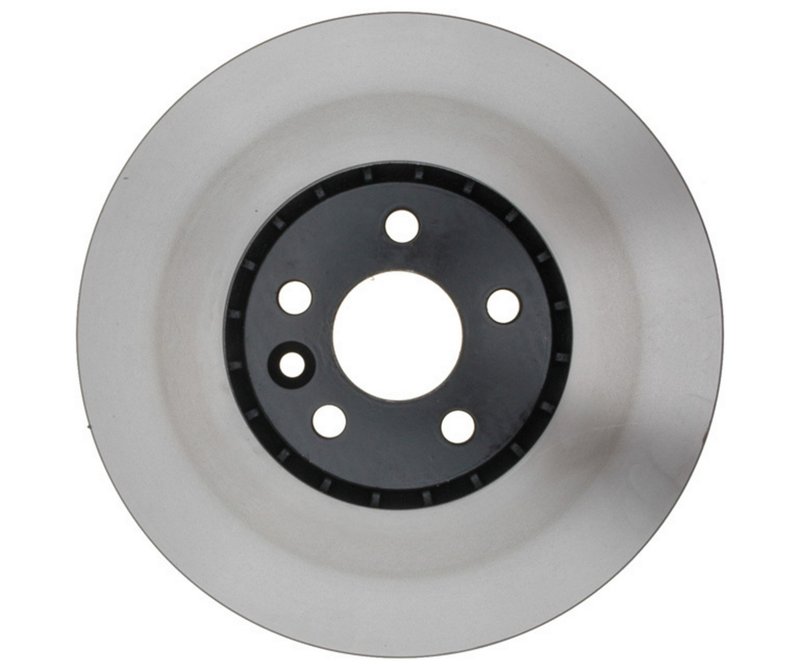

Raybestos 980779 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Specialty - Street Performance

Raybestos 980779 Disc Brake Rotor - Front

Brand Raybestos 980779
Position Front
Discard Thickness 1.102
Discard Thickness 28.000
Nominal Thickness 1.182
Nominal Thickness 30.000
Inside Diameter 177.550
Inside Diameter 6.991
Overall Height 2.049
Overall Height 52.050
Outside Diameter 12.910
Outside Diameter 327.900
Mounting Bolt Hole Quantity 5
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.504
Center Hole Diameter 63.600
Mounting Bolt Hole Circle Diameter 108.000
Mounting Bolt Hole Circle Diameter 4.252
Mounting Bolt Hole Diameter 0.618
Mounting Bolt Hole Diameter 15.700
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Specialty - Street Performance
Fits Volvo · 7 vehicles

Vented rotor. Smooth surface helps promote consistent braking performance.

Conventional design. A straightforward disc brake rotor for dependable replacement.

Street performance line. Raybestos Specialty is tuned for spirited driving.

Cross-references Bosch 52011385, Brembo 09.B025.11 and Centric Parts 121.39046 for the same application. See all 38.

$112.70Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $112.70
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos 980779 Front Brake Rotor for Volvo XC60

Raybestos 980779 is a front disc brake rotor for select Volvo XC60 applications, including 2010-2015 Volvo XC60 front and 2017 Volvo XC60 front with 328 mm rotor diameter. This Raybestos Specialty - Street Performance rotor is built for drivers who want a smooth-surface, vented rotor with the dimensions needed for a direct-fit brake service on the Volvo XC60.

Key Features

  • Part number 980779 from Raybestos Specialty - Street Performance
  • Front disc brake rotor for Volvo XC60 applications
  • Vented, conventional rotor design
  • Smooth surface type for consistent pad contact
  • Outside diameter: 12.910 in. / 327.900 mm
  • Nominal thickness: 1.182 in. / 30.000 mm
  • Discard thickness: 1.102 in. / 28.000 mm
  • 5-bolt mounting pattern with 108.000 mm bolt circle diameter
  • Center hole diameter: 2.504 in. / 63.600 mm
  • Overall height: 2.049 in. / 52.050 mm

Detailed Description

Raybestos 980779 is a vented, conventional front brake rotor engineered around the fitment and dimensions required for select Volvo XC60 models. The rotor’s 327.900 mm outside diameter, 30.000 mm nominal thickness, and 28.000 mm discard thickness align with the service specifications needed for front brake replacement on the listed XC60 applications. Its smooth surface and 5-lug configuration support a straightforward brake service on the Volvo XC60 platform.

The Raybestos Specialty - Street Performance line focuses on street-oriented braking components for drivers who want a rotor matched to performance-minded daily use. This rotor cross-references Bosch 52011385 and Brembo 09.B025.11 for the same application. Raybestos 980779 is also referenced by Raybestos Brakes 980779.

What This Rotor Helps Address

  • Front brake rotor wear on a Volvo XC60
  • Brake pulsation caused by rotor thickness variation
  • Reduced braking consistency from a worn or scored rotor surface
  • Service replacement for a vented front rotor with the correct diameter and bolt pattern
  • Brake maintenance on 2010-2015 Volvo XC60 front and 2017 Volvo XC60 front applications

Installation Notes and Tips

Verify rotor diameter, center hole diameter, bolt circle diameter, and thickness against the vehicle before installation. For best results, inspect pads, caliper hardware, and hub condition during service, and clean the hub mounting surface so the rotor seats evenly. This part fits 2010-2015 Volvo XC60, front, and fits 2017 Volvo XC60, front, with rotor diameter 328 mm noted for the 2017 application.

Quality Assurance

Raybestos is a recognized brake brand with a Specialty - Street Performance product line, and this rotor is built to the listed dimensional specifications for the confirmed Volvo XC60 applications.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2017VolvoXC60FrontRotor Diameter 328 MM; Specialty - Street Performance
2015VolvoXC60FrontSpecialty - Street Performance
2014VolvoXC60FrontSpecialty - Street Performance
2013VolvoXC60FrontSpecialty - Street Performance
2012VolvoXC60FrontSpecialty - Street Performance
2011VolvoXC60FrontSpecialty - Street Performance
2010VolvoXC60FrontSpecialty - Street Performance
Directly replaces or cross-references 38 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 52011385Brembo — 09.B025.11Centric Parts — 121.39046Centric Parts — 125.39046Centric Parts — 320.39046HDuraGo — BR900992Genu — 31277342PowerStop — EBR1283EVCPromax — 14-34422Raybestos Brakes — 980779StopTech — 126.39046SRStopTech — 128.39046LStopTech — 128.39046R120.39046125.39046CRY126.39046CSL126.39046CSR126.39046SL127.39046L127.39046R128.39046CL128.39046CR344227990379903DG290595980779RGS662108731471034312773420314710340AX900992BD180478EBR34422R39046YH290595YH290595CYH290595P
