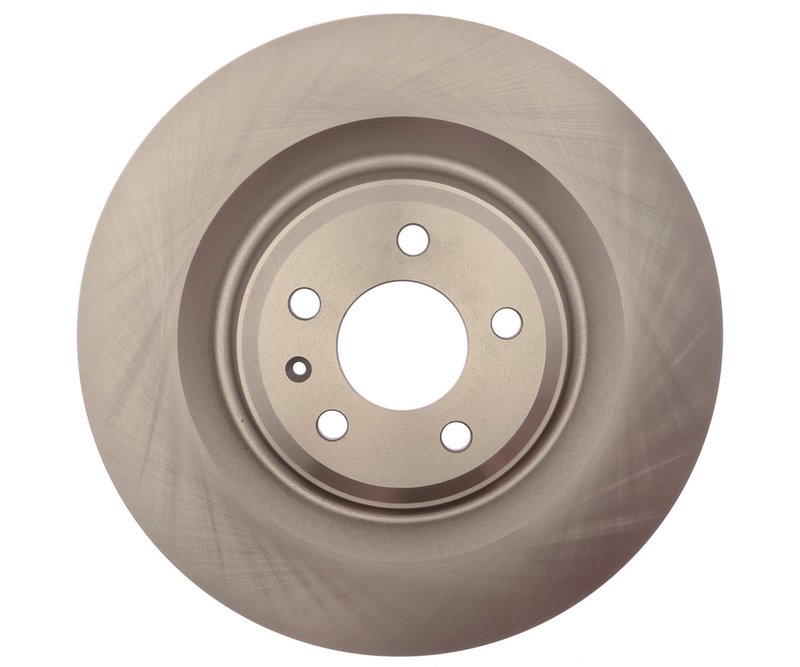

Raybestos 980878R Disc Brake Rotor - Rear

OE Quality 60-Day Returns

Raybestos R-Line

Raybestos 980878R Disc Brake Rotor - Rear

Brand	Raybestos 980878R
Position	Rear
Discard Thickness	0.787
Discard Thickness	20.000
Nominal Thickness	0.862
Nominal Thickness	21.900
Inside Diameter	243.600
Inside Diameter	9.591
Overall Height	1.421
Overall Height	36.100
Outside Diameter	14.004
Outside Diameter	355.700
Mounting Bolt Hole Quantity	5
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Center Hole Diameter	2.677
Center Hole Diameter	68.000
Mounting Bolt Hole Circle Diameter	112.000
Mounting Bolt Hole Circle Diameter	4.409
Mounting Bolt Hole Diameter	0.595
Mounting Bolt Hole Diameter	15.100
Stud/Lug Hole Quantity	5
Conventional Or Drum-In-Hat Type Rotor	Conventional
Product line	Raybestos R-Line
Fits	Audi · 47 vehicles

Vented design. Helps promote airflow for more consistent braking performance.

Smooth surface. Provides a clean contact area for dependable pad engagement.

Conventional rotor. A straightforward disc brake rotor for standard replacement needs.

Cross-references Bosch 14011495, Centric Parts 121.33133 and Centric Parts 125.33133 for the same application. See all 11.

$64.02Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Disc Brake Rotors are typically replaced in pairs, axle by axle.

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Disc Brake Rotor options

Rear Disc Brake Rotor for Audi Performance Applications

Raybestos R-Line 980878R is a rear vented disc brake rotor built for select Audi applications that use a 356 mm rear rotor. It is sized for precise OE-style replacement on vehicles such as the Audi A8 Quattro, S6, S7, S8, S4, and A7 Sportback.

The Raybestos R-Line focuses on direct-fit brake service parts for everyday repair work. Part number 980878R follows the original rotor dimensions and mounting pattern needed for rear brake service on the listed Audi models.

Key Features

Rear vented disc brake rotor with a smooth surface type
Outside diameter: 355.700 mm (14.004 in)
Nominal thickness: 21.900 mm (0.862 in)
Discard thickness: 20.000 mm (0.787 in)
Center hole diameter: 68.000 mm (2.677 in)
5-lug mounting pattern with 112.000 mm bolt circle diameter
Mounting bolt hole diameter: 15.100 mm (0.595 in)
Overall height: 36.100 mm (1.421 in)
Conventional rotor design for rear brake service

Detailed Description

Raybestos 980878R is a rear brake rotor engineered around the dimensions commonly used on larger Audi braking systems. With a 355.700 mm outside diameter, 21.900 mm nominal thickness, and vented construction, it matches the size requirements for rear brake replacement on Audi A8 Quattro, S6, S7, S8, S4, and A7 Sportback applications listed below. The smooth rotor surface supports standard brake pad contact during service and replacement.

This part cross-references Bosch 14011495 and Centric Parts 121.33133 for the same application. It also cross-references Raybestos Brakes 980878 and StopTech 126.33133SL / 126.33133SR.

Vehicle Fitment

Fits 2022-2023 Audi A7 Sportback, rear
Fits 2020-2021 Audi A7 Sportback, rear, 356mm rotor diameter; Raybestos R-Line
Fits 2018-2023 Audi S4, rear, 356mm disc rotor; Raybestos R-Line
Fits 2015-2016 Audi S4, rear, 356mm disc rotor; Raybestos R-Line
Fits 2018 Audi A7 Quattro, rear, 356mm iron rear disc; Raybestos R-Line
Fits 2016-2017 Audi A7, rear, 356mm rear disc; Raybestos R-Line
Fits 2016-2017 Audi A7 Quattro, rear, 356mm rear disc; Raybestos R-Line
Fits 2015-2018 Audi A8 Quattro, rear, R-Line
Fits 2014 Audi A8 Quattro, rear, to 09/02/2013; R-Line
Fits 2014 Audi A8 Quattro, rear, from 09/02/2013; R-Line
Fits 2011-2013 Audi A8 Quattro, rear, with 356mm diameter rotor; R-Line
Fits 2013-2018 Audi S6, rear, R-Line
Fits 2013-2018 Audi S7, rear, R-Line
Fits 2013-2018 Audi S8, rear, R-Line

Installation Notes and Tips

Verify rotor diameter, thickness, center bore, and 5-lug bolt pattern before installation. This rotor is for rear axle service only and should be matched to the vehicle’s brake system specification, especially on Audi models with 356 mm rear discs. Inspect pads, caliper condition, and hub mounting surfaces during brake service to help ensure proper rotor seating.

Quality Assurance

Raybestos R-Line is positioned as a direct replacement brake parts line for routine repair and maintenance. Part number 980878R is built to match the listed dimensional requirements for the specified Audi rear brake applications.

This part fits 47 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Liters	Cylinders	Position	Notes
2023	Audi	A7 Sportback	—	—	—	Rear	Raybestos R-Line
2023	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2022	Audi	A7 Sportback	—	—	—	Rear	Raybestos R-Line
2022	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2021	Audi	A7 Sportback	—	—	—	Rear	356mm Rotor Diameter; Raybestos R-Line
2021	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2020	Audi	A7 Sportback	—	—	—	Rear	356mm Rotor Diameter; Raybestos R-Line
2020	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2019	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2018	Audi	A7 Quattro	—	—	—	Rear	356mm Iron Rear Disc; Raybestos R-Line
2018	Audi	A8 Quattro	—	—	—	Rear	R-Line
2018	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2018	Audi	S6	—	—	—	Rear	R-Line
2018	Audi	S7	—	—	—	Rear	R-Line
2018	Audi	S8	—	—	—	Rear	R-Line
2017	Audi	A7	—	—	—	Rear	356mm Rear Disc; Raybestos R-Line
2017	Audi	A7 Quattro	—	—	—	Rear	356mm Rear Disc; Raybestos R-Line
2017	Audi	A8 Quattro	—	—	—	Rear	R-Line
2017	Audi	S6	—	—	—	Rear	R-Line
2017	Audi	S7	—	—	—	Rear	R-Line
2017	Audi	S8	—	—	—	Rear	R-Line
2016	Audi	A7	—	—	—	Rear	356mm Rear Disc; Raybestos R-Line
2016	Audi	A7 Quattro	—	—	—	Rear	356mm Rear Disc; Raybestos R-Line
2016	Audi	A8 Quattro	—	—	—	Rear	R-Line
2016	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2016	Audi	S6	—	—	—	Rear	R-Line
2016	Audi	S7	—	—	—	Rear	R-Line
2016	Audi	S8	—	—	—	Rear	R-Line
2015	Audi	A8 Quattro	—	—	—	Rear	R-Line
2015	Audi	S4	—	—	—	Rear	356mm Disc Rotor; Raybestos R-Line
2015	Audi	S6	—	—	—	Rear	R-Line
2015	Audi	S7	—	—	—	Rear	R-Line
2015	Audi	S8	—	—	—	Rear	R-Line
2014	Audi	A8 Quattro	—	6.3L	W12	Rear	To 09/02/2013; R-Line
2014	Audi	A8 Quattro	—	4.0L	V8	Rear	To 09/02/2013; R-Line
2014	Audi	A8 Quattro	Base	—	—	Rear	From 09/02/2013; R-Line
2014	Audi	A8 Quattro	L	—	—	Rear	From 09/02/2013; R-Line
2014	Audi	A8 Quattro	L W12	—	—	Rear	From 09/02/2013; R-Line
2014	Audi	S6	—	—	—	Rear	R-Line
2014	Audi	S7	—	—	—	Rear	R-Line
2014	Audi	S8	—	—	—	Rear	R-Line
2013	Audi	A8 Quattro	—	—	—	Rear	with 356mm Diameter Rotor; R-Line
2013	Audi	S6	—	—	—	Rear	R-Line
2013	Audi	S7	—	—	—	Rear	R-Line
2013	Audi	S8	—	—	—	Rear	R-Line
2012	Audi	A8 Quattro	—	—	—	Rear	with 356mm Diameter Rotor; R-Line
2011	Audi	A8 Quattro	—	—	—	Rear	with 356mm Diameter Rotor; R-Line
No rows match your filter.

Directly replaces or cross-references 11 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Bosch — 14011495Centric Parts — 121.33133Centric Parts — 125.33133Raybestos Brakes — 980878StopTech — 126.33133SLStopTech — 126.33133SR4H0615601F4H0615601L980878RGSBR34472N1000407720ZIC
