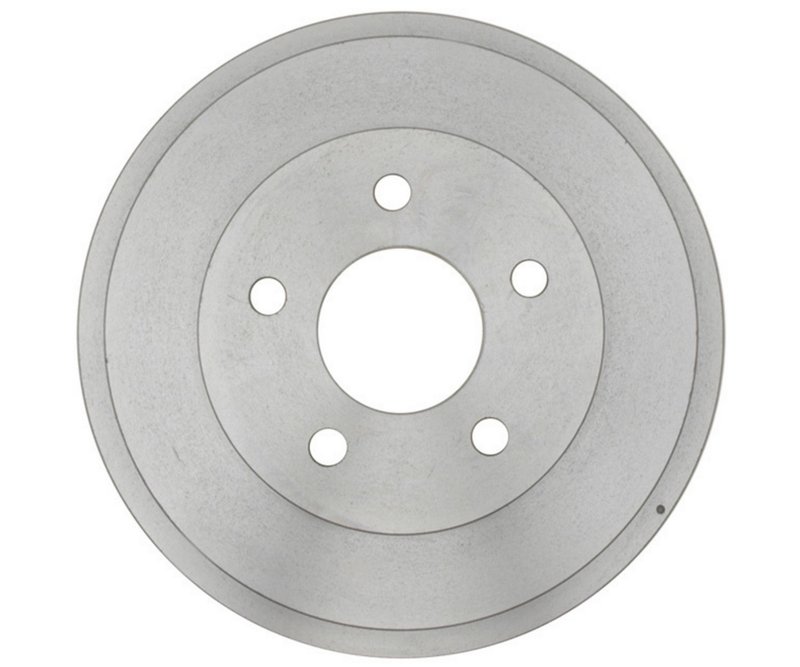

Raybestos 9808R Brake Drum - Rear
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 9808R Brake Drum - Rear

Brand Raybestos 9808R
Position Rear
Depth 1.874
Depth 47.600
Inside Diameter 8.996
Inside Diameter 228.500
Outer Cooling Fins No
Outside Diameter 0.425
Outside Diameter 10.800
Stud/Lug Hole Diameter 0.546
Stud/Lug Hole Diameter 13.850
Stud/Lug Hole Quantity 5
Product line R-Line
Fits Chevrolet and Pontiac · 16 vehicles

Brake drum. Precision-machined for consistent braking performance.

R-Line. Raybestos replacement line for dependable service.

Cross-references Centric Parts 122.62039, Centric Parts 123.62039 and Dayco 72003 for the same application. See all 12.

$57.07Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $57.07
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

Rear Brake Drum for Select Chevrolet and Pontiac Models

Raybestos R-Line brake drum 9808R is a rear drum brake replacement for select 2009-2011 Chevrolet HHR, 2009-2010 Chevrolet Cobalt, and 2009-2010 Pontiac G5 applications. It is built to match the listed dimensions for a direct-fit rear brake service on 5-lug vehicles where specified.

Key Features

  • Inside diameter: 8.996 in. (228.500 mm)
  • Outside diameter: 10.800 in. (274.320 mm)
  • Depth: 1.874 in. (47.600 mm)
  • 5 stud/lug holes with 0.546 in. (13.850 mm) hole diameter
  • No outer cooling fins
  • Rear brake drum application

R-Line Product Line Details

Raybestos R-Line covers everyday brake service parts for common repair needs. In this application, the R-Line brake drum 9808R provides the listed OE-style dimensions and fitment coverage for rear brake maintenance on the Chevrolet HHR, Chevrolet Cobalt, and Pontiac G5.

Detailed Description

Use Raybestos 9808R when replacing a worn or out-of-spec rear brake drum on the rear axle. The drum’s 8.996-inch inside diameter, 10.800-inch outside diameter, and 1.874-inch depth are the key measurements that help ensure proper brake shoe contact and drum fitment. This part cross-references DuraGo BD920142 and Remy 21108 for the same application. Compatible With 2009-2011 Chevrolet HHR, rear; 2009-2010 Chevrolet Cobalt, rear with 5-lug wheels; and 2009-2010 Pontiac G5, rear with 5-lug wheels.

Common Reasons to Replace

  • Rear brake pulsation or uneven braking feel
  • Drum scoring, grooves, or heat-related wear
  • Out-of-spec inside diameter from repeated service
  • Brake shoe contact issues during rear brake repair
  • Noise from worn rear drum brake components

Installation Notes and Tips

Verify rear drum dimensions, lug count, and vehicle fitment before installation. Inspect brake shoes, wheel cylinders, and related rear brake hardware for wear while the drum is removed. Clean the braking surface and confirm the drum seats correctly on the hub before road testing. Fits 2009-2011 Chevrolet HHR, rear; 2009-2010 Chevrolet Cobalt, rear; and 2009-2010 Pontiac G5, rear.

Quality Assurance

Raybestos is a recognized brake parts brand, and the R-Line line is positioned for routine replacement service with application-specific fitment and dimensional accuracy. Part number 9808R is listed with direct interchange references for the same rear brake drum application.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2011ChevroletHHR—RearR-Line
2010ChevroletCobalt—RearFits vehicles with 5-lug wheels.; R-Line
2010ChevroletHHRLSRearR-Line
2010ChevroletHHRLTRearR-Line
2010ChevroletHHRSSRearR-Line
2010ChevroletHHRLT PanelRearR-Line
2010ChevroletHHRLS PanelRearR-Line
2010PontiacG5—RearFits vehicles with 5-lug wheels.; R-Line
2009ChevroletCobalt—RearFits vehicles with 5-lug wheels.; R-Line
2009ChevroletHHRLSRearR-Line
2009ChevroletHHRLTRearR-Line
2009ChevroletHHRSSRearR-Line
2009ChevroletHHRLT PanelRearR-Line
2009ChevroletHHRLS PanelRearR-Line
2009ChevroletHHRSS PanelRearR-Line
2009PontiacG5—RearFits vehicles with 5-lug wheels.; R-Line
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 122.62039Centric Parts — 123.62039Dayco — 72003DuraGo — BD920142Gates — 22116Raybestos Brakes — 9808RRemy — 211089808DGS25806004BD180302BD180302ED62039
