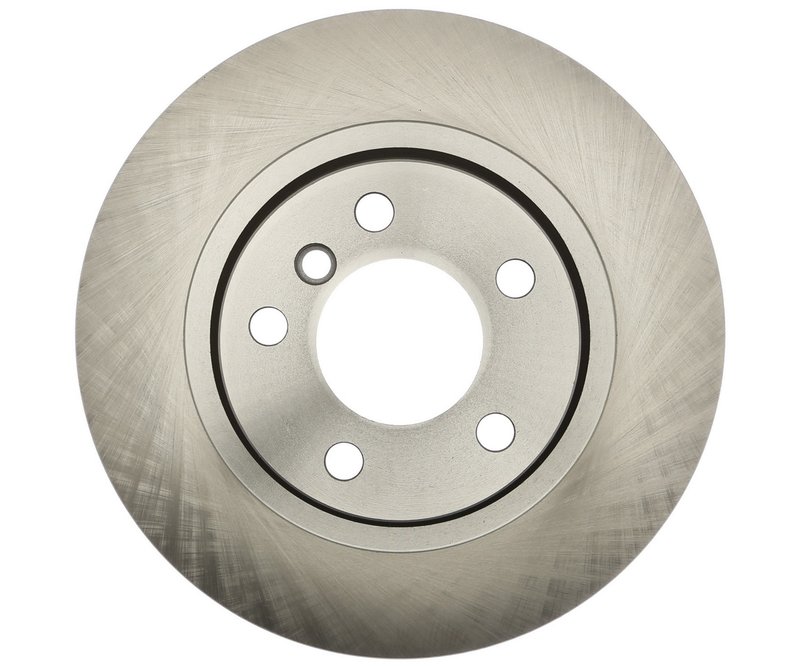

Raybestos 980924R Disc Brake Rotor - Rear
OE Quality 60-Day Returns
Raybestos
R-Line

Raybestos 980924R Disc Brake Rotor - Rear

Brand Raybestos 980924R
Position Rear
Center Hole Diameter 2.953
Center Hole Diameter 75.000
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.724
Discard Thickness 18.400
Inside Diameter 8.528
Inside Diameter 216.600
Mounting Bolt Hole Circle Diameter 4.724
Mounting Bolt Hole Circle Diameter 120.000
Mounting Bolt Hole Diameter 0.645
Mounting Bolt Hole Diameter 16.400
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.787
Nominal Thickness 20.000
Outside Diameter 12.992
Outside Diameter 330.000
Overall Height 2.799
Overall Height 71.100
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Surface Type Smooth
Product line R-Line
Fits BMW · 14 vehicles

Vented rotor. Helps move air through the disc for more consistent braking performance.

Smooth surface. Provides a clean contact area for dependable pad engagement.

Conventional design. A straightforward disc brake rotor for standard replacement needs.

Cross-references Bosch 15011498, Centric Parts 121.34139 and Centric Parts 125.34139 for the same application. See all 41.

$55.80Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $55.80
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Rear Brake Rotor for BMW X3/X4

The Raybestos R-Line 980924R is a rear disc brake rotor built for BMW X3 and BMW X4 applications that call for a vented, conventional rotor design. With a smooth surface and OE-style dimensions, it supports consistent brake contact and straightforward replacement service.

Key Features

  • Part number 980924R from Raybestos R-Line
  • Rear disc brake rotor for BMW X3 and BMW X4 fitments
  • Vented, conventional rotor construction
  • Smooth surface type for even pad contact
  • Outside diameter: 12.992 in. / 330.000 mm
  • Nominal thickness: 0.787 in. / 20.000 mm
  • Discard thickness: 0.724 in. / 18.400 mm
  • 5-lug mounting pattern with 120.000 mm bolt circle diameter
  • Center hole diameter: 2.953 in. / 75.000 mm

Detailed Description

Raybestos R-Line 980924R is a rear brake rotor engineered to match the dimensional requirements listed for 2011-2017 BMW X3 rear and 2015-2018 BMW X4 rear applications. The vented rotor design helps manage heat during repeated braking, while the smooth friction surface supports stable pad engagement. Key measurements include a 330.000 mm outside diameter, 20.000 mm nominal thickness, 71.100 mm overall height, and a 75.000 mm center hole diameter. This part cross-references Bosch 15011498 and DuraGo BR901052 for the same application.

The Raybestos R-Line focuses on direct-fit replacement coverage for common service jobs on BMW X3 and BMW X4 rear brake systems. If you are replacing a worn rear rotor on a 2011-2017 BMW X3 or a 2015-2018 BMW X4, 980924R provides the fitment and dimensions needed for a conventional rear rotor service.

What This Rotor Helps Address

  • Brake pulsation caused by rotor wear or thickness variation
  • Reduced braking consistency from a worn rear rotor surface
  • Noise related to uneven rotor contact
  • Heat buildup during repeated stop-and-go braking
  • Service replacement for BMW X3 and BMW X4 rear brake maintenance

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and hub fitment before installation. Clean the hub mounting surface thoroughly to help the rotor seat evenly, and inspect brake pads and caliper components for wear before completing the repair. After installation, follow the vehicle manufacturer’s brake bedding procedure for proper pad-to-rotor transfer.

Quality Assurance

Raybestos R-Line brake components are built for direct replacement service and dimensional consistency. This rotor is listed with OE-style fitment for rear BMW X3 and BMW X4 applications, including 2011-2017 BMW X3 rear and 2015-2018 BMW X4 rear coverage.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2018BMWX4—RearR-Line
2017BMWX3—RearR-Line
2017BMWX4—RearR-Line
2016BMWX3—RearR-Line
2016BMWX4xDrive35iRearR-Line
2016BMWX4xDrive28iRearR-Line
2016BMWX4M40iRearR-Line
2015BMWX3—RearR-Line
2015BMWX4xDrive35iRearR-Line
2015BMWX4xDrive28iRearR-Line
2014BMWX3—RearR-Line
2013BMWX3—RearR-Line
2012BMWX3—RearR-Line
2011BMWX3—RearR-Line
Directly replaces or cross-references 41 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 15011498Centric Parts — 121.34139Centric Parts — 125.34139Centric Parts — 320.34139HDuraGo — BR901052Dynamic Friction Company — 604-31152Hella Pagid — 355119542Parts Authority — PRT6167PowerStop — EBR1240EVCPromax — 14-34487Raybestos Brakes — 980924Raybestos Brakes — 980924FZNRaybestos Brakes — 980924RStopTech — 127.34139LStopTech — 127.34139RStopTech — 128.34139CR125.34139CRY126.34139CSL126.34139CSR126.34139SL126.34139SR128.34139CL128.34139L128.34139R4453844538DG980924RGS6621371355119541342067903623420686893634206886482AX901052BD180508BR34487R1052R34139SDK6731YH329884YH329884CYH329884P
