OE Quality
60-Day Returns
Raybestos

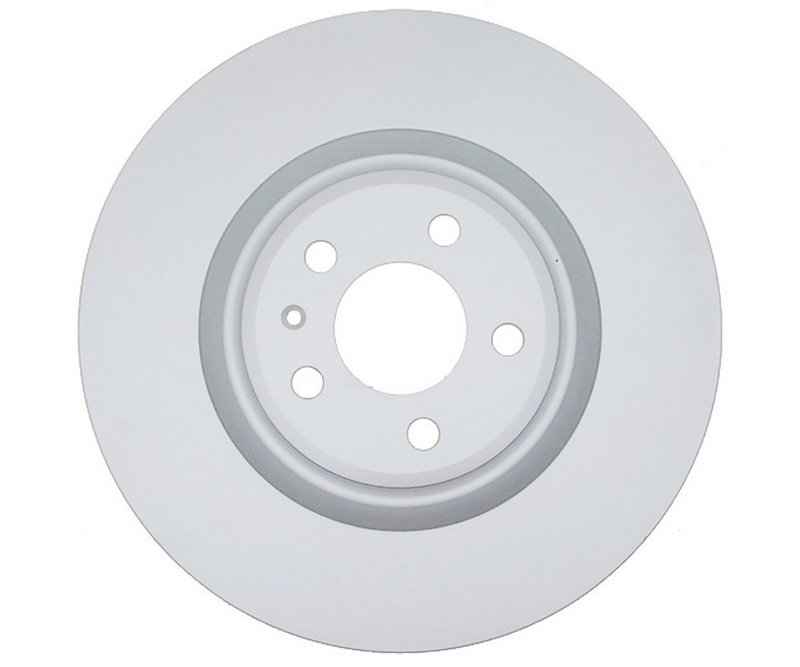

Raybestos Element 3Raybestos 980940FZN Disc Brake Rotor - Front
| Brand | Raybestos 980940FZN |
|---|---|
| Position | Front |
| Discard Thickness | 1.102 |
| Discard Thickness | 28.000 |
| Nominal Thickness | 1.177 |
| Nominal Thickness | 29.900 |
| Inside Diameter | 210.000 |
| Inside Diameter | 8.268 |
| Overall Height | 2.055 |
| Overall Height | 52.200 |
| Outside Diameter | 13.575 |
| Outside Diameter | 344.800 |
| Mounting Bolt Hole Quantity | 5 |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.677 |
| Center Hole Diameter | 68.000 |
| Mounting Bolt Hole Circle Diameter | 112.000 |
| Mounting Bolt Hole Circle Diameter | 4.409 |
| Mounting Bolt Hole Diameter | 0.595 |
| Mounting Bolt Hole Diameter | 15.100 |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Product line | Raybestos Element 3 |
| Fits | Audi and Porsche · 68 vehicles |
Coated rotor. Element3 finish helps resist corrosion for a cleaner look and longer service life.
Vented design. Promotes airflow through the rotor for more consistent braking performance.
Smooth surface. Provides even pad contact for quiet, predictable braking.
Cross-references Bosch 14011526, Centric Parts 121.33138 and Centric Parts 125.33138 for the same application. See all 43.
$94.22Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options
Raybestos Element3 Front Brake Rotor
The Raybestos Element3 Coated Rotor 980940FZN is a front disc brake rotor built for select Audi and Porsche applications that use a 345 mm front brake setup. With a vented, smooth-surface design and corrosion-resistant coating, it supports consistent braking performance while helping maintain a cleaner rotor surface in everyday driving.
Raybestos Element3 coated rotors are positioned for drivers who want OE-style fitment with added protection against rust on exposed surfaces. This rotor is engineered for front axle use on vehicles such as the Audi A6, A6 Quattro, A7 Quattro, Q5, S4, S5, A4 Quattro, A5, A5 Quattro, and Porsche Macan.
- Part number: 980940FZN
- Brand line: Raybestos Element3 coated rotor
- Front disc brake rotor for select Audi and Porsche models
- Vented rotor construction for front brake applications
- Smooth surface type
- Outside diameter: 13.575 in. / 344.800 mm
- Nominal thickness: 1.177 in. / 29.900 mm
- Discard thickness: 1.102 in. / 28.000 mm
- Overall height: 2.055 in. / 52.200 mm
- Center hole diameter: 2.677 in. / 68.000 mm
- 5-lug mounting pattern with 112 mm bolt circle diameter
Fitment Details
Compatible with front brake applications on select vehicles, including Fits 2025 Porsche Macan, front; Fits 2021-2024 Porsche Macan, front; Fits 2020 Porsche Macan, front; Fits 2017-2019 Porsche Macan, front; Fits 2016 Porsche Macan, front; Fits 2015 Porsche Macan, front.
- Fits 2016-2019 Audi A6 Quattro, front
- Fits 2017-2018 Audi A6, front
- Fits 2018 Audi A7 Quattro, front
- Fits 2016-2017 Audi A7 Quattro, front
- Fits 2013-2017 Audi Q5, front
- Fits 2015-2017 Audi S5, front
- Fits 2016 Audi A5, front
- Fits 2014-2016 Audi S4, front
- Fits 2012-2015 Audi A6, front
- Fits 2015 Audi A6 Quattro, front
- Fits 2012-2013 Audi A6 Quattro, front
- Fits 2015 Audi A7 Quattro, front
- Fits 2012-2013 Audi A7 Quattro, front
- Fits 2014 Audi A6 Quattro, front
- Fits 2014 Audi A7 Quattro, front
- Fits 2012-2014 Audi S5, front
- Fits 2013 Audi A4 Quattro, front
- Fits 2012-2013 Audi A5, front
- Fits 2012-2013 Audi A5 Quattro, front
- Fits 2012-2013 Audi S4, front
- Fits 2011 Audi S4, front
What This Rotor Helps Address
- Front brake pulsation caused by worn or out-of-spec rotors
- Reduced braking consistency from rotor wear beyond discard thickness
- Surface rust on exposed rotor areas
- Noise or vibration related to uneven rotor condition
- Brake service needs on 345 mm front disc brake systems
Installation Notes
Verify rotor diameter, thickness, center hole diameter, and bolt pattern before installation. This rotor is a conventional vented front rotor with a 5-lug, 112 mm bolt circle and is intended for vehicles listed with 345 mm front disc brake applications. For best results, inspect pads, calipers, and hub surfaces during brake service and confirm the vehicle-specific notes for black caliper, TRW front calipers, or 345 mm disc brake requirements where listed.
This part cross-references Raybestos Brakes 980940 and Bosch 14011526 for the same application.
Quality Assurance
Raybestos Element3 coated rotors are built to match the dimensional requirements of the listed Audi and Porsche front brake applications while adding a coated finish for improved corrosion resistance on non-friction surfaces. Part number 980940FZN is engineered as a direct-fit replacement for the specified vehicles and brake configurations.
This part fits 68 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2025 | Porsche | Macan | — | — | 2.9L | V6 | — | Front | Raybestos Element 3 |
| 2024 | Porsche | Macan | Base | AWD | 2.0L | L4 | — | Front | Disc brakes in front [1LA]; Disc brakes in front [1LE]; Raybestos Element 3 |
| 2023 | Porsche | Macan | Base | AWD | 2.0L | L4 | — | Front | Disc brakes in front [1LA]; Disc brakes in front [1LE]; Raybestos Element 3 |
| 2022 | Porsche | Macan | Base | AWD | 2.0L | L4 | — | Front | Disc brakes in front [1LA]; Disc brakes in front [1LE]; Raybestos Element 3 |
| 2021 | Porsche | Macan | Base | AWD | 2.0L | L4 | — | Front | Disc brakes in front [1LA]; Disc brakes in front [1LE]; Raybestos Element 3 |
| 2020 | Porsche | Macan | Base | — | — | — | — | Front | w/ Black Caliper; Element3; Coated Rotor |
| 2019 | Audi | A6 Quattro | — | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2019 | Porsche | Macan | Base | — | — | — | — | Front | Element3; Coated Rotor |
| 2018 | Audi | A6 | — | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2018 | Audi | A6 Quattro | — | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2018 | Audi | A7 Quattro | — | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2018 | Porsche | Macan | Base | — | — | — | — | Front | Element3; Coated Rotor |
| 2017 | Audi | A6 | — | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2017 | Audi | A6 Quattro | — | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2017 | Audi | A7 Quattro | — | — | — | — | — | Front | Raybestos Element 3 |
| 2017 | Audi | Q5 | — | — | 3.0L | V6 | — | Front | Element3; Coated Rotor |
| 2017 | Audi | S5 | — | — | — | — | — | Front | Element3; Coated Rotor |
| 2017 | Porsche | Macan | Base | — | — | — | — | Front | Element3; Coated Rotor |
| 2016 | Audi | A5 | — | — | — | — | — | Front | TRW Front Calipers; Raybestos Element 3 |
| 2016 | Audi | A6 | — | — | — | — | — | Front | Raybestos Element 3 |
| 2016 | Audi | A6 Quattro | — | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2016 | Audi | A7 Quattro | — | — | — | — | — | Front | Raybestos Element 3 |
| 2016 | Audi | Q5 | — | — | — | — | GAS | Front | Element3; Coated Rotor |
| 2016 | Audi | Q5 | — | — | — | — | DIESEL | Front | Element3; Coated Rotor |
| 2016 | Audi | Q5 | — | — | — | — | ELECTRIC/GAS | Front | Element3; Coated Rotor |
| 2016 | Audi | S4 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2016 | Audi | S5 | — | — | — | — | — | Front | Element3; Coated Rotor |
| 2016 | Porsche | Macan | S | AWD | 3.0L | V6 | — | Front | Rotor Diameter 17in; Raybestos Element 3 |
| 2015 | Audi | A6 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2015 | Audi | A6 Quattro | — | — | 3.0L | V6 | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2015 | Audi | A7 Quattro | — | — | 3.0L | V6 | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2015 | Audi | Q5 | — | — | — | — | GAS | Front | Element3; Coated Rotor |
| 2015 | Audi | Q5 | — | — | — | — | DIESEL | Front | Element3; Coated Rotor |
| 2015 | Audi | Q5 | — | — | — | — | ELECTRIC/GAS | Front | Element3; Coated Rotor |
| 2015 | Audi | S4 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2015 | Audi | S5 | — | — | — | — | — | Front | Element3; Coated Rotor |
| 2015 | Porsche | Macan | Base | — | — | — | — | Front | 345mm Front Disc; Raybestos Element 3 |
| 2014 | Audi | A6 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2014 | Audi | A6 Quattro | Premium | — | — | — | — | Front | To 8/5/2013; Rotor Diameter 345 MM; Element3; Coated Rotor |
| 2014 | Audi | A6 Quattro | Premium Plus | — | — | — | — | Front | To 8/5/2013; Rotor Diameter 345 MM; Element3; Coated Rotor |
| 2014 | Audi | A6 Quattro | TDI Premium Plus | — | — | — | — | Front | To 8/5/2013; Rotor Diameter 345 MM; Element3; Coated Rotor |
| 2014 | Audi | A6 Quattro | TDI Prestige | — | — | — | — | Front | To 8/5/2013; Rotor Diameter 345 MM; Element3; Coated Rotor |
| 2014 | Audi | A7 Quattro | TDI Premium Plus | — | — | — | — | Front | Element3; Coated Rotor |
| 2014 | Audi | A7 Quattro | TDI Prestige | — | — | — | — | Front | Element3; Coated Rotor |
| 2014 | Audi | Q5 | — | — | — | — | GAS | Front | Element3; Coated Rotor |
| 2014 | Audi | Q5 | — | — | — | — | DIESEL | Front | Element3; Coated Rotor |
| 2014 | Audi | Q5 | — | — | — | — | ELECTRIC/GAS | Front | Element3; Coated Rotor |
| 2014 | Audi | S4 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2014 | Audi | S5 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2013 | Audi | A4 Quattro | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2013 | Audi | A5 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2013 | Audi | A5 Quattro | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2013 | Audi | A6 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2013 | Audi | A6 Quattro | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2013 | Audi | A7 Quattro | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2013 | Audi | Q5 | — | — | — | — | GAS | Front | Element3; Coated Rotor |
| 2013 | Audi | Q5 | — | — | — | — | DIESEL | Front | Element3; Coated Rotor |
| 2013 | Audi | Q5 | — | — | — | — | ELECTRIC/GAS | Front | Element3; Coated Rotor |
| 2013 | Audi | S4 | — | — | — | — | — | Front | Element3; Coated Rotor |
| 2013 | Audi | S5 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2012 | Audi | A5 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2012 | Audi | A5 Quattro | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2012 | Audi | A6 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2012 | Audi | A6 Quattro | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2012 | Audi | A7 Quattro | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2012 | Audi | S4 | — | — | — | — | — | Front | Element3; Coated Rotor |
| 2012 | Audi | S5 | — | — | — | — | — | Front | Fitment Note: For use with 345 MM disc brake rotors.; Element3; Coated Rotor |
| 2011 | Audi | S4 | — | — | — | — | — | Front | Rotor Diameter 345 MM; From 06/20/2011; Element3; Coated Rotor |
| No rows match your filter. | |||||||||
Directly replaces or cross-references 43 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 14011526Centric Parts — 121.33138Centric Parts — 125.33138Centric Parts — 320.33138CCentric Parts — 320.33138HHella Pagid — 355123112PowerStop — EBR1210EVCPromax — 14-34498Raybestos Brakes — 980940StopTech — 126.33138SLStopTech — 126.33138SRStopTech — 127.33138LStopTech — 127.33138RStopTech — 128.33138LStopTech — 128.33138RStopTech — 227.33138LStopTech — 227.33138RWagner Brake — BD180854E4G06153014G0615301AE4G0615301AF4G0615301G4G0615301M4G0615301Q95B615301B95B615301M120.33138125.33138CRY126.33138CSL126.33138CSR127.33138CL127.33138CR128.33138CL128.33138CR320.331387801878018DG980940RGSBR34498SDK6776YH335136YH335136CYH335136P
