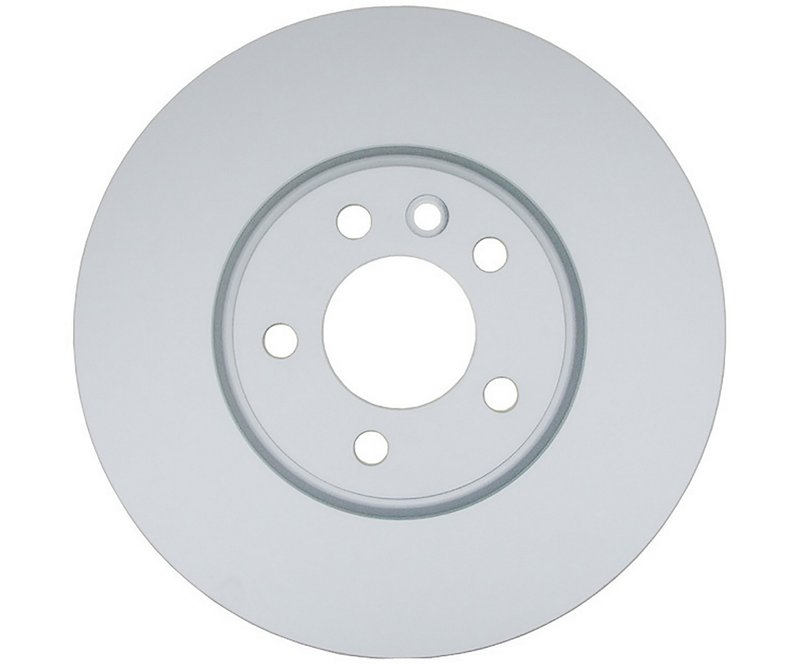

Raybestos 980953FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980953FZN is engineered for reliable braking performance on Volkswagen CC and Passat CC models. This vented disc brake rotor offers precise dimensions and a smooth surface to ensure consistent stopping power and durability.

• Compatible with Volkswagen CC and Passat CC
• Part number 980953FZN for exact fitment
• Vented rotor design for improved heat dissipation
• Coated surface to resist corrosion and extend rotor life
• 5 mounting bolt holes and 5 stud/lug holes for secure installation

Detailed Specifications and Features

This Raybestos disc brake rotor features a nominal thickness of 1.283 inches (32.600 mm) and a discard thickness of 1.122 inches (28.500 mm), ensuring it meets strict wear limits for safe operation. The rotor has an outside diameter of 13.378 inches (339.800 mm) and an inside diameter of 7.610 inches (193.300 mm), designed to fit precisely on the Volkswagen CC and Passat CC brake assemblies. The overall height measures 2.189 inches (55.600 mm), and the center hole diameter is 2.992 inches (76.000 mm). The rotor includes 5 mounting bolt holes with a bolt circle diameter of 4.724 inches (120.000 mm) and a mounting bolt hole diameter of 0.645 inches (16.400 mm). The smooth surface type and vented design help maintain consistent braking performance by reducing heat buildup during operation.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos is designed to provide enhanced corrosion resistance and long-lasting performance. The coating applied to the rotor surface helps protect against rust and environmental damage, which is especially beneficial for vehicles like the Volkswagen CC and Passat CC that may be exposed to varying weather conditions. This product line focuses on delivering reliable braking components that maintain their integrity over time without compromising fit or function.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volkswagen CC and Passat CC
• Addresses brake noise caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during extended use
• Prevents corrosion-related rotor damage for longer service life
• Restores proper rotor thickness to maintain braking efficiency

Installation Notes and Tips

• Verify rotor dimensions and part number 980953FZN before installation
• Ensure mounting surfaces are clean and free of debris for proper fit
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Check for proper rotor runout after installation to prevent vibration

Quality Assurance and Warranty

Raybestos disc brake rotors, including the Element3; Coated Rotor 980953FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The vented rotor design and corrosion-resistant coating contribute to consistent braking performance and durability. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
