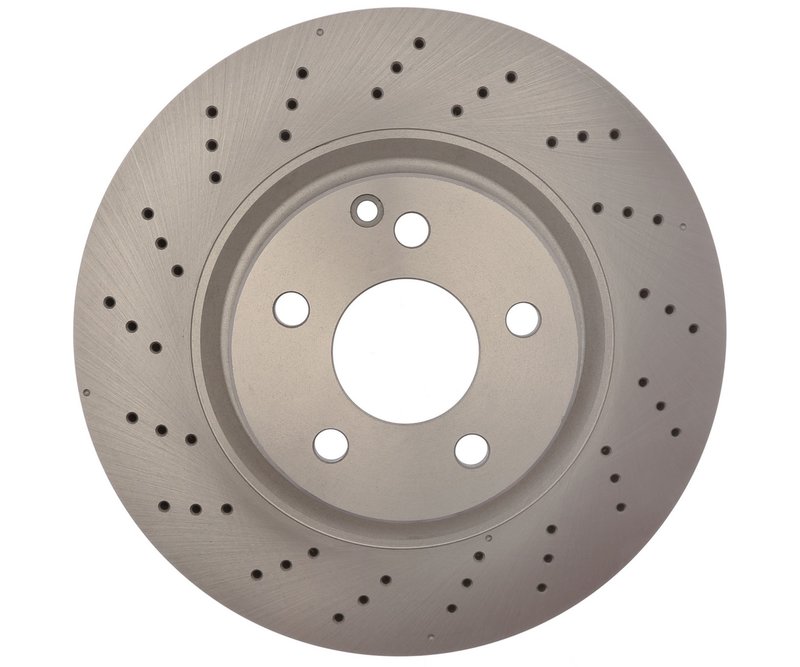

Raybestos 980963R Disc Brake Rotor - Front
| Brand | Raybestos 980963R |
|---|---|
| Position | Front |
| Discard Thickness | 1.181 |
| Discard Thickness | 30.000 |
| Nominal Thickness | 1.260 |
| Nominal Thickness | 32.000 |
| Inside Diameter | 212.100 |
| Inside Diameter | 8.350 |
| Overall Height | 2.540 |
| Overall Height | 64.500 |
| Outside Diameter | 12.990 |
| Outside Diameter | 329.950 |
| Mounting Bolt Hole Quantity | 5 |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 112.000 |
| Mounting Bolt Hole Circle Diameter | 4.409 |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Product line | R-Line |
| Fits | Mercedes-Benz · 17 vehicles |
Vented rotor. Helps dissipate heat for more consistent braking performance.
Smooth surface. Provides a clean contact area for dependable pad engagement.
Conventional design. A straightforward disc brake rotor for standard replacement needs.
Cross-references Centric Parts 121.35078, Centric Parts 128.35078 and Centric Parts 228.35078 for the same application. See all 22.
Raybestos R-Line Front Brake Rotor for Mercedes-Benz
The Raybestos R-Line 980963R is a front disc brake rotor built for select Mercedes-Benz E-Class and SL-Class applications. It features a vented, smooth-surface design with OE-style dimensions for direct replacement service on covered vehicles.
Key Features
- Part number: 980963R
- Raybestos R-Line brake rotor for front axle applications
- Vented rotor construction for heat management
- Smooth surface type
- Outside diameter: 12.990 in. / 329.950 mm
- Nominal thickness: 1.260 in. / 32.000 mm
- Discard thickness: 1.181 in. / 30.000 mm
- Inside diameter: 8.350 in. / 212.100 mm
- Overall height: 2.540 in. / 64.500 mm
- 5-bolt mounting pattern with 112.000 mm bolt circle diameter
- 5 stud/lug holes
- Conventional rotor design
Product Details
Raybestos R-Line focuses on OE-style replacement brake components for everyday repair work. This rotor follows the original fitment profile for Mercedes-Benz front brake service, including applications for the 2003-2012 Mercedes-Benz SL550, 2003-2005 Mercedes-Benz SL500, 2004-2005 Mercedes-Benz E500, 2006-2009 Mercedes-Benz E350, and 2007-2009 Mercedes-Benz E550. The 980963R is also cross-referenced with Monroe Shocks & Struts 172286 and 182286 for the same application.
For buyers searching for a Mercedes-Benz front brake rotor, Mercedes-Benz E350 front rotor, or Mercedes-Benz SL550 vented rotor, this part number provides the dimensional and fitment details needed for a direct replacement decision. The Raybestos 980963R is a conventional, vented rotor with a smooth friction surface and OE-matched mounting layout.
What This Rotor Helps Address
- Brake pulsation caused by rotor wear or thickness variation
- Scoring or uneven friction surface wear
- Reduced braking consistency from an out-of-spec front rotor
- Noise related to worn or damaged rotor surfaces
- Service replacement for front brake maintenance on covered Mercedes-Benz models
Installation Notes and Tips
Verify rotor diameter, thickness, and bolt pattern against the vehicle before installation. This front rotor is listed for 2003-2012 Mercedes-Benz SL550, 2003-2005 Mercedes-Benz SL500, 2004-2005 Mercedes-Benz E500, 2006-2009 Mercedes-Benz E350, and 2007-2009 Mercedes-Benz E550. Confirm the vehicle’s brake package and model year details, especially on SL500 and E-Class applications with package-specific notes.
Quality Assurance
Raybestos R-Line brake components are built to meet replacement-service requirements with application-specific dimensions and construction. The 980963R is specified as a vented, conventional front rotor with OE-style measurements for the listed Mercedes-Benz applications.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Mercedes-Benz | SL550 | — | — | Front | Compatible with vehicles equipped with or without Sport Package.; R-Line |
| 2011 | Mercedes-Benz | SL550 | — | — | Front | Compatible with vehicles equipped with or without Sport Package.; R-Line |
| 2010 | Mercedes-Benz | SL550 | — | — | Front | Compatible with vehicles equipped with or without Sport Package.; R-Line |
| 2009 | Mercedes-Benz | E350 | — | RWD | Front | Compatible with vehicles equipped with Sport Package.; R-Line |
| 2009 | Mercedes-Benz | E550 | Base | — | Front | Compatible with vehicles equipped with Sport Package.; R-Line |
| 2009 | Mercedes-Benz | SL550 | — | — | Front | Compatible with vehicles equipped with or without Sport Package.; R-Line |
| 2008 | Mercedes-Benz | E350 | — | RWD | Front | Compatible with vehicles equipped with Sport Package.; R-Line |
| 2008 | Mercedes-Benz | E550 | Base | — | Front | Compatible with vehicles equipped with Sport Package.; R-Line |
| 2008 | Mercedes-Benz | SL550 | — | — | Front | Compatible with vehicles equipped with or without Sport Package.; R-Line |
| 2007 | Mercedes-Benz | E350 | — | RWD | Front | Compatible with vehicles equipped with Sport Package.; R-Line |
| 2007 | Mercedes-Benz | E550 | Base | — | Front | Compatible with vehicles equipped with Sport Package.; R-Line |
| 2007 | Mercedes-Benz | SL550 | — | — | Front | Compatible with vehicles equipped with or without Sport Package.; R-Line |
| 2006 | Mercedes-Benz | E350 | — | RWD | Front | Compatible with vehicles equipped with Sport Package.; R-Line |
| 2005 | Mercedes-Benz | E500 | Base | — | Front | 330mm Front Disc; Raybestos R-Line |
| 2004 | Mercedes-Benz | E500 | Base | — | Front | 330mm Front Disc; Raybestos R-Line |
| 2004 | Mercedes-Benz | SL500 | — | — | Front | To Ch# F063164; Raybestos R-Line |
| 2003 | Mercedes-Benz | SL500 | — | — | Front | Compatible with vehicles equipped with or without Sport Package.; R-Line |
