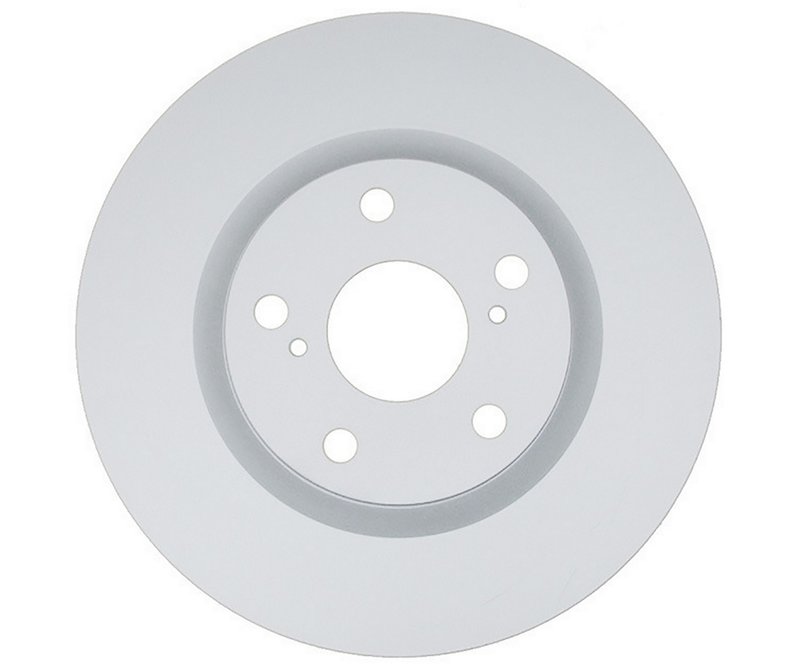

Raybestos 980973 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Specialty - Street Performance

Raybestos 980973 Disc Brake Rotor - Front

Brand Raybestos 980973
Position Front
Discard Thickness 0.984
Discard Thickness 25.000
Nominal Thickness 1.102
Nominal Thickness 28.000
Inside Diameter 189.200
Inside Diameter 7.449
Overall Height 1.945
Overall Height 49.400
Outside Diameter 11.654
Outside Diameter 296.000
Mounting Bolt Hole Quantity 5
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.441
Center Hole Diameter 62.000
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Diameter 0.566
Mounting Bolt Hole Diameter 14.400
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Specialty - Street Performance
Fits Lexus and Toyota · 27 vehicles

Vented rotor. Helps move air through the disc for more consistent braking.

Smooth surface. Provides a clean contact area for dependable pad engagement.

Street performance line. Built for Raybestos Specialty braking applications.

Cross-references Bosch 50011560, Parts Authority PRT6155 and Raybestos Brakes 980973 for the same application. See all 14.

$86.20Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $86.20
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos 980973 Front Vented Brake Rotor

The Raybestos Specialty - Street Performance 980973 is a front disc brake rotor built for select Lexus and Toyota applications. It features a vented, conventional design with a smooth surface and OE-style dimensions for direct replacement service on compatible vehicles.

Key Features

  • Front disc brake rotor for street performance use
  • Vented, conventional rotor construction
  • Smooth surface type for consistent pad contact
  • Outside diameter: 11.654 in. / 296.000 mm
  • Nominal thickness: 1.102 in. / 28.000 mm
  • Discard thickness: 0.984 in. / 25.000 mm
  • Center hole diameter: 2.441 in. / 62.000 mm
  • 5-lug / 5-bolt hole configuration
  • Mounting bolt circle diameter: 4.500 in. / 114.300 mm
  • Overall height: 1.945 in. / 49.400 mm

Street Performance Line Details

Raybestos Specialty - Street Performance focuses on brake components for drivers who want a rotor with OE-style fit and a performance-oriented application profile. The Raybestos 980973 follows the dimensional requirements needed for front brake service on select Lexus ES and Toyota sedan platforms, including Lexus ES350, Lexus ES300h, Toyota Avalon, and Toyota Camry front brake applications.

Fitment

  • Fits 2013-2018 Lexus ES300h, front
  • Fits 2011-2018 Lexus ES350, front
  • Fits 2012-2018 Toyota Avalon, front
  • Fits 2012-2017 Toyota Camry, front

Common Replacement Uses

  • Front brake rotor replacement for worn or below-spec rotors
  • Correction of brake pulsation caused by rotor thickness variation
  • Restoration of smooth braking performance after rotor scoring
  • Service replacement for vehicles with front brake vibration or noise
  • OE-style rotor replacement for Lexus ES and Toyota front brake systems

Installation Notes and Tips

Verify rotor diameter, center bore, bolt circle, and thickness before installation. Inspect pads, calipers, and hub surfaces during brake service, and measure rotor thickness against the discard specification before reuse. This part cross-references Bosch 50011560 and Parts Authority PRT6155 for the same application.

Quality Assurance

Raybestos publishes this rotor with defined dimensional specifications, including nominal and discard thickness values, to support accurate brake service on confirmed applications. Part number 980973 is listed with interchange references and OE-style fitment data for front brake replacement work.

Related reading

This part fits 27 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2018LexusES300hFrontSpecialty - Street Performance
2018LexusES350FrontSpecialty - Street Performance
2018ToyotaAvalonFrontSpecialty - Street Performance
2017LexusES300hFrontSpecialty - Street Performance
2017LexusES350FrontSpecialty - Street Performance
2017ToyotaAvalonFrontSpecialty - Street Performance
2017ToyotaCamryFrontSpecialty - Street Performance
2016LexusES300hFrontSpecialty - Street Performance
2016LexusES350FrontSpecialty - Street Performance
2016ToyotaAvalonFrontSpecialty - Street Performance
2016ToyotaCamryFrontSpecialty - Street Performance
2015LexusES300hFrontSpecialty - Street Performance
2015LexusES350FrontSpecialty - Street Performance
2015ToyotaAvalonFrontSpecialty - Street Performance
2015ToyotaCamryFrontSpecialty - Street Performance
2014LexusES300hFrontSpecialty - Street Performance
2014LexusES350FrontSpecialty - Street Performance
2014ToyotaAvalonFrontSpecialty - Street Performance
2014ToyotaCamryFrontSpecialty - Street Performance
2013LexusES300hFrontSpecialty - Street Performance
2013LexusES350FrontSpecialty - Street Performance
2013ToyotaAvalonFrontSpecialty - Street Performance
2013ToyotaCamryFrontSpecialty - Street Performance
2012LexusES350FrontSpecialty - Street Performance
2012ToyotaAvalonFrontSpecialty - Street Performance
2012ToyotaCamryFrontSpecialty - Street Performance
2011LexusES350FrontSpecialty - Street Performance
Directly replaces or cross-references 14 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 50011560Parts Authority — PRT6155Raybestos Brakes — 980973Raybestos Brakes — 980973R14-31609579615980973RGS203143443512061504351233140BD126407BD180063GP31434WS1-231609
