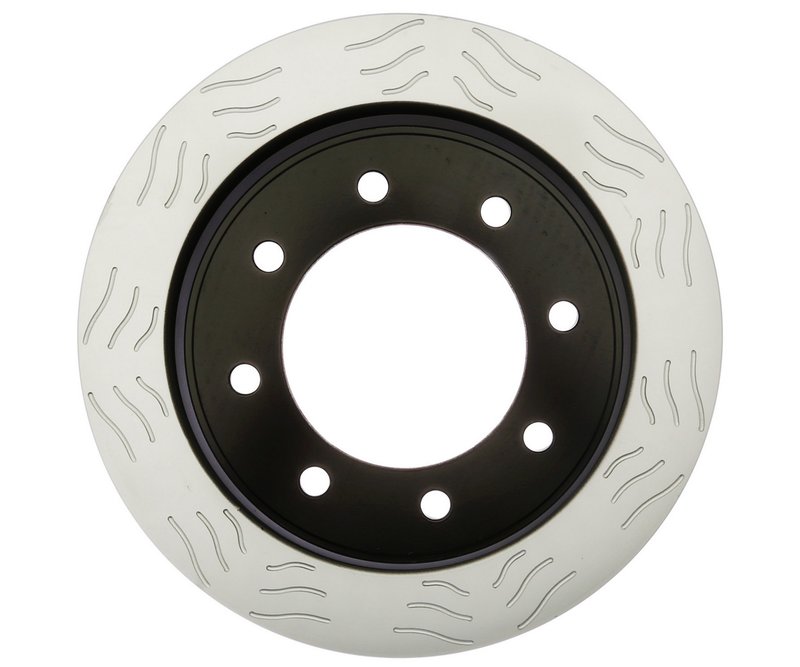

Raybestos 980974PER Disc Brake Rotor - Rear

Overview of Raybestos Disc Brake Rotor 980974PER

The Raybestos Specialty - Street Performance; S-Groove Technology disc brake rotor 980974PER is engineered for reliable braking performance on Nissan NV1500, NV2500, and NV3500 models. Designed to meet specific fitment requirements, this vented rotor ensures consistent heat dissipation and durability under street driving conditions.

• Compatible with Nissan NV1500, NV2500, NV3500
• Part number: 980974PER
• Vented disc brake rotor for improved cooling
• 8 mounting bolt holes with 6.5-inch bolt circle diameter
• Nominal thickness of 1.185 inches (30.1 mm) and discard thickness of 1.122 inches (28.5 mm)
• Overall height of 3.697 inches (93.9 mm)
• Outside diameter of 14.354 inches (364.6 mm)
• Center hole diameter of 4.835 inches (122.8 mm)

Detailed Product Specifications

This Raybestos disc brake rotor features a vented design to enhance heat dissipation during braking, reducing the risk of brake fade on Nissan NV1500, NV2500, and NV3500 vehicles. The rotor has a nominal thickness of 1.185 inches (30.1 mm) and a discard thickness of 1.122 inches (28.5 mm), indicating the minimum thickness before replacement is necessary. Its outside diameter measures 14.354 inches (364.6 mm), while the overall height is 3.697 inches (93.9 mm). The rotor includes 8 mounting bolt holes with a bolt hole circle diameter of 6.5 inches (165.1 mm) and a mounting bolt hole diameter of 0.575 inches (14.6 mm). The center hole diameter is 4.835 inches (122.8 mm), ensuring proper fitment on compatible Nissan models.

About the Specialty - Street Performance; S-Groove Technology Line

The Raybestos Specialty - Street Performance; S-Groove Technology product line focuses on delivering rotors designed for street performance applications. This line incorporates S-Groove technology, which helps maintain consistent pad contact and improves rotor surface durability. The 980974PER rotor benefits from this technology, providing Nissan NV1500, NV2500, and NV3500 owners with a rotor engineered for dependable braking under typical street driving conditions.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan NV1500, NV2500, NV3500
• Improves braking performance by reducing heat buildup during extended use
• Addresses brake pulsation caused by uneven rotor surfaces
• Restores proper rotor thickness to maintain safe braking distances
• Compatible upgrade for vented rotor requirements on specified Nissan models

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.122 inches) before installation
• Clean rotor surface and hub mounting area to prevent uneven wear
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads for wear and replace if necessary during rotor installation
• Perform a bed-in procedure after installation to optimize braking performance

Quality Assurance and Warranty

Raybestos disc brake rotors, including part number 980974PER, are manufactured to meet strict quality standards for fit, form, and function. The vented rotor design undergoes rigorous testing to ensure durability and consistent performance on Nissan NV1500, NV2500, and NV3500 vehicles. Warranty coverage details should be confirmed with the original product documentation or authorized Raybestos distributors.
