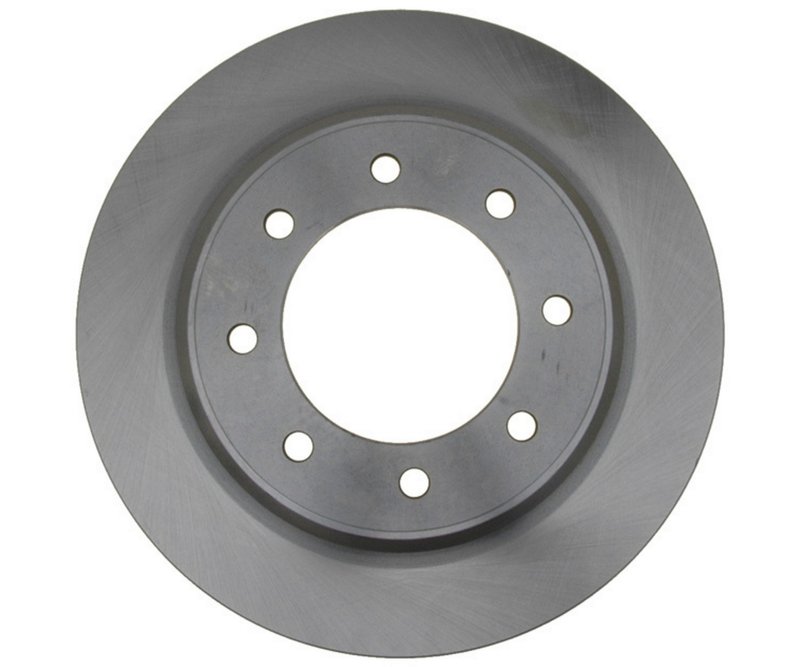

Raybestos 980974R Disc Brake Rotor - Rear
OE Quality 60-Day Returns
Raybestos
R-Line

Raybestos 980974R Disc Brake Rotor - Rear

Brand Raybestos 980974R
Position Rear
Center Hole Diameter 4.835
Center Hole Diameter 122.800
Conventional Or Drum-In-Hat Type Rotor Drum-In-Hat
Discard Thickness 1.122
Discard Thickness 28.500
Inside Diameter 10.496
Inside Diameter 266.600
Mounting Bolt Hole Circle Diameter 6.500
Mounting Bolt Hole Circle Diameter 165.100
Mounting Bolt Hole Diameter 6.500
Mounting Bolt Hole Diameter 165.100
Mounting Bolt Hole Quantity 8
Nominal Thickness 1.185
Nominal Thickness 30.100
Outside Diameter 14.354
Outside Diameter 364.600
Overall Height 3.697
Overall Height 93.900
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 8
Surface Type Smooth
Product line R-Line
Fits Nissan · 30 vehicles

Vented rotor. Smooth surface helps promote consistent braking performance.

Drum-in-hat design. Combines rotor and parking brake functions in one part.

R-Line part. Raybestos line built for dependable everyday replacement.

Cross-references Centric Parts 120.42109, Centric Parts 121.42109 and Centric Parts 320.42109 for the same application. See all 31.

$78.34Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $78.34
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Rear Brake Rotor for Nissan NV Vans

The Raybestos R-Line 980974R is a rear disc brake rotor built for 2012-2021 Nissan NV1500, NV2500, and NV3500 applications. It uses a vented, drum-in-hat design with a smooth surface to support consistent rear braking performance on full-size Nissan cargo and passenger vans.

Key Features

  • Raybestos R-Line brake rotor, part number 980974R
  • Fits rear brake applications on 2012-2021 Nissan NV1500, NV2500, and NV3500
  • Vented rotor construction with drum-in-hat configuration
  • Smooth friction surface for even pad contact
  • Outside diameter: 14.354 in. (364.600 mm)
  • Nominal thickness: 1.185 in. (30.100 mm)
  • Discard thickness: 1.122 in. (28.500 mm)
  • Overall height: 3.697 in. (93.900 mm)
  • Center hole diameter: 4.835 in. (122.800 mm)
  • 8 mounting bolt holes and 8 stud/lug holes

Product Details

Raybestos R-Line rotors are positioned for direct replacement use where OE-style dimensions and fit are required. This 980974R rear rotor matches the listed Nissan NV1500, NV2500, and NV3500 rear brake applications and uses the specified vented, drum-in-hat layout with an 8-lug pattern. The smooth surface and dimensional specs help maintain proper rotor-to-pad contact and correct brake assembly fit on the rear axle.

This part cross-references Monroe Shocks & Struts 5658 for the same application.

What It Helps Address

  • Rear brake pulsation caused by rotor wear or thickness variation
  • Brake noise related to uneven rotor surfaces
  • Reduced braking consistency from worn rear rotors
  • Service replacement needs on Nissan NV1500, NV2500, and NV3500 rear brakes
  • Fitment issues when replacing a drum-in-hat rear rotor with the correct OE-style dimensions

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and drum-in-hat configuration before installation. Clean the hub mounting surface thoroughly and inspect rear pads, caliper hardware, and parking brake components during service. Confirm the rotor meets the vehicle’s rear application before final assembly on 2012-2021 Nissan NV1500, NV2500, or NV3500 models.

Quality Assurance

Raybestos R-Line parts are built to meet the dimensional and application requirements listed for this rotor. The 980974R is specified for direct-fit rear brake service on the covered Nissan NV vans and is supported by the brand’s brake component cataloging and interchange references.

Related reading

This part fits 30 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2021NissanNV1500RearR-Line
2021NissanNV2500RearR-Line
2021NissanNV3500RearR-Line
2020NissanNV1500RearR-Line
2020NissanNV2500RearR-Line
2020NissanNV3500RearR-Line
2019NissanNV1500RearR-Line
2019NissanNV2500RearR-Line
2019NissanNV3500RearR-Line
2018NissanNV1500RearR-Line
2018NissanNV2500RearR-Line
2018NissanNV3500RearR-Line
2017NissanNV1500RearR-Line
2017NissanNV2500RearR-Line
2017NissanNV3500RearR-Line
2016NissanNV1500RearR-Line
2016NissanNV2500RearR-Line
2016NissanNV3500RearR-Line
2015NissanNV1500RearR-Line
2015NissanNV2500RearR-Line
2015NissanNV3500RearR-Line
2014NissanNV1500RearR-Line
2014NissanNV2500RearR-Line
2014NissanNV3500RearR-Line
2013NissanNV1500RearR-Line
2013NissanNV2500RearR-Line
2013NissanNV3500RearR-Line
2012NissanNV1500RearR-Line
2012NissanNV2500RearR-Line
2012NissanNV3500RearR-Line
Directly replaces or cross-references 31 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 120.42109Centric Parts — 121.42109Centric Parts — 320.42109DuraGo — BR901110Dynamic Friction Company — 600-67101Monroe Shocks & Struts — 5658Parts Authority — PRT6197PowerStop — JBR1572EVCPromax — 14-5658Raybestos Brakes — 980974Raybestos Brakes — 980974FZNRaybestos Brakes — 980974RStopTech — 126.42109SLStopTech — 126.42109SR127.42109L127.42109R128.42109L128.42109R604.671016012060120DG432061PA1A432061PA1B980974RGSAX901110BD180485BR5658R1110R42109YH335274YH335274P
