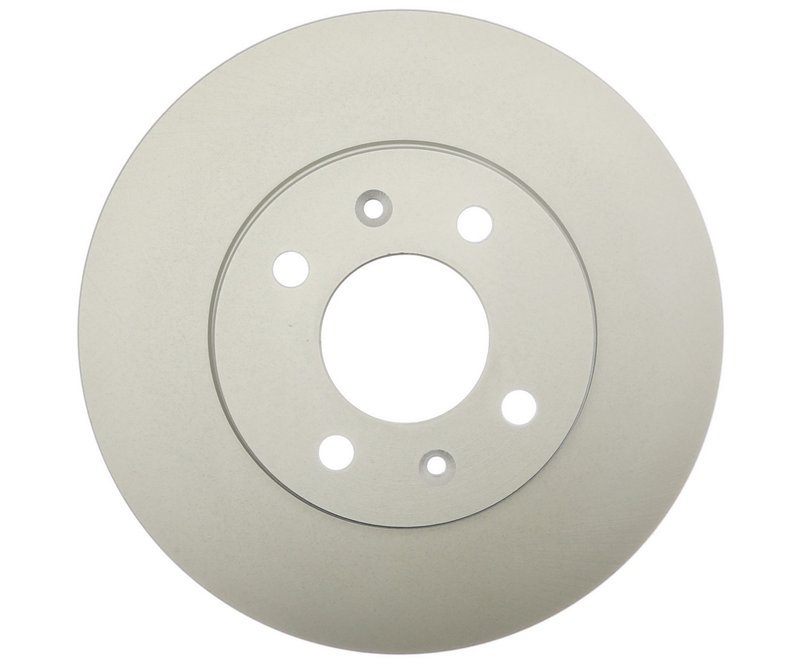

Raybestos 980978FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Disc Brake Rotor

The Raybestos Element3; Coated Rotor 980978FZN is engineered for reliable braking performance on select Dodge, Hyundai, and Kia vehicles. Designed as a vented disc brake rotor, it offers consistent heat dissipation and smooth braking for models like the Hyundai Accent, Kia Rio, and Dodge Attitude.

• Part Number: 980978FZN
• Brand Line: Element3; Coated Rotor
• Vented disc brake rotor with smooth surface
• Nominal thickness: 0.866 inches (22.000 mm)
• Discard thickness: 0.787 inches (20.000 mm)
• Outside diameter: 10.071 inches (255.800 mm)
• Inside diameter: 6.024 inches (153.000 mm)
• Mounting bolt hole quantity: 4 with 0.487 inch (12.350 mm) diameter
• Center hole diameter: 2.451 inches (62.250 mm)
• Overall height: 1.720 inches (43.700 mm)
• Conventional rotor type with drum-in-hat design

Detailed Product Description

This Raybestos disc brake rotor 980978FZN is a vented rotor designed to improve heat dissipation during braking, reducing the risk of brake fade on compatible vehicles such as the Dodge Attitude, Hyundai Accent, and Kia Rio. The smooth surface finish ensures consistent pad contact and braking performance. With a nominal thickness of 0.866 inches and a discard thickness of 0.787 inches, this rotor meets precise wear limits to maintain safety and performance. The rotor features a conventional drum-in-hat design and includes four mounting bolt holes with a 3.937 inch (100.000 mm) bolt circle diameter, ensuring proper fitment and secure installation.

Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos focuses on corrosion resistance and durability through a protective coating process. This coating helps extend rotor life by reducing rust and corrosion, which is especially beneficial for vehicles exposed to harsh weather conditions. The 980978FZN rotor benefits from this coating, providing a longer-lasting braking surface for Dodge, Hyundai, and Kia models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge Attitude, Hyundai Accent, and Kia Rio
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking consistency by reducing heat-related fade
• Prevents rust buildup that can lead to rotor failure
• Restores proper rotor thickness for safe braking performance

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 0.787 inches
• Ensure mounting bolt holes align with vehicle specifications (4 holes, 0.487 inch diameter)
• Clean rotor surface and hub mounting area to prevent uneven wear
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Raybestos disc brake rotors, including the Element3; Coated Rotor 980978FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating enhances corrosion resistance, contributing to the rotor's durability. While specific warranty details vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
