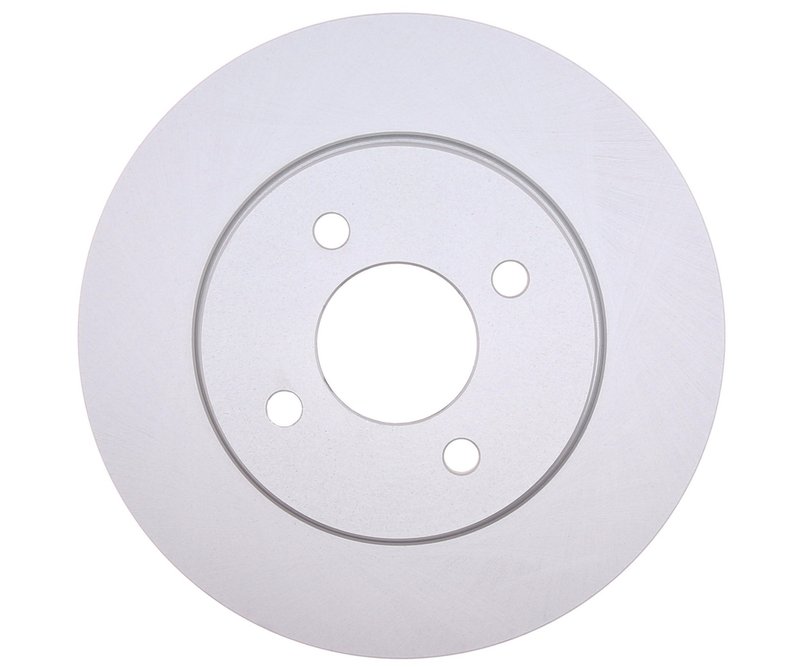

Raybestos 980981FZN Disc Brake Rotor - Front
| Brand | Raybestos 980981FZN |
|---|---|
| Position | Front |
| Discard Thickness | 0.787 |
| Discard Thickness | 20.000 |
| Nominal Thickness | 0.866 |
| Nominal Thickness | 22.000 |
| Inside Diameter | 163.000 |
| Inside Diameter | 6.417 |
| Overall Height | 1.654 |
| Overall Height | 42.000 |
| Outside Diameter | 10.236 |
| Outside Diameter | 260.000 |
| Mounting Bolt Hole Quantity | 4 |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.406 |
| Center Hole Diameter | 61.100 |
| Mounting Bolt Hole Circle Diameter | 100.000 |
| Mounting Bolt Hole Circle Diameter | 3.937 |
| Mounting Bolt Hole Diameter | 0.508 |
| Mounting Bolt Hole Diameter | 12.900 |
| Stud/Lug Hole Quantity | 4 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Product line | Element3; Coated Rotor |
| Fits | Nissan · 18 vehicles |
Coated rotor. Element3 finish helps resist corrosion for cleaner appearance and longer service life.
Vented design. Promotes airflow through the rotor for more consistent braking performance.
Smooth surface. Provides even pad contact for quiet, predictable stopping.
Cross-references Beck/Arnley 083-3554, Centric Parts 120.42116 and Centric Parts 121.42116 for the same application. See all 35.
Raybestos Element3 Coated Front Rotor
Raybestos Element3 Coated Rotor 980981FZN is a front disc brake rotor for select Nissan compact models. It is built as a vented, conventional rotor with a smooth surface and a corrosion-resistant coated finish for service on the front axle.
Key Features
- Part number: 980981FZN
- Raybestos Element3; Coated Rotor line
- Front disc brake rotor application
- Vented, conventional rotor design
- Smooth surface type
- Outside diameter: 10.236 in. / 260.000 mm
- Nominal thickness: 0.866 in. / 22.000 mm
- Discard thickness: 0.787 in. / 20.000 mm
- Center hole diameter: 2.406 in. / 61.100 mm
- Mounting bolt hole circle diameter: 3.937 in. / 100.000 mm
- Mounting bolt hole quantity: 4
Product Details
The Raybestos Element3 coated rotor line is focused on corrosion protection and consistent brake service for everyday driving. This 980981FZN rotor uses a vented construction to help manage heat at the front wheels, while the coated finish helps protect exposed surfaces from rust. It is a direct-fit style rotor for 2012-2019 Nissan Versa front, 2014-2019 Nissan Versa Note front, and 2014-2017 Nissan Note front applications. This part cross-references Beck/Arnley 083-3554 and DuraGo BR901112 for the same application.
Common Brake Issues This Rotor Can Address
- Front brake pulsation caused by rotor wear or thickness variation
- Brake noise related to worn or uneven rotor surfaces
- Visible rotor corrosion on exposed braking surfaces
- Reduced braking consistency from heat buildup in front brake service
- Service replacement for worn Nissan Versa, Versa Note, or Note front rotors
Installation Notes and Tips
Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s brake bedding procedure for proper pad and rotor break-in.
Quality Assurance
Raybestos manufactures this rotor as part of the Element3 coated rotor line for front brake service on select Nissan Versa, Versa Note, and Note models. Confirm fitment by year, model, and front position before ordering.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Nissan | Versa | — | — | Front | Element3; Coated Rotor |
| 2019 | Nissan | Versa Note | — | — | Front | Element3; Coated Rotor |
| 2018 | Nissan | Versa | — | — | Front | Element3; Coated Rotor |
| 2018 | Nissan | Versa Note | — | — | Front | Element3; Coated Rotor |
| 2017 | Nissan | Note | — | — | Front | Element3; Coated Rotor |
| 2017 | Nissan | Versa | — | — | Front | Element3; Coated Rotor |
| 2017 | Nissan | Versa Note | — | — | Front | Element3; Coated Rotor |
| 2016 | Nissan | Note | — | — | Front | Element3; Coated Rotor |
| 2016 | Nissan | Versa | — | — | Front | Element3; Coated Rotor |
| 2016 | Nissan | Versa Note | — | — | Front | Element3; Coated Rotor |
| 2015 | Nissan | Note | — | — | Front | Element3; Coated Rotor |
| 2015 | Nissan | Versa | — | — | Front | Element3; Coated Rotor |
| 2015 | Nissan | Versa Note | — | — | Front | Element3; Coated Rotor |
| 2014 | Nissan | Note | — | — | Front | Element3; Coated Rotor |
| 2014 | Nissan | Versa | — | — | Front | Element3; Coated Rotor |
| 2014 | Nissan | Versa Note | — | — | Front | Element3; Coated Rotor |
| 2013 | Nissan | Versa | — | — | Front | Element3; Coated Rotor |
| 2012 | Nissan | Versa | 1.6L | L4 | Front | Element3; Coated Rotor |
