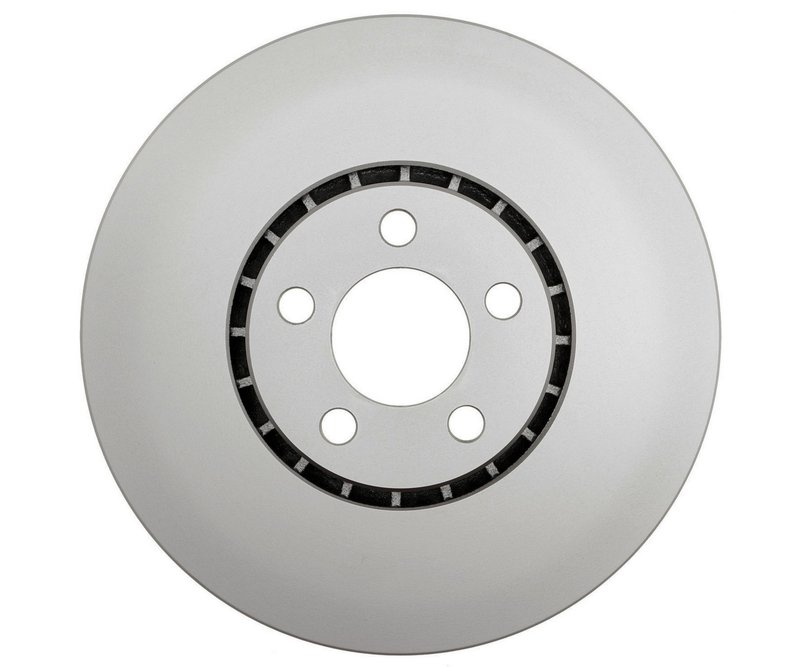

Raybestos 981050FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Rotor 981050FZN

The Raybestos Element3; Coated Rotor 981050FZN is engineered for reliable braking performance on Volvo XC90 models. This vented disc brake rotor features precise dimensions and a smooth surface to ensure consistent stopping power and durability.

• Compatible with Volvo XC90 vehicles
• Vented disc brake rotor design for improved heat dissipation
• Nominal thickness of 1.181 inches (30.000 mm) and discard thickness of 1.063 inches (27.000 mm)
• Overall height of 2.017 inches (51.200 mm)
• Outside diameter of 12.913 inches (328.000 mm)
• Mounting bolt hole quantity: 5 with 0.661 inch (16.800 mm) diameter holes
• Smooth surface type for consistent pad contact
• Center hole diameter of 2.677 inches (68.000 mm)

Detailed Product Specifications

This Raybestos disc brake rotor is designed with a vented construction to enhance cooling during braking, reducing the risk of brake fade. The rotor’s nominal thickness is 1.181 inches (30.000 mm), with a discard thickness of 1.063 inches (27.000 mm), indicating when replacement is necessary to maintain safe braking performance. The overall height measures 2.017 inches (51.200 mm), and the outside diameter is 12.913 inches (328.000 mm), matching the exact fitment requirements for Volvo XC90 models. The rotor features five mounting bolt holes with a diameter of 0.661 inches (16.800 mm) arranged on a 4.252 inch (108.000 mm) bolt circle diameter, ensuring secure installation. The smooth surface type promotes even brake pad wear and consistent braking response.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos offers rotors with a protective coating designed to resist corrosion and extend rotor life. This coating helps maintain rotor integrity and appearance over time, especially in environments prone to moisture and road salt exposure. The 981050FZN rotor benefits from this coating, providing a durable braking component tailored for Volvo XC90 vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo XC90
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking performance by restoring proper rotor thickness
• Helps reduce brake fade through vented rotor design
• Prevents corrosion-related rotor damage with protective coating

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.063 inches) before installation
• Clean mounting surface and hub to prevent rotor runout
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads for wear and replace if necessary during rotor installation
• Perform a bed-in procedure after installation to optimize braking performance

Quality Assurance and Warranty

Raybestos disc brake rotors undergo rigorous quality control to meet OEM standards for fit, form, and function. The Element3; Coated Rotor 981050FZN is manufactured to provide consistent braking performance and durability. Warranty coverage details should be confirmed with the product documentation or manufacturer.
