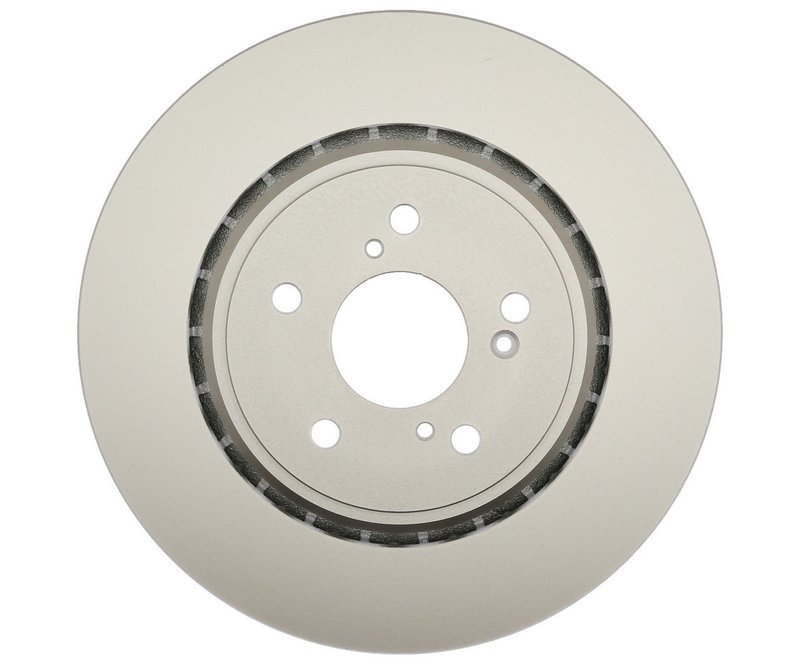

Raybestos 981063 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Specialty - Street Performance

Raybestos 981063 Disc Brake Rotor - Front

Brand Raybestos 981063
Position Front
Discard Thickness 1.024
Discard Thickness 26.000
Nominal Thickness 1.102
Nominal Thickness 28.000
Inside Diameter 210.500
Inside Diameter 8.287
Overall Height 1.858
Overall Height 47.200
Outside Diameter 12.598
Outside Diameter 320.000
Mounting Bolt Hole Quantity 5
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.520
Center Hole Diameter 64.000
Mounting Bolt Hole Circle Diameter 114.200
Mounting Bolt Hole Circle Diameter 4.496
Mounting Bolt Hole Diameter 0.496
Mounting Bolt Hole Diameter 12.600
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Specialty - Street Performance
Fits Acura · 9 vehicles

Vented rotor. Smooth surface helps promote consistent braking performance.

Conventional design. A straightforward disc brake rotor for dependable replacement.

Street Performance line. Built for drivers who want a more spirited brake feel.

Cross-references Centric Parts 120.40090, Centric Parts 121.40090 and Centric Parts 320.40090 for the same application. See all 29.

$114.92Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $114.92
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos 981063 Front Disc Brake Rotor

The Raybestos 981063 is a front vented disc brake rotor for select Acura TLX and Acura MDX applications. Built for street performance use, it combines a smooth surface with OE-style dimensions to support consistent brake pad contact and reliable rotor fitment.

Key Features

  • Front disc brake rotor for select Acura applications
  • Vented rotor design for improved heat management
  • Smooth surface type for even pad contact
  • Conventional rotor construction
  • 5-lug mounting pattern with 114.2 mm bolt circle
  • Outside diameter: 320.0 mm (12.598 in.)
  • Nominal thickness: 28.0 mm (1.102 in.)
  • Discard thickness: 26.0 mm (1.024 in.)
  • Center hole diameter: 64.0 mm (2.520 in.)

Product Details

Raybestos Specialty - Street Performance rotors are positioned for drivers who want a front brake rotor with OE-style fitment and performance-focused dimensions. The 981063 uses a vented, conventional design with a 320 mm outside diameter, 28 mm nominal thickness, and 47.2 mm overall height to match the specified front brake setup on the Acura TLX and Acura MDX. This part number, 981063, is also referenced across multiple aftermarket catalogs for the same application.

This part cross-references DuraGo BR901318 and Wagner Brake BD180697E for the same application.

Vehicle Fitment

  • Fits 2015-2020 Acura TLX, front
  • Fits 2014-2016 Acura MDX, front

What It Helps Address

  • Brake pulsation from a worn or uneven front rotor
  • Reduced braking consistency caused by rotor wear beyond discard thickness
  • Noise or vibration related to rotor surface condition
  • Fitment issues when replacing a front rotor on Acura TLX or Acura MDX models
  • Heat buildup in street-driven braking conditions

Installation Notes and Tips

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent lateral runout and brake pedal pulsation. Always inspect pads, calipers, and hardware condition during rotor replacement, and follow the vehicle manufacturer’s service procedures for torque and bedding.

Quality Assurance

Raybestos manufactures this rotor to published dimensional specifications for the listed Acura TLX and Acura MDX front applications. Confirm part number 981063 against your vehicle’s brake system before ordering.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2020AcuraTLXFrontSpecialty - Street Performance
2019AcuraTLXFrontSpecialty - Street Performance
2018AcuraTLXFrontSpecialty - Street Performance
2017AcuraTLXFrontSpecialty - Street Performance
2016AcuraMDXFrontSpecialty - Street Performance
2016AcuraTLXFrontSpecialty - Street Performance
2015AcuraMDXFrontSpecialty - Street Performance
2015AcuraTLXFrontSpecialty - Street Performance
2014AcuraMDXFrontSpecialty - Street Performance
Directly replaces or cross-references 29 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 120.40090Centric Parts — 121.40090Centric Parts — 320.40090DuraGo — BR901318Dynamic Friction Company — 600-58026Dynamic Friction Company — 604-58026PowerStop — JBR1589EVCPromax — 14-610010Raybestos Brakes — 981063Raybestos Brakes — 981063FZNRaybestos Brakes — 981063RStopTech — 120.40090CRYStopTech — 126.40090SLStopTech — 126.40090SRStopTech — 127.40090LStopTech — 127.40090RStopTech — 128.40090LStopTech — 128.40090RStopTech — 227.40090LStopTech — 227.40090RWagner Brake — BD180697E45251TZ3A0045251TZ5A0045251TZ5A0174017921673RGS2901318AX901318R1318
