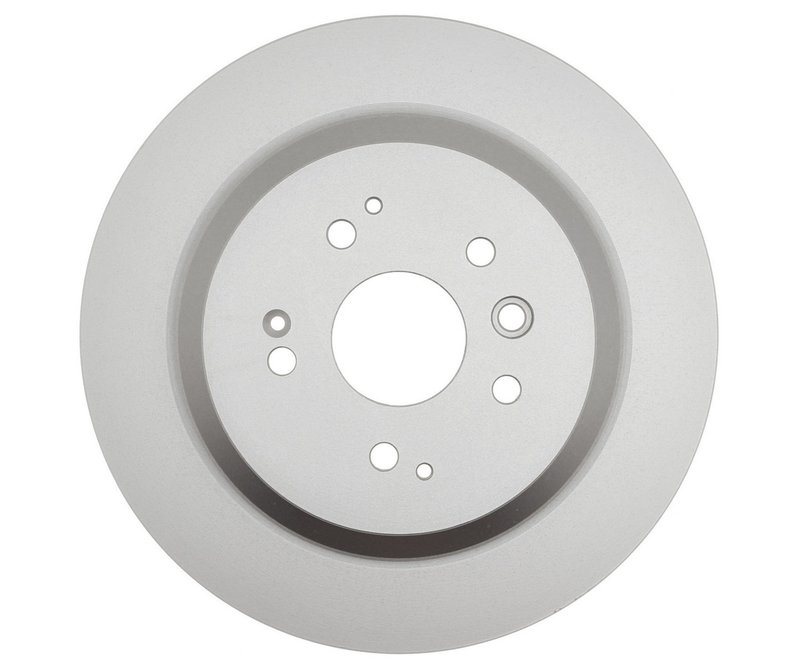

Raybestos 981064FZN Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Acura MDX

The Raybestos Element3; Coated Rotor 981064FZN is engineered to provide consistent braking performance for your Acura MDX. Designed as a solid, conventional disc brake rotor, it meets precise specifications to ensure proper fit and function.

• Compatible with Acura MDX models
• Part number 981064FZN for accurate identification
• Solid disc brake rotor with conventional drum-in-hat design
• Overall height: 2.331 inches (59.2 mm)
• Outside diameter: 12.982 inches (329.75 mm)
• Mounting bolt hole quantity: 5 with 4.5 inch (114.3 mm) bolt circle diameter
• Nominal thickness: 0.430 inches (10.9 mm), discard thickness: 0.350 inches (8.9 mm)

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line from Raybestos focuses on durability and corrosion resistance through a protective coating. This coating helps extend rotor life by reducing rust and wear, which is particularly beneficial for vehicles like the Acura MDX that may encounter varied driving conditions. The 981064FZN rotor maintains the structural integrity and braking efficiency expected from Raybestos products.

Technical Specifications and Features

This solid rotor features a conventional drum-in-hat design, suitable for the Acura MDX's braking system. The rotor's nominal thickness of 0.430 inches (10.9 mm) ensures adequate material for heat dissipation and wear resistance, while the discard thickness of 0.350 inches (8.9 mm) indicates the minimum safe thickness before replacement is necessary. The 5 mounting bolt holes arranged on a 4.5 inch (114.3 mm) bolt circle diameter provide secure attachment to the vehicle hub. The overall height of 2.331 inches (59.2 mm) and outside diameter of 12.982 inches (329.75 mm) are engineered to match factory specifications for proper fitment and performance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Acura MDX
• Addresses brake pulsation and vibration issues
• Helps restore braking efficiency and pedal feel
• Prevents rotor corrosion and surface rust buildup
• Suitable for routine maintenance and brake system repairs

Installation Notes and Tips

When installing the Raybestos 981064FZN rotor on an Acura MDX, ensure the mounting surface is clean and free of debris. Verify the rotor thickness before installation to confirm it meets or exceeds the discard thickness. Use proper torque specifications for the 5 mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor line to meet or exceed OEM standards. The 981064FZN rotor undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship, providing confidence in the product's reliability for Acura MDX owners.
