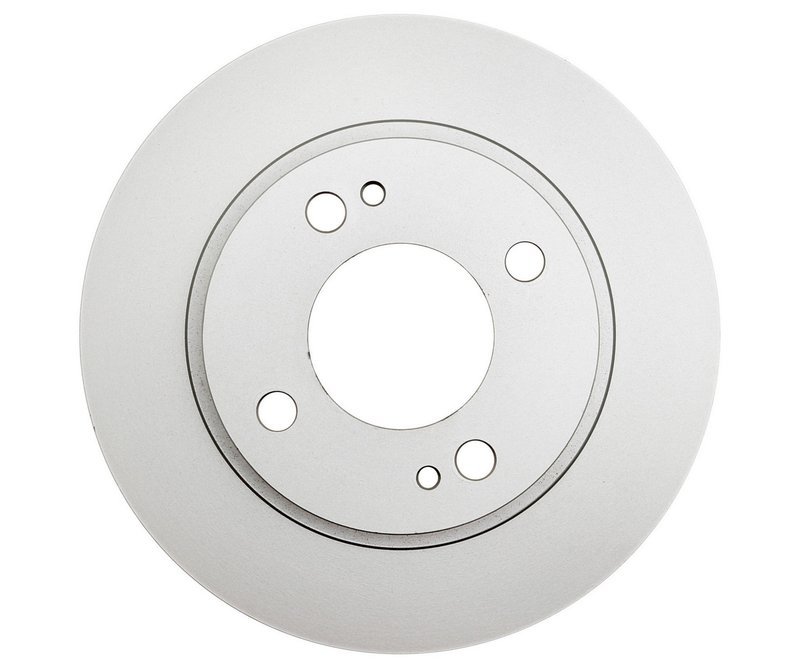

Raybestos 981067FZN Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Raybestos Element 3

Raybestos 981067FZN Disc Brake Rotor - Front

Brand Raybestos 981067FZN
Position Front
Discard Thickness 0.787
Discard Thickness 20.000
Nominal Thickness 0.866
Nominal Thickness 22.000
Inside Diameter 170.200
Inside Diameter 6.701
Overall Height 1.507
Overall Height 38.250
Outside Diameter 229.200
Outside Diameter 9.024
Mounting Bolt Hole Quantity 5
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.526
Center Hole Diameter 64.150
Mounting Bolt Hole Circle Diameter 100.000
Mounting Bolt Hole Circle Diameter 3.937
Mounting Bolt Hole Diameter 0.591
Mounting Bolt Hole Diameter 15.000
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Raybestos Element 3
Fits Mitsubishi · 6 vehicles

Coated rotor. Helps resist corrosion for longer-lasting appearance and service life.

Vented design. Promotes airflow to help manage heat during braking.

Smooth surface. Provides consistent contact for dependable braking performance.

Cross-references Centric Parts 120.46079, Centric Parts 121.46079 and Centric Parts 320.46079 for the same application. See all 24.

$41.41Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $41.41
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos Element3 Front Rotor for Mirage

The Raybestos Element3 Coated Rotor 981067FZN is a front disc brake rotor built for 2014-2016 and 2017-2019 Mitsubishi Mirage applications. It features a vented, smooth-surface design with coated protection for service in everyday driving conditions.

Key Features

  • Part number: 981067FZN
  • Raybestos Element3; Coated Rotor product line
  • Front disc brake rotor for Mitsubishi Mirage
  • Vented rotor construction
  • Smooth surface type
  • Outside diameter: 229.200 mm / 9.024 in
  • Nominal thickness: 22.000 mm / 0.866 in
  • Discard thickness: 20.000 mm / 0.787 in
  • Center hole diameter: 64.150 mm / 2.526 in
  • 5-bolt mounting pattern with 100.000 mm / 3.937 in bolt circle diameter

Product Details

Raybestos Element3 coated rotors are built around a coated braking surface package that helps maintain a cleaner rotor appearance and supports consistent service life in normal brake replacement intervals. This rotor uses a vented, conventional drum-in-hat style rotor design with a smooth face, 5 mounting bolt holes, and a 5-lug pattern sized for the Mitsubishi Mirage front axle. The 981067FZN part number is also listed among Raybestos Brakes interchange references for the same application.

Compatible With 2014-2016 Mitsubishi Mirage, front and 2017-2019 Mitsubishi Mirage, front. The Raybestos 981067FZN is a direct-fit front rotor choice for Mirage owners searching for a coated replacement rotor with the correct diameter, thickness, and hub dimensions.

Common Brake Service Issues

  • Brake pulsation from rotor wear or thickness variation
  • Noise caused by uneven rotor surfaces
  • Reduced braking consistency from worn front rotors
  • Corrosion on exposed rotor surfaces
  • Service replacement for rotors at or near discard thickness

Installation Notes

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. Confirm the rotor meets the vehicle’s front application and replace in pairs when performing axle-level brake work.

Quality Assurance

Raybestos is a recognized brake parts brand with a dedicated Element3 coated rotor line for replacement brake service. This rotor is specified with published dimensional data to support accurate fitment on listed Mitsubishi Mirage front applications.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2019MitsubishiMirageFrontRaybestos Element 3
2018MitsubishiMirageFrontRaybestos Element 3
2017MitsubishiMirageFrontRaybestos Element 3
2016MitsubishiMirageFrontElement3; Coated Rotor
2015MitsubishiMirageFrontElement3; Coated Rotor
2014MitsubishiMirageFrontElement3; Coated Rotor
Directly replaces or cross-references 24 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 120.46079Centric Parts — 121.46079Centric Parts — 320.46079DuraGo — BR901452Dynamic Friction Company — 604-72045Promax — 14-610028Raybestos Brakes — 981067Raybestos Brakes — 981067FZNRaybestos Brakes — 981067RStopTech — 126.46079SLStopTech — 126.46079SRStopTech — 127.46079LStopTech — 127.46079RStopTech — 128.46079L128.46079R4615A1057750777507DG77507DL475700921487RGSAX901452R1452YH508494P
